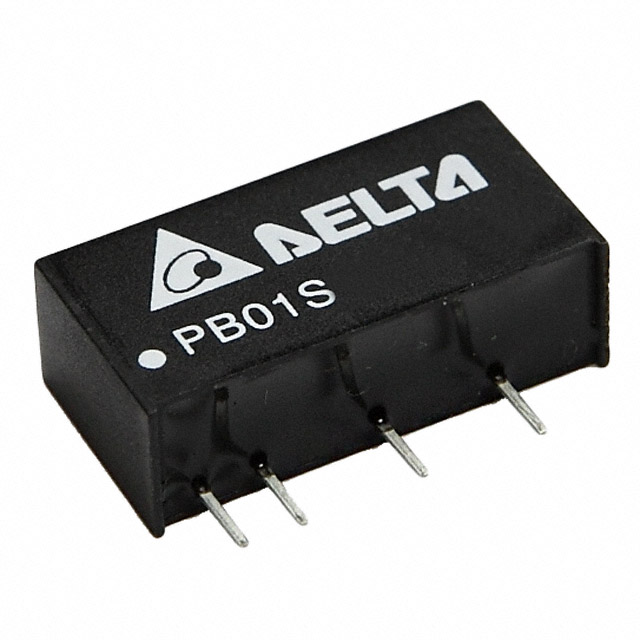

PB01S Series
Manufacturer: Delta Electronics
Beta
⌘K
DC DC CONVERTER 5V 1W
| Part | Package / Case | Mounting Type | Voltage - Isolation | Number of Outputs | Type | Efficiency | Voltage - Input (Max) [Max] | Voltage - Input (Min) [Min] | Applications | Operating Temperature [Max] | Operating Temperature [Min] | Current - Output (Max) [Max] | Voltage - Output 1 | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Delta Electronics | 5-SIP Module | Through Hole | 1000 V | 1 | Isolated Module | 71 % | 26.4 V | 21.6 V | Medical | 85 °C | -40 C | 200 mA | 5 V | 0.4 " | 0.24 " | 0.77 in | 6 mm | 10.2 mm | 19.6 mm | SCP |
Delta Electronics | 5-SIP Module | Through Hole | 1000 V | 1 | Isolated Module | 80 % | 13.2 V | 10.8 V | Medical | 85 °C | -40 C | 84 mA | 12 V | 0.4 " | 0.24 " | 0.77 in | 6 mm | 10.2 mm | 19.6 mm | SCP |
Delta Electronics | 5-SIP Module | Through Hole | 1000 V | 1 | Isolated Module | 73 % | 5.5 V | 4.5 V | Medical | 85 °C | -40 C | 260 mA | 3.3 V | 0.4 " | 0.24 " | 0.77 in | 6 mm | 10.2 mm | 19.6 mm | SCP |
Delta Electronics | 5-SIP Module | Through Hole | 1000 V | 1 | Isolated Module | 78 % | 5.5 V | 4.5 V | Medical | 85 °C | -40 C | 67 mA | 15 V | 0.4 " | 0.24 " | 0.77 in | 6 mm | 10.2 mm | 19.6 mm | SCP |
