REC3-S_DR Series

Isolated DC/DC Converters - SMD 3W DC/DC 2kV REG 2:1 9-18Vin 3.3Vout

Manufacturer: RECOM Power

Catalog

Isolated DC/DC Converters - SMD 3W DC/DC 2kV REG 2:1 9-18Vin 3.3Vout

Catalog

Isolated DC/DC Converters - SMD 3W DC/DC 2kV REG 2:1 9-18Vin 3.3Vout

Part	Features	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Operating Temperature [Min]	Operating Temperature [Max]	Number of Outputs	Package / Case	Voltage - Isolation	Applications	Voltage - Input (Min) [Min]	Voltage - Output 2	Current - Output (Max)	Voltage - Output 1	Efficiency	Voltage - Input (Max) [Max]	Mounting Type	Type	Power (Watts)	Package / Case	Current - Output (Max)	Current - Output (Max)	Current - Output (Max) [Max]

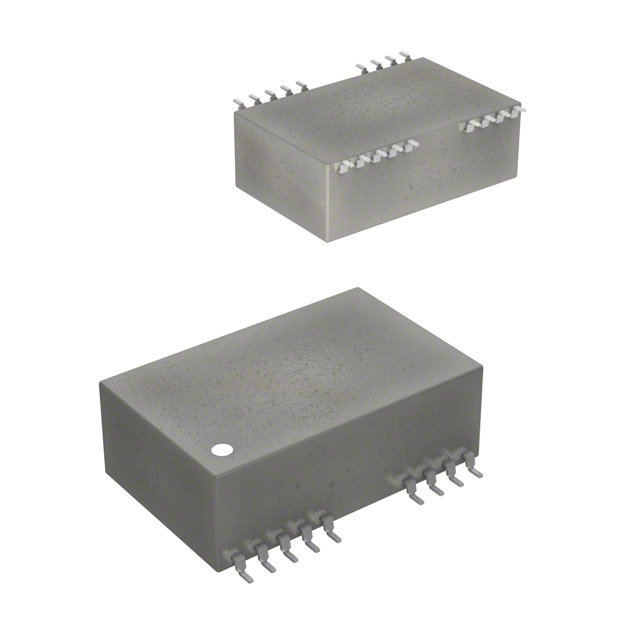

RECOM Power REC3-1205DR/H1/SMD-R	SCP	11.2 mm	0.8 in	20.3 mm	0.44 "	1.26 in	32 mm	-40 °C	80 C	2	24-SMD Module 18 Leads	1000 V	ITE (Commercial)	10.8 V	-5 V	300 mA	5 V	75 %	13.2 V	Surface Mount	Isolated Module	3 W

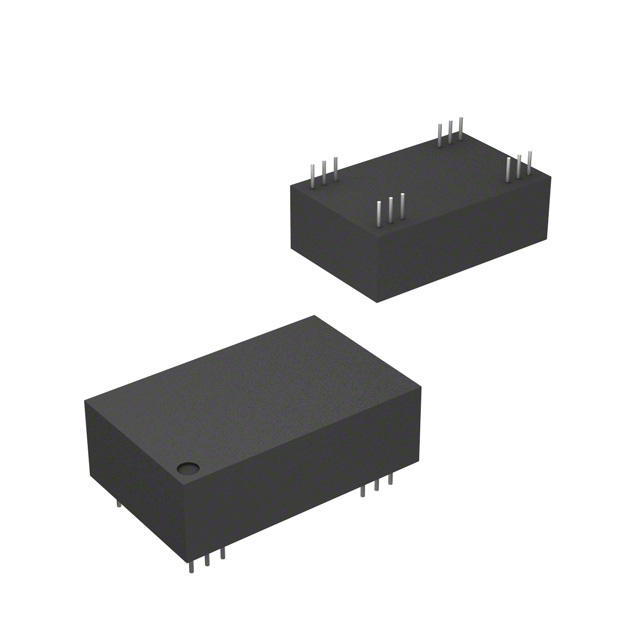

RECOM Power REC3-0505DR/H1	SCP	10.2 mm	0.8 in	20.3 mm	0.4 "	1.26 in	32 mm	-40 °C	80 C	2	24-DIP Module	1000 V	ITE (Commercial)	4.5 V	-5 V	300 mA	5 V	75 %	5.5 V	Through Hole	Isolated Module	3 W	12 Leads
RECOM Power REC3-2412DR/H1	SCP	10.2 mm	0.8 in	20.3 mm	0.4 "	1.26 in	32 mm	-40 °C	80 C	2	24-DIP Module	1000 V	ITE (Commercial)	21.6 V	-12 V		12 V	75 %	26.4 V	Through Hole	Isolated Module	3 W	12 Leads	125 mA	125 mA
RECOM Power REC3-1205DR/H1M/SMD	SCP	11.2 mm	0.8 in	20.3 mm	0.44 "	1.26 in	32 mm	-40 °C	80 C	2	24-SMD Module 18 Leads	1000 V	ITE (Commercial)	10.8 V	-5 V	300 mA	5 V	75 %	13.2 V	Surface Mount	Isolated Module	3 W
RECOM Power REC3-2415DR/H1	SCP	10.2 mm	0.8 in	20.3 mm	0.4 "	1.26 in	32 mm	-40 °C	80 C	2	24-DIP Module	1000 V	ITE (Commercial)	20.4 V	-15 V	100 mA	15 V	75 %	27.6 V	Through Hole	Isolated Module	3 W	12 Leads	100 mA
RECOM Power REC3-0515SR/H1/SMD	SCP	11.2 mm	0.8 in	20.3 mm	0.44 "	1.26 in	32 mm	-40 °C	80 C	1	24-SMD Module 18 Leads	1000 V	ITE (Commercial)	4.5 V			15 V	65 %	5.5 V	Surface Mount	Isolated Module	3 W				200 mA
RECOM Power REC3-0505DRW/H2/A/M/SMD	SCP	11.2 mm	0.78 in	19.9 mm	0.44 "	1.26 in	32 mm	-40 °C	80 C	2	24-SMD Module 18 Leads	2000 V	ITE (Commercial)	4.5 V	-5 V	300 mA	5 V	83 %	9 V	Surface Mount	Isolated Module	3 W
RECOM Power REC3-0505DRW/H4/C/SMD-R	SCP	11.2 mm	0.78 in	19.9 mm	0.44 "	1.26 in	32 mm	-40 °C	80 C	2	24-SMD Module 18 Leads	4000 V	ITE (Commercial) Medical	4.5 V	-5 V	300 mA	5 V	83 %	9 V	Surface Mount	Isolated Module	3 W
RECOM Power REC3-2415SR/H1	SCP	10.2 mm	0.8 in	20.3 mm	0.4 "	1.26 in	32 mm	-40 °C	80 C	1	24-DIP Module	1000 V	ITE (Commercial)	21.6 V			15 V	65 %	26.4 V	Through Hole	Isolated Module	3 W	12 Leads			200 mA
RECOM Power REC3-0505DR/H1M/SMD	SCP	11.2 mm	0.8 in	20.3 mm	0.44 "	1.26 in	32 mm	-40 °C	80 C	2	24-SMD Module 18 Leads	1000 V	ITE (Commercial)	4.5 V	-5 V	300 mA	5 V	75 %	5.5 V	Surface Mount	Isolated Module	3 W
