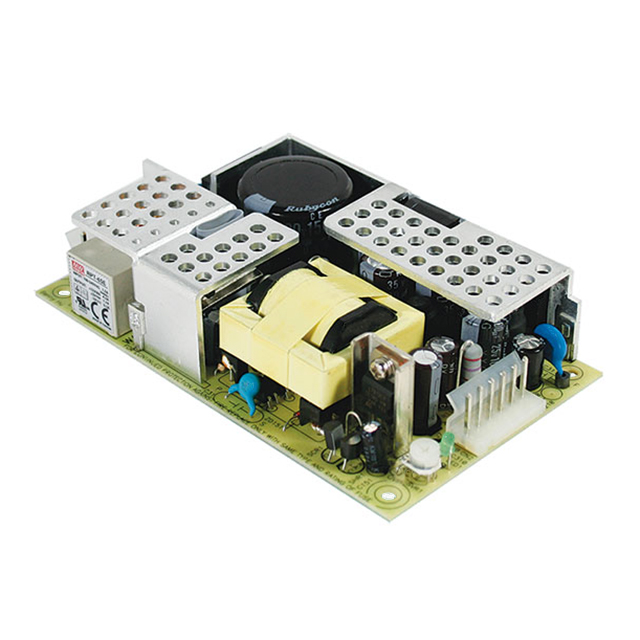

RPT-65 Series
Manufacturer: MEAN WELL USA Inc.
Beta
⌘K
AC/DC CONVERTER 24V 5V 12V 66W
| Part | Minimum Load Required | Approval Agency | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Power (Watts) | Current - Output 1 | Number of Outputs | Mounting Type | Efficiency | Voltage - Output 1 | Voltage - Isolation | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Output 2 | Applications | Voltage - Output 3 | Voltage - Input [Max] | Voltage - Input [Min] | Current - Output 3 | Current - Output 2 | Type | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MEAN WELL USA Inc. | CB CE cURus TUV | 29 mm | 5 " | 76 mm | 1.14 in | 2.99 in | 127 mm | 66 W | 2.25 A | 3 | Chassis Mount | 81 % | 24 V | 3000 V | 60 °C | -20 °C | 5 V | ITE (Commercial) | 12 V | 264 VAC 370 VDC | 90 VAC 127 VDC | 500 mA | 1.2 A | Open Frame | Adjustable Output Universal Input | |
MEAN WELL USA Inc. | CB CE cURus TUV | 29 mm | 5 " | 76 mm | 1.14 in | 2.99 in | 127 mm | 66 W | 4.5 A | 3 | Chassis Mount | 77 % | 12 V | 3000 V | 60 °C | -20 °C | 5 V | ITE (Commercial) | -12 V | 264 VAC 370 VDC | 90 VAC 127 VDC | 500 mA | 1.2 A | Open Frame | Adjustable Output Universal Input | |
MEAN WELL USA Inc. | CB CE cURus TUV | 29 mm | 5 " | 76 mm | 1.14 in | 2.99 in | 127 mm | 63 W | 4.5 A | 3 | Chassis Mount | 77 % | 12 V | 3000 V | 60 °C | -20 °C | 5 V | ITE (Commercial) | -5 V | 264 VAC 370 VDC | 90 VAC 127 VDC | 500 mA | 1.2 A | Open Frame | Adjustable Output Universal Input |
