RFN-1027 Series
Manufacturer: RF Industries
Beta
⌘K

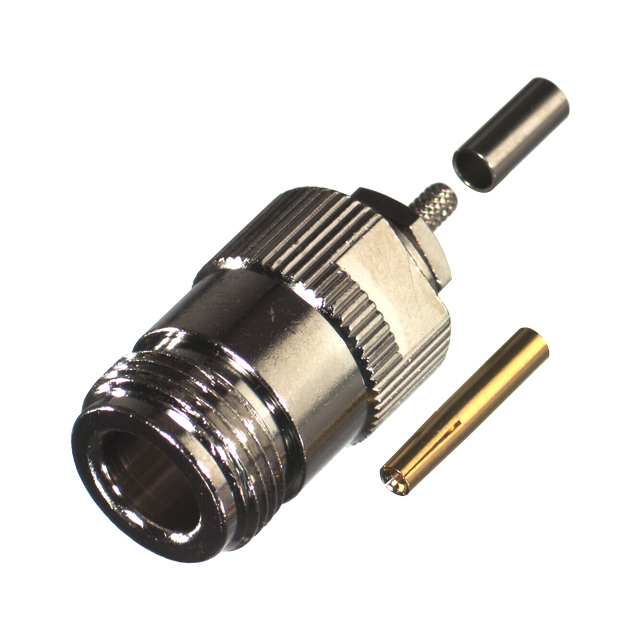

N FEMALE CRIMP; 50 OHMS
| Part | Dielectric Material | Body Finish | Body Material | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Center Contact Plating | Contact Termination | Frequency - Max [Max] | Connector Style | Shield Termination | Housing Color | Connector Type | Impedance | Mounting Type | Number of Ports | Fastening Type | Center Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 RF Industries | Polytetrafluoroethylene (PTFE) | Nickel | Brass | -65 ░C | 165 °C | 1000 VDC | Gold | Crimp | 11 GHz | N Type | Crimp | Silver | Female Socket Jack | 50 Ohms | Free Hanging (In-Line) | 1 | Threaded | Phosphor Bronze |
