02KR121 Series
Manufacturer: Rosenberger
Beta
⌘K

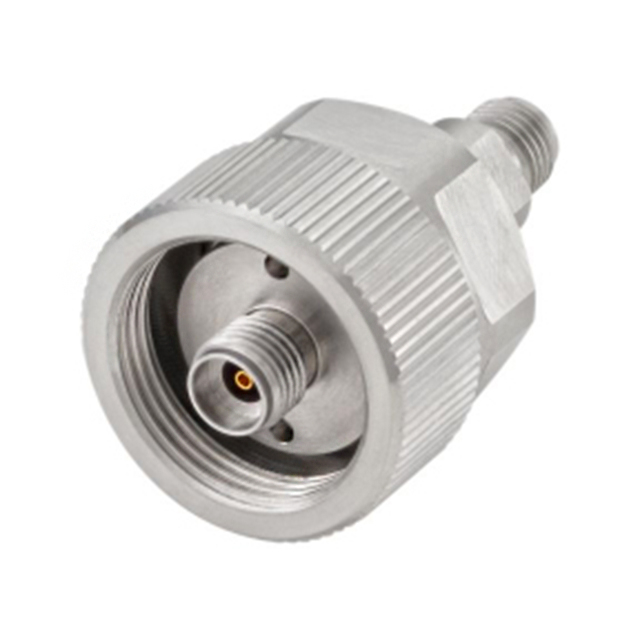

PRECISION 2.92 TESTPORT ADAPTER
| Part | Insertion Loss | Operating Temperature [Max] | Operating Temperature [Min] | Body Material | Dielectric Material | Center Contact Material | Mating Cycles | Impedance | Center Contact Plating | Convert To (Adapter End) | Convert To (Adapter End) | Frequency - Max [Max] | Adapter Series | Style | Convert From (Adapter End) | Convert From (Adapter End) | Convert From (Adapter End) | Center Gender | Mounting Type | Adapter Type | Conversion Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Rosenberger | 0.25 dB | 85 °C | -40 C | Stainless Steel | Polyetheretherketone (PEEK) | Beryllium Copper | 500 | 50 Ohms | Gold | Jack Female Socket | 2.92 mm | 40 GHz | RPC-2.92 to RPC-2.92 | Straight | OS-2.9 | Jack Female Socket | 2.92 mm | Female to Female | Free Hanging (In-Line) | Jack to Jack | Same Series |
 Rosenberger | 0.25 dB | 85 °C | -40 C | Stainless Steel | Polyetheretherketone (PEEK) | Beryllium Copper | 500 | 50 Ohms | Gold | 2.92mm (OS-2.9) Plug Male Pin | 40 GHz | RPC-2.92 to RPC-2.92 | Straight | OS-2.9 | Jack Female Socket | 2.92 mm | Free Hanging (In-Line) | Plug to Jack | Same Series |
