093001603 Series
Manufacturer: HARTING
Beta
⌘K

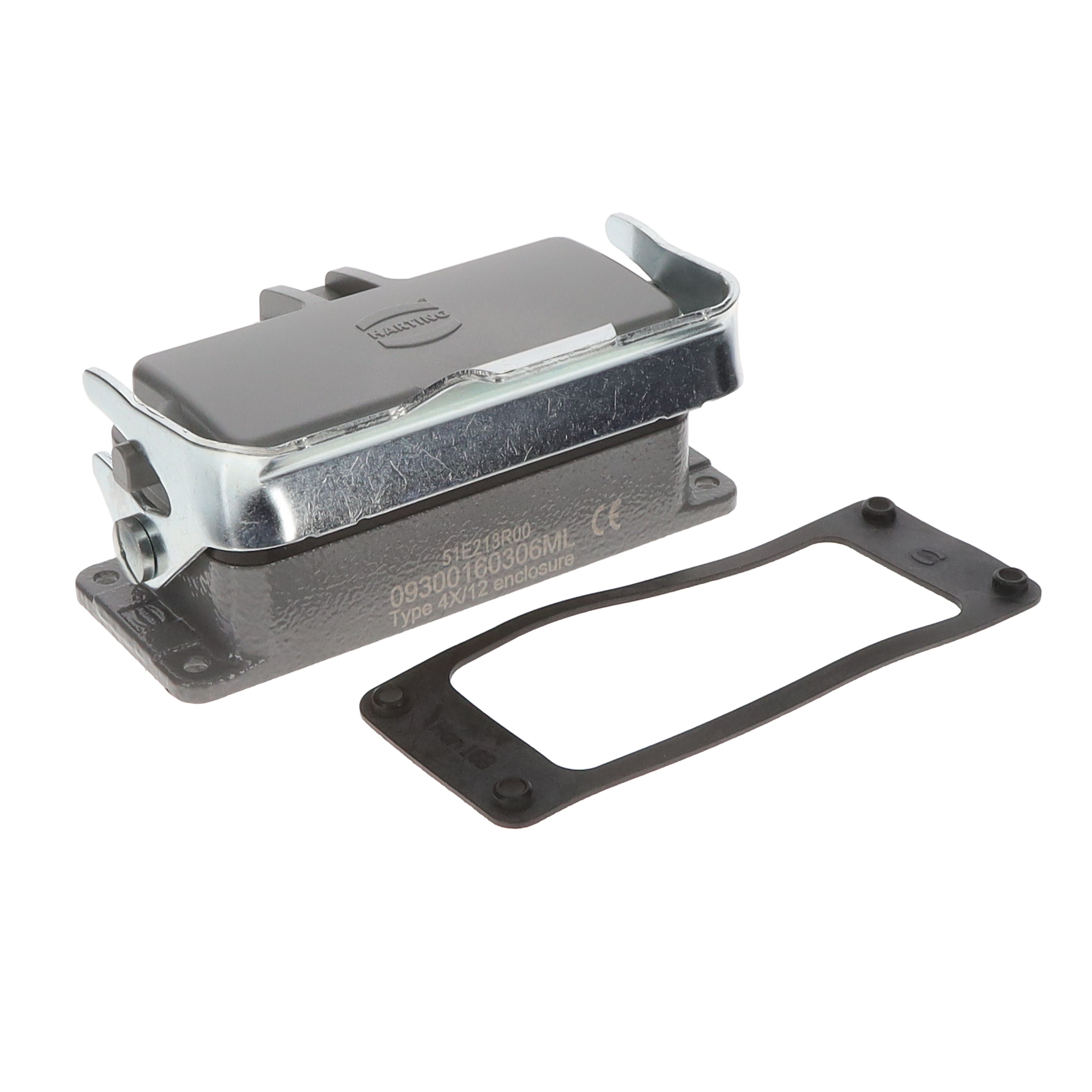

16B BULKHEAD HOUSING, SINGLE LEVER, W/ PLASTIC COVER W/ METAL LEVER
| Part | Connector Type | Features | Style | Housing Color | Operating Temperature [Max] | Operating Temperature [Min] | Size | Ingress Protection | Housing Material | Lock Location | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Housing Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 HARTING | Base - Panel Mount | Cover | Bottom Entry | Gray | 125 °C | -40 C | 16 B | IP65 - Dust Tight Water Resistant | Aluminum Die Cast | Locking Clip (1) on Base Bottom | 113 mm | 43.4 mm | 4.449 " | 1.138 " | 28.9 mm | 1.709 " | Powder Coated |
 HARTING |
