H2183 Series
Manufacturer: Harwin Inc.
Beta
⌘K

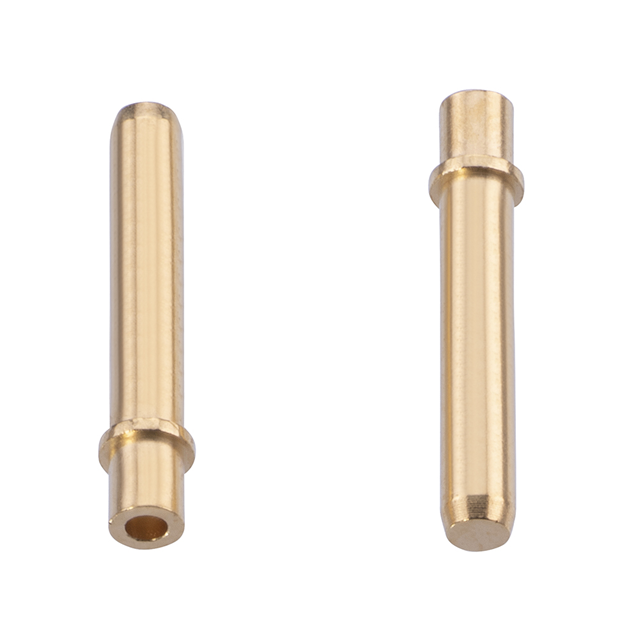

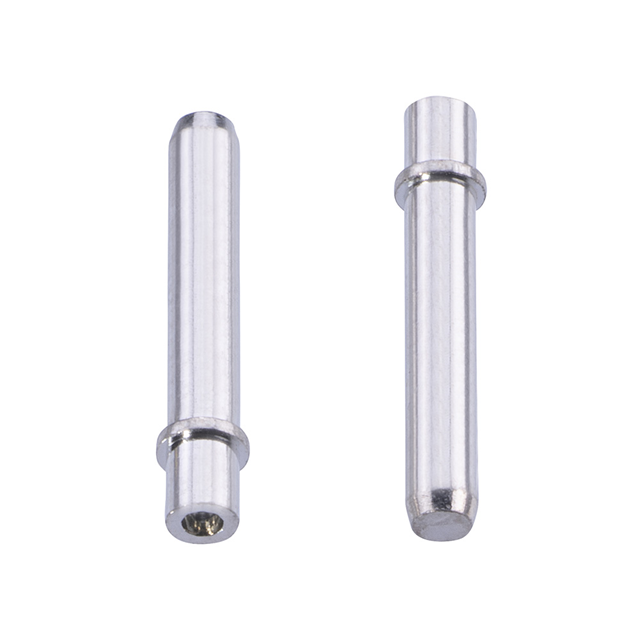

CONN PC PIN 1.75MM DIA TIN 9.5MM
| Part | Mounting Type | Contact Material | Board Thickness | Board Thickness | Contact Finish | Termination | Terminal Style | Length - Below Flange [x] | Length - Below Flange [x] | Terminal Type | Insulation | Flange Diameter [diameter] | Flange Diameter [diameter] | Pin Size - Below Flange [diameter] | Pin Size - Below Flange [diameter] | Pin Size - Above Flange [diameter] | Pin Size - Above Flange | Length - Above Flange [x] | Length - Above Flange [x] | Mounting Hole Diameter [Max] | Mounting Hole Diameter [Min] | Mounting Hole Diameter [Min] | Mounting Hole Diameter [Max] | Length - Overall [x] | Length - Overall [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Harwin Inc. | Through Hole | Brass | 0.063 in | 1.6 mm | Tin | Swage | Single End | 1.95 mm | 0.077 " | PC Pin | Non-Insulated | 0.089 " | 2.25 mm | 0.07 " | 1.78 mm | 0.07 in | 1.78 mm | 9.5 mm | 0.374 in | 0.075 " | 0.071 " | 1.8 mm | 1.9 mm | 0.467 in | 11.86 mm |
 Harwin Inc. | Through Hole | Brass | 0.063 in | 1.6 mm | Gold | Swage | Single End | 1.95 mm | 0.077 " | PC Pin | Non-Insulated | 0.089 " | 2.25 mm | 0.07 " | 1.78 mm | 0.07 in | 1.78 mm | 9.5 mm | 0.374 in | 0.075 " | 0.071 " | 1.8 mm | 1.9 mm | 0.467 in | 11.86 mm |
