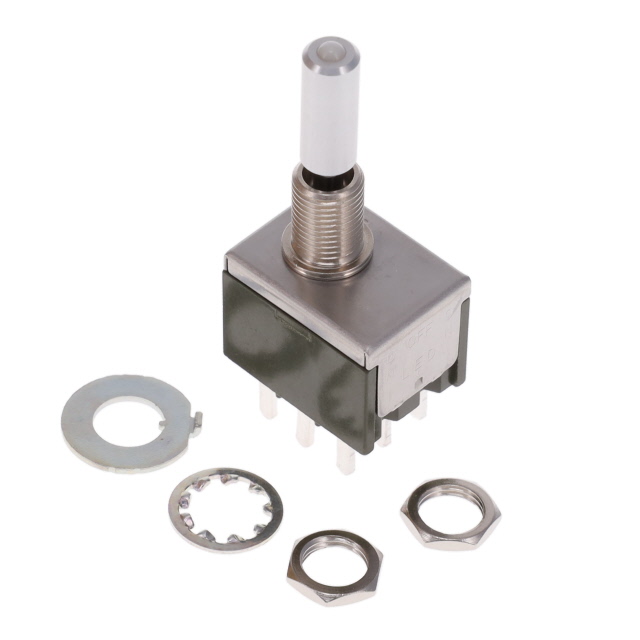

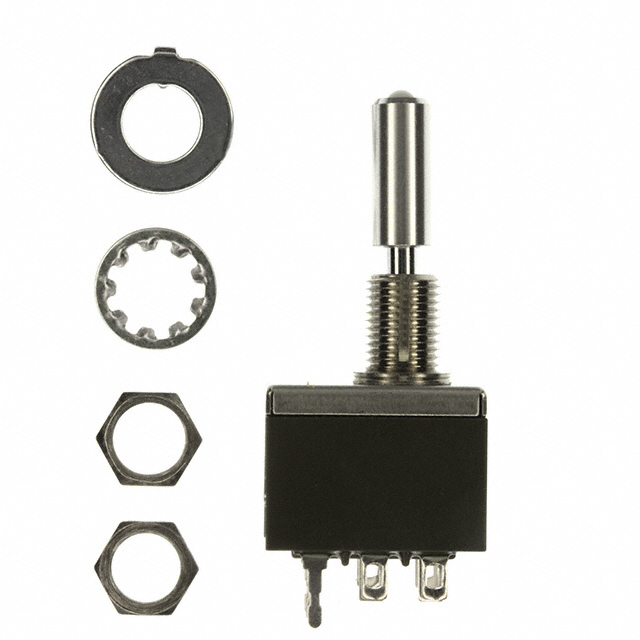

M2123TC Series
Manufacturer: NKK Switches
Beta
⌘K
SWITCH TOGGLE ON OFF ON DPDT LIGHTED LEVER SOLDER LUG 6A 250VAC 30VDC PANEL MOUNT WITH THREADS
| Part | Electrical Life | Panel Cutout Dimensions [diameter] | Illumination Voltage (Nominal) | Voltage Rating - AC | Actuator Length [x] | Circuit | Current Rating (Amps) | Features | Switch Function | Termination Style | Voltage Rating - DC | Mounting Type | Bushing Thread | Actuator Type | Illumination | Operating Temperature [Max] | Operating Temperature [Min] | Illumination Type, Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | 25000 Steps | 6.5 mm | 1.7 VDC 2 VDC | 125 V | 14.7 mm | DPDT | 3 A 6 A | Epoxy Sealed Terminals | On-Off-On | Solder Lug | 30 V | Panel Mount | 1/4-40 | Standard Round | Illuminated | 55 °C | -10 °C | Green/Red LED |
 NKK Switches | 25000 Steps | 6.5 mm | 1.7 VDC 2 VDC | 125 V | 14.7 mm | DPDT | 3 A 6 A | Epoxy Sealed Terminals | On-Off-On | Quick Connect - 0.062" (1.5mm) | 30 V | Panel Mount | 1/4-40 | Standard Round | Illuminated | 55 °C | -10 °C | Green/Red LED |
 NKK Switches | 25000 Steps | 1.7 VDC 2 VDC | 125 V | 14.7 mm | DPDT | 3 A 6 A | Epoxy Sealed Terminals | On-Off-On | PC Pin | 30 V | Through Hole | Unthreaded | Standard Round | Illuminated | 55 °C | -10 °C | Green/Red LED |
