CCD Driver
Key Features

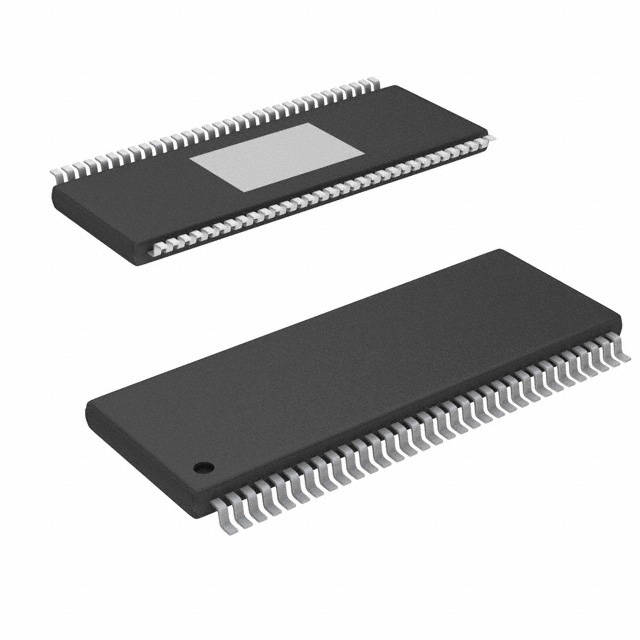

• All CCD Drivers Integrated into One PackageHigh Strength Drivers Designed Specifically for CCD LoadsAbility to Scale Clock Driver StrengthSkew Specifications EnsuredSeparate Input and Output Power SuppliesCMOS Process Technology64-Pin HTSSOP Package with Extended Power Handling CapabilityKey SpecificationsSupply VoltageInputs 3.0 to 5.5VDrivers 4.5 to 5.8VMaximum Output Skew Between P1A and P2A Outputs 0.5 nsMaximum Power Handling 2.0WAll trademarks are the property of their respective owners.All CCD Drivers Integrated into One PackageHigh Strength Drivers Designed Specifically for CCD LoadsAbility to Scale Clock Driver StrengthSkew Specifications EnsuredSeparate Input and Output Power SuppliesCMOS Process Technology64-Pin HTSSOP Package with Extended Power Handling CapabilityKey SpecificationsSupply VoltageInputs 3.0 to 5.5VDrivers 4.5 to 5.8VMaximum Output Skew Between P1A and P2A Outputs 0.5 nsMaximum Power Handling 2.0WAll trademarks are the property of their respective owners.
Description
AI
The LM98555 is a highly integrated driver circuit intended for CCD driving applications. It combines 25 drivers of varying drive strengths into one chip to provide a complete CCD driving solution. Due to this one-chip integration, optimal skew control is achieved for this demanding application.
The LM98555 is a highly integrated driver circuit intended for CCD driving applications. It combines 25 drivers of varying drive strengths into one chip to provide a complete CCD driving solution. Due to this one-chip integration, optimal skew control is achieved for this demanding application.
