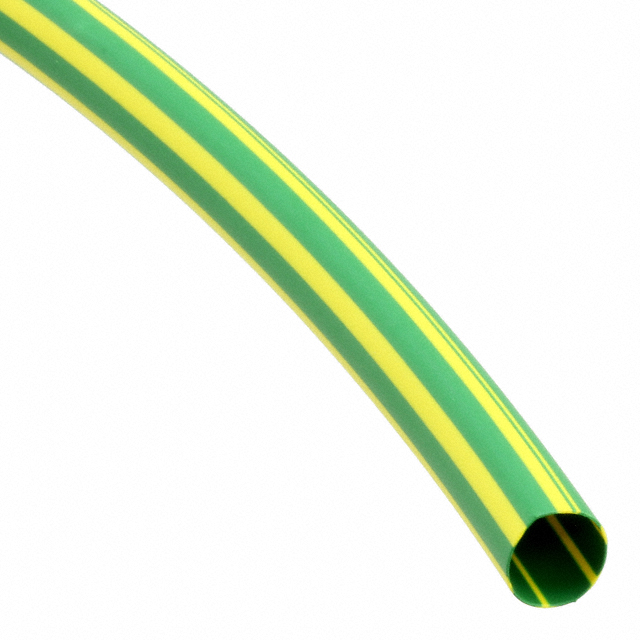

RAYCHEM DCPT Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

HEAT SHRINK TUBING 1=1M

Part	Spool Size [custom]	Spool Size [custom]	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Shrinkage Ratio [Min]	Shrinkage Ratio [Max]	Features	Length	Length	Material	Color	Operating Temperature [Min]	Operating Temperature [Max]	Length	Shelf Life	Type	Length [x]	Length [x]	Shrink Temperature	Recovered Wall Thickness	Recovered Wall Thickness	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Spool Size	Spool Size	Shrinkage Ratio	Inner Diameter - Supplied
TE Connectivity AMP Connectors DCPT-6/3-45-SP	150 m	492.1 ft	35 °C	32 °F	95 °F	1	2	Flame Retardant Fluid Resistant	3.28 ft 82 ft 164 ft 492.1 ft	1 m 25 m 50 m 150 m	Polyolefin (PO)	Green Yellow	-55 C	135 °C	Enter Number of Meters in Order Quantity	144 Months	Tubing Flexible	16.4 ft	5 m	95 °C	0.58 mm	0.023 "	0.118 in	2.99 mm	0.236 in	5.99 mm
TE Connectivity AMP Connectors DCPT-19/9-45-SP	150 m	492.1 ft	35 °C	32 °F	95 °F	1	2	Flame Retardant Fluid Resistant	3.28 ft 492.1 ft	1 m 150 m	Polyolefin (PO)	Green Yellow	-55 C	135 °C	Enter Number of Meters in Order Quantity	144 Months	Tubing Flexible			95 °C	0.76 mm	0.03 in	0.354 "	8.99 mm	0.748 in	19 mm
TE Connectivity AMP Connectors DCPT-3/1.5-45-SP			35 °C	32 °F	95 °F	1	2	Flame Retardant Fluid Resistant	3.28 ft	1 m	Polyolefin (PO)	Green Yellow	-55 C	135 °C	Enter Number of Meters in Order Quantity	144 Months	Tubing Flexible	984.3 ft	300 m	95 °C	0.51 mm	0.02 in	0.06 in	1.52 mm	0.118 "	3 mm	984.3 ft	300 m
TE Connectivity AMP Connectors DCPT-9/3-45-SP			35 °C	32 °F	95 °F			Flame Retardant Fluid Resistant	3.28 ft 492.1 ft	1 m 150 m	Polyolefin (PO)	Green Yellow	-55 C	135 °C		144 Months	Tubing Flexible			95 °C	0.76 mm	0.03 in	0.118 in	2.99 mm	0.354 in	8.99 mm			3 to 1
TE Connectivity AMP Connectors DCPT-19/9-45-STK			35 °C	32 °F	95 °F	1	2				Polyolefin (PO) Irradiated	Green Yellow	-55 C	135 °C			Tubing Flexible			95 °C	0.76 mm	0.03 in	0.354 "	8.99 mm	0.748 in	19 mm
TE Connectivity AMP Connectors DCPT-18/6-45-SP			35 °C	32 °F	95 °F			Flame Retardant Fluid Resistant	3.28 ft 492.1 ft	1 m 150 m	Polyolefin (PO)	Green Yellow	-55 C	135 °C		144 Months	Tubing Flexible			95 °C	0.84 mm	0.033 in	0.236 in	5.99 mm	0.709 "	18.01 mm			3 to 1

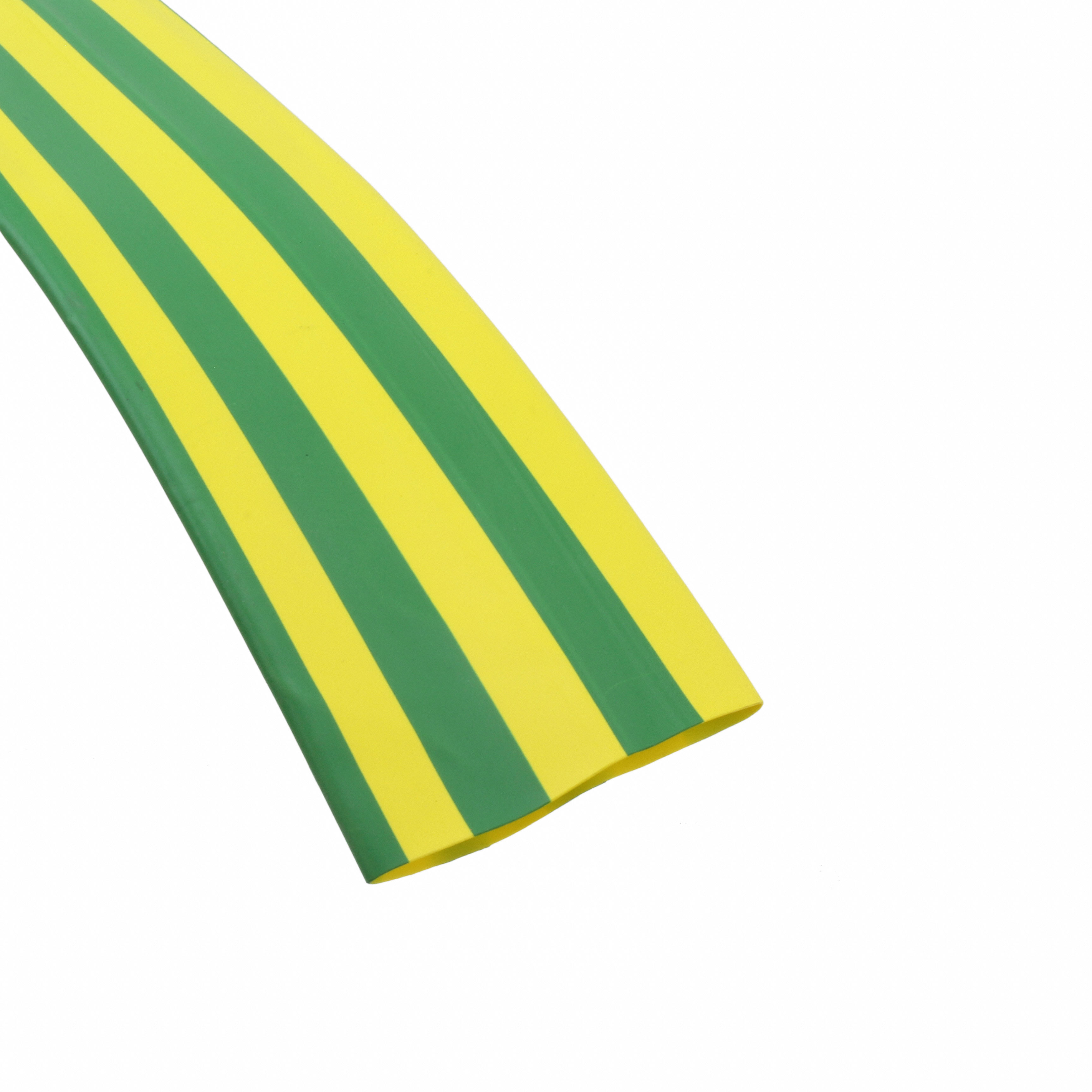

TE Connectivity AMP Connectors DCPT-38/19-45-SP			35 °C	32 °F	95 °F	1	2	Flame Retardant Fluid Resistant	3.28 ft 196.8 '	1 m 60 m	Polyolefin (PO)	Green Yellow	-55 C	135 °C	Enter Number of Meters in Order Quantity	144 Months	Tubing Flexible			95 °C	0.99 mm	0.039 in	0.748 "	19 mm	1.496 in					38 mm
TE Connectivity AMP Connectors DCPT-51/19-45-SP			35 °C	32 °F	95 °F	1	2	Flame Retardant Fluid Resistant	3.28 ft 98.4 ft	1 m 30 m	Polyolefin (PO)	Green Yellow	-55 C	135 °C		144 Months	Tubing Flexible			95 °C	1.02 mm	0.04 in	0.748 "	19 mm	2.008 in	51 mm

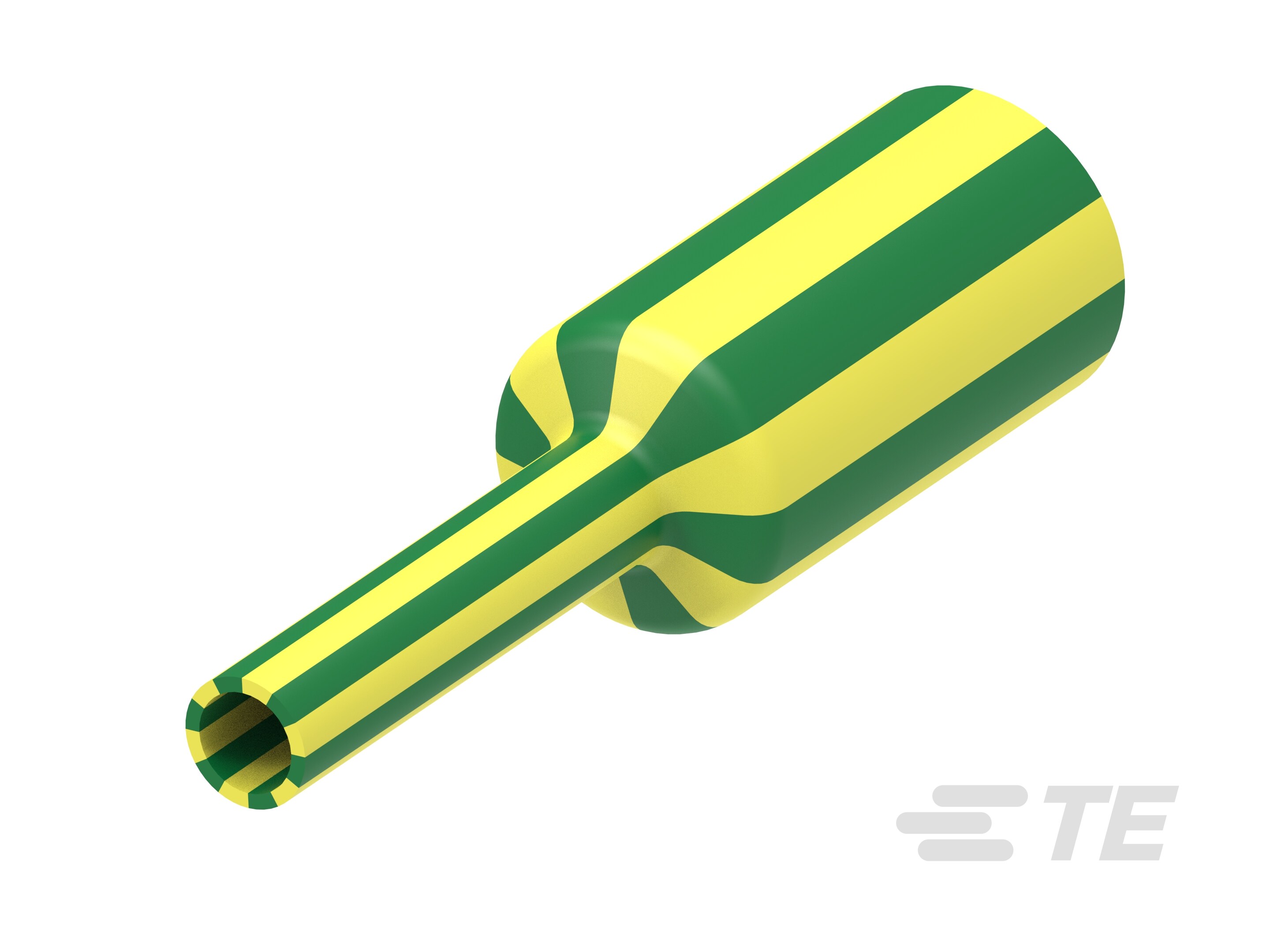

TE Connectivity AMP Connectors DCPT-39/13-45-SP			35 °C	32 °F	95 °F			Flame Retardant Fluid Resistant	98.4 ft	30 m	Polyolefin (PO)	Green Yellow	-55 C	135 °C		144 Months	Tubing Flexible			95 °C	1.14 mm	0.045 in	0.512 in	13 mm					3 to 1
TE Connectivity AMP Connectors DCPT-12/4-45-SP			35 °C	32 °F	95 °F			Flame Retardant Fluid Resistant			Polyolefin (PO)	Green Yellow	-55 C	135 °C		144 Months	Tubing Flexible			95 °C	0.76 mm	0.03 in	0.157 "	3.99 mm	0.472 in	11.99 mm			3 to 1
