ANT11 Series

Catalog

SWITCH TOGGLE SPDT 5A 120V

Part	Actuator Material	Electrical Life	Current Rating (Amps)	Switch Function	Voltage Rating - AC	Voltage Rating - DC	Bushing Thread	Termination Style	Illumination	Actuator Type	Circuit	Mounting Type	Actuator Length [x]	Operating Temperature [Max]	Operating Temperature [Min]

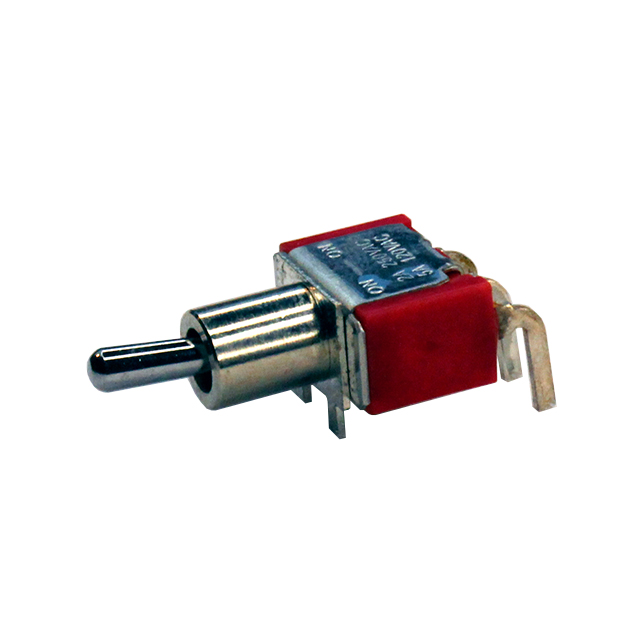

CIT Relay and Switch ANT11TFHQE	Brass Chrome Plated	50000 Cycles	5 A	On-On	120 V	28 V	1/4-40	PC Pin	Non-Illuminated	Standard Round	SPDT	Right Angle Through Hole	5.08 mm	85 °C	-40 C
CIT Relay and Switch ANT11SE1HQE	Brass Chrome Plated	50000 Cycles	5 A	On-On	120 V	28 V	Unthreaded	PC Pin	Non-Illuminated	Standard Round	SPDT	Right Angle Through Hole	10.67 mm	85 °C	-40 C

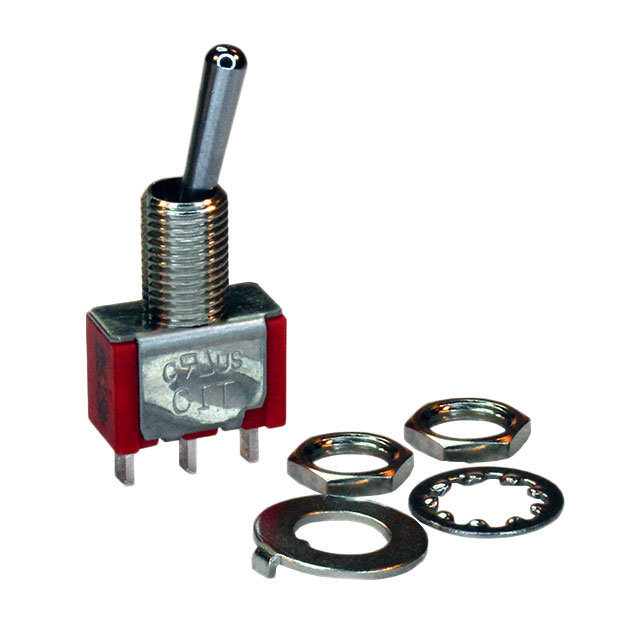

CIT Relay and Switch ANT11SEBQE	Brass Chrome Plated	50000 Cycles	5 A	On-On	120 V	28 V	1/4-40	Solder Lug	Non-Illuminated	Standard Round	SPDT	Panel Mount	10.67 mm	85 °C	-40 C
