FSU1004 Series

UNIVERSAL ADJUSTABLE FLASHER

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

UNIVERSAL ADJUSTABLE FLASHER

Part	Timing Initiate Method	Termination Style	Relay Type	Timing Adjustment Method	Delay Time [Min]	Delay Time [Max]	Voltage - Supply [Min]	Voltage - Supply [Max]	Function	Mounting Type
Littelfuse/Commercial Vehicle Products FSU1004	Input Voltage Trigger Signal	Quick Connect - 0.250" (6.3mm)	Solid State Relay	Screwdriver Slot	10 Min	100 Min	24 VAC	240 VAC	Repeat Cycle	Chassis Mount
Littelfuse/Commercial Vehicle Products FSU1000	Input Voltage Trigger Signal	Quick Connect - 0.250" (6.3mm)	Solid State Relay	Screwdriver Slot	10 Min	100 Min	24 VAC	240 VAC	Repeat Cycle	Chassis Mount

Catalog

UNIVERSAL ADJUSTABLE FLASHER

Description

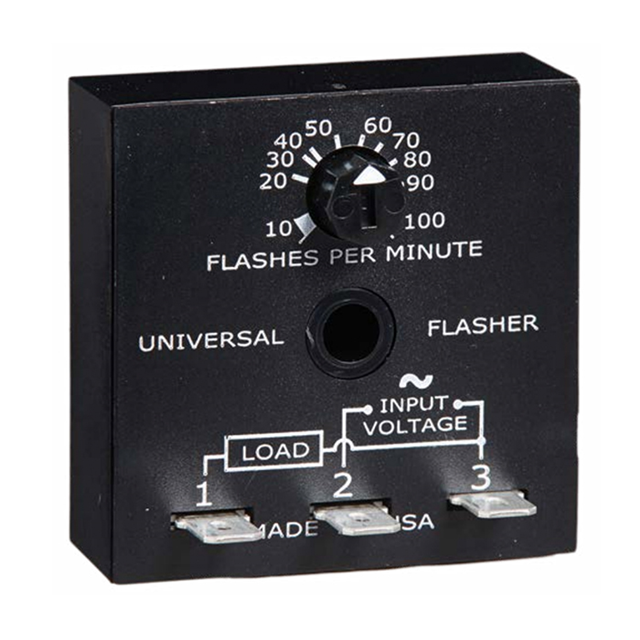

The FSU1000 incorporates an onboard adjustable flash rate of 10 to 100 FPM and a universal input voltage in one device. Its circuitry is encapsulated and is capable of controlling loads of up to 20A. The versatility of the FSU1000 makes it ideal for applications where various flash rates and operating voltages are required. See datasheet for operation details.
