NRF51802 Series

Catalog

MULTIPROTOCOL SOC, ANT, BLUETOOTH LE, 48 PINS, QFN-EP

Part	Modulation	Serial Interfaces	Current - Transmitting (Min)	Current - Transmitting (Max)	Protocol	Package / Case	Current - Receiving (Max)	Current - Receiving (Min)	Operating Temperature (Min)	Operating Temperature (Max)	Package Length	Package Name	Package Width	GPIO Count	Frequency	Sensitivity	RF Family/Standard	Data Rate (Max)	Mounting Type	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Power - Output	Type	Memory Size (SRAM)	Memory Type	Memory Size (Flash)
Nordic Semiconductor ASA NRF51802-QFAA-T	GFSK	I2C SPI UART USB	4.7 mA	16 mA	Bluetooth v4.1	48-VFQFN Exposed Pad	13.4 mA	8.7 mA	-40 °C	85 °C	6 mm	48-QFN	6 mm	31	2.4 GHz	-94 dBm	Bluetooth	2 MBaud	Surface Mount	3.6 V	1.8 V	4 dBm	TxRx Only	16 kB	Flash SRAM	256 KB
Nordic Semiconductor ASA NRF51802-QFAA-R7	GFSK	I2C SPI UART USB	4.7 mA	16 mA	Bluetooth v4.1	48-VFQFN Exposed Pad	13.4 mA	8.7 mA	-40 °C	85 °C	6 mm	48-QFN	6 mm	31	2.4 GHz	-94 dBm	Bluetooth	2 MBaud	Surface Mount	3.6 V	1.8 V	4 dBm	TxRx Only	16 kB	Flash SRAM	256 KB

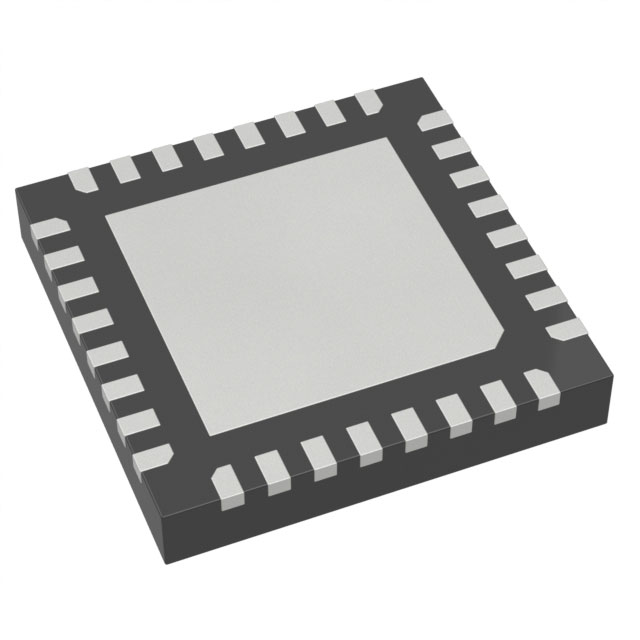

Nordic Semiconductor ASA NRF51802-QCAA-T	GFSK	I2C SPI UART USB	4.7 mA	16 mA	Bluetooth v4.1	32-VFQFN Exposed Pad	13.4 mA	8.7 mA	-40 °C	85 °C	5 mm	32-QFN	5 mm	31	2.4 GHz	-94 dBm	Bluetooth	2 MBaud	Surface Mount	3.6 V	1.8 V	4 dBm	TxRx Only	16 kB	Flash SRAM	256 KB
Nordic Semiconductor ASA NRF51802-QCAA-R	GFSK	I2C SPI UART USB	4.7 mA	16 mA	Bluetooth v4.1	32-VFQFN Exposed Pad	13.4 mA	8.7 mA	-40 °C	85 °C	5 mm	32-QFN	5 mm	31	2.4 GHz	-94 dBm	Bluetooth	2 MBaud	Surface Mount	3.6 V	1.8 V	4 dBm	TxRx Only	16 kB	Flash SRAM	256 KB
Nordic Semiconductor ASA NRF51802-QFAA-R	GFSK	I2C SPI UART USB	4.7 mA	16 mA	Bluetooth v4.1	48-VFQFN Exposed Pad	13.4 mA	8.7 mA	-40 °C	85 °C	6 mm	48-QFN	6 mm	31	2.4 GHz	-94 dBm	Bluetooth	2 MBaud	Surface Mount	3.6 V	1.8 V	4 dBm	TxRx Only	16 kB	Flash SRAM	256 KB
Nordic Semiconductor ASA NRF51802-QCAA-R7	GFSK	I2C SPI UART USB	4.7 mA	16 mA	Bluetooth v4.1	32-VFQFN Exposed Pad	13.4 mA	8.7 mA	-40 °C	85 °C	5 mm	32-QFN	5 mm	31	2.4 GHz	-94 dBm	Bluetooth	2 MBaud	Surface Mount	3.6 V	1.8 V	4 dBm	TxRx Only	16 kB	Flash SRAM	256 KB
