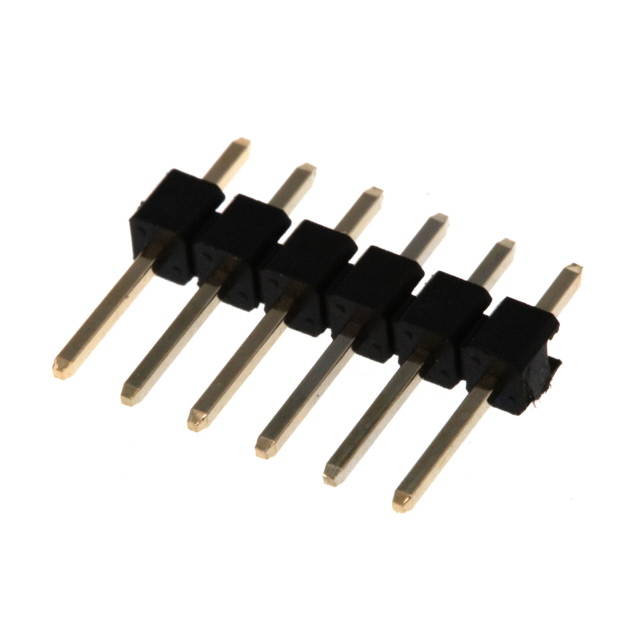

PR20206VB Series
Manufacturer: METZ CONNECT USA Inc.
Beta
⌘K
PIN HEADER, THR, SINGLE ROW, .10
| Part | Contact Length - Mating [x] | Contact Length - Mating [x] | Fastening Type | Contact Shape | Overall Contact Length [x] | Overall Contact Length [x] | Mounting Type | Insulation Height | Insulation Height | Number of Positions Loaded | Contact Finish - Mating | Contact Finish Thickness - Mating | Contact Length - Post | Contact Length - Post | Contact Material | Insulation Color | Operating Temperature [Min] | Operating Temperature [Max] | Insulation Material | Contact Type | Termination | Shrouding | Connector Type | Number of Positions | Number of Rows | Pitch - Mating | Pitch - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 METZ CONNECT USA Inc. | 0.24 in | 6.1 mm | Push-Pull | Square | 11.61 mm | 0.457 in | Through Hole | 0.098 " | 2.5 mm | All | Gold | Flash | 0.118 in | 3 mm | Copper Zinc | Black | -40 C | 105 ░C | Polyethylene | Male Pin | Solder | Unshrouded | Header | 6 | 1 | 0.1 " | 2.54 mm |
