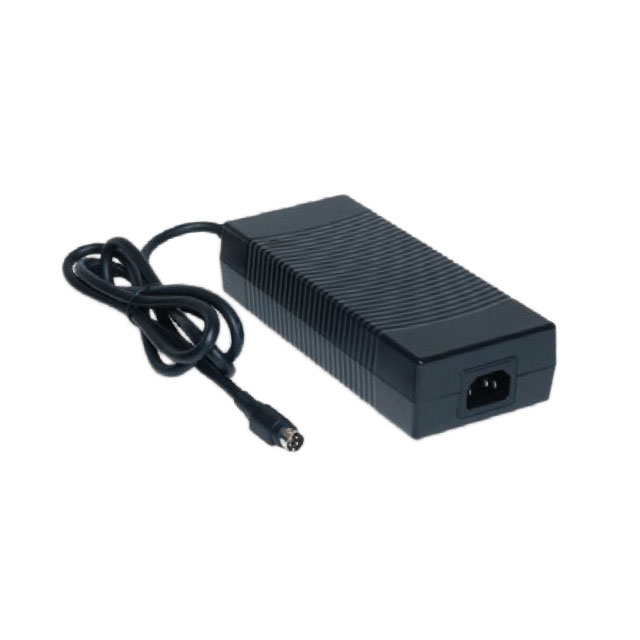

L6R200 Series
Manufacturer: Tri-Mag, LLC
Beta
⌘K
AC/DC DESKTOP ADAPTER 13.5V 189W
| Part | Weight [custom] | Weight [custom] | Voltage - Input [Max] | Voltage - Input [Min] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Input Connector | Applications | Operating Temperature [Max] | Operating Temperature [Min] | Power (Watts) | Region Utilized | Approval Agency | No Load Power Consumption | Voltage - Output | Input Type | Output Connector | Efficiency | Cord Length | Cord Length | Current - Output (Max) [Max] | Form | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Tri-Mag, LLC | 1.874 lb | 850 g | 264 VAC | 90 VAC | 42 mm | 1.65 " | 183 mm | 7.2 " | 3.19 " | 81 mm | IEC 320-C14 | ITE (Commercial) | 40 °C | 0 °C | 189 W | International | CE cULus EN FCC TUV | 150 mW | 13.5 V | Cord (Sold Separately) | Power DIN 4 Pin | CoC Tier 2 Level VI | 1.2 m | 47.2 in | 14 A | Desktop (Class I) | 62368-1 |
Tri-Mag, LLC | 1.874 lb | 850 g | 264 VAC | 90 VAC | 42 mm | 1.65 " | 183 mm | 7.2 " | 3.19 " | 81 mm | IEC 320-C6 | ITE (Commercial) | 40 °C | 0 °C | 189 W | International | CE cULus EN FCC TUV | 150 mW | 13.5 V | Cord (Sold Separately) | Power DIN 4 Pin | CoC Tier 2 Level VI | 1.2 m | 47.2 in | 14 A | Desktop (Class I) | 62368-1 |
Tri-Mag, LLC | 1.874 lb | 850 g | 264 VAC | 90 VAC | 42 mm | 1.65 " | 183 mm | 7.2 " | 3.19 " | 81 mm | IEC 320-C14 | ITE (Commercial) | 40 °C | 0 °C | 200 Watts | International | CE cULus EN FCC TUV | 150 mW | 56 V | Cord (Sold Separately) | Power DIN 4 Pin | CoC Tier 2 Level VI | 1.5 m | 59 in | 3.58 A | Desktop (Class I) | 62368-1 |
Tri-Mag, LLC | 1.874 lb | 850 g | 264 VAC | 90 VAC | 42 mm | 1.65 " | 183 mm | 7.2 " | 3.19 " | 81 mm | IEC 320-C14 | ITE (Commercial) | 40 °C | 0 °C | 200 Watts | International | CE cULus EN FCC TUV | 150 mW | 48 V | Cord (Sold Separately) | Power DIN 4 Pin | CoC Tier 2 Level VI | 1.5 m | 59 in | 4.17 A | Desktop (Class I) | 62368-1 |
Tri-Mag, LLC | 1.874 lb | 850 g | 264 VAC | 90 VAC | 42 mm | 1.65 " | 183 mm | 7.2 " | 3.19 " | 81 mm | IEC 320-C14 | ITE (Commercial) | 40 °C | 0 °C | 200 Watts | International | CE cULus EN FCC TUV | 150 mW | 24 V | Cord (Sold Separately) | Power DIN 4 Pin | CoC Tier 2 Level VI | 1.5 m | 59 in | 8.3 A | Desktop (Class I) | 62368-1 |
Tri-Mag, LLC | 1.874 lb | 850 g | 264 VAC | 90 VAC | 42 mm | 1.65 " | 183 mm | 7.2 " | 3.19 " | 81 mm | IEC 320-C6 | ITE (Commercial) | 40 °C | 0 °C | 200 Watts | International | CE cULus EN FCC TUV | 150 mW | 48 V | Cord (Sold Separately) | Power DIN 4 Pin | CoC Tier 2 Level VI | 1.5 m | 59 in | 4.17 A | Desktop (Class I) | 62368-1 |
