WR9MA2000 Series

Catalog

AC/DC WALL MOUNT ADAPTER 5V 10W

Part	Approval Agency	Cord Length	Cord Length	Voltage - Output	Current - Output (Max) [Max]	Operating Temperature [Max]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Output Connector	Standard Number	Input Connector	Efficiency	Voltage - Input [Max]	Voltage - Input [Min]	Power (Watts)	Form	Input Type	Region Utilized	Applications	Output Connector [diameter]	Output Connector [x]	No Load Power Consumption	Polarization

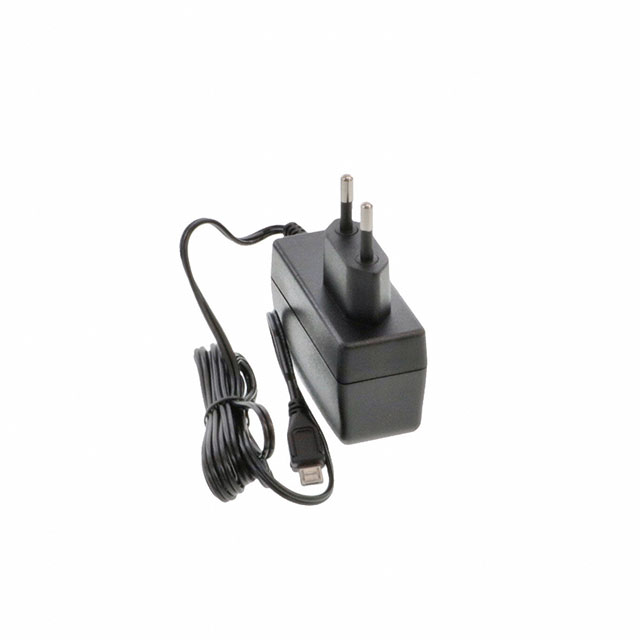

GlobTek, Inc. WR9MA2000MICB-MFR6B	CB CE EAC S-Mark UkrSEPRO VCCI	60.2 in	1.53 m	5 V	2 A	50 °C	2.3 in	2.72 in	69 mm	1.13 "	58.3 mm	28.8 mm	USB Micro	60335-1 60601-1-11 60601-1-2 62368-1	CEE 7/16	Level VI	264 VAC	90 VAC	10 W	Wall Mount	Fixed Blade	Europe	Household Appliances ITE (Commercial) Medical
GlobTek, Inc. WR9MA2000LCP-F(R6B)	CB CE EAC LPS UkrSEPRO	60.2 in	1.53 m	5 V	2 A	50 °C	2.3 in	2.72 in	69 mm	1.13 "	58.3 mm	28.8 mm	Barrel Plug	60950-1	CEE 7/16	Level VI	264 VAC	90 VAC	10 W	Wall Mount	Fixed Blade	Europe	ITE (Commercial)	2.5 mm 5.5 mm	11 mm	75 mW	Positive Center
GlobTek, Inc. WR9MA2000CCPMFR6B	CB CE EAC S-Mark UkrSEPRO VCCI	59 in	1.5 m	5 V	2 A	50 °C	2.3 in	2.72 in	69 mm	1.13 "	58.3 mm	28.8 mm	Barrel Plug	60335-1 60601-1-11 60601-1-2 62368-1	CEE 7/16	Level VI	264 VAC	90 VAC	10 W	Wall Mount	Fixed Blade	Europe	Household Appliances ITE (Commercial) Medical	2.1 mm 5.5 mm	11 mm		Positive Center

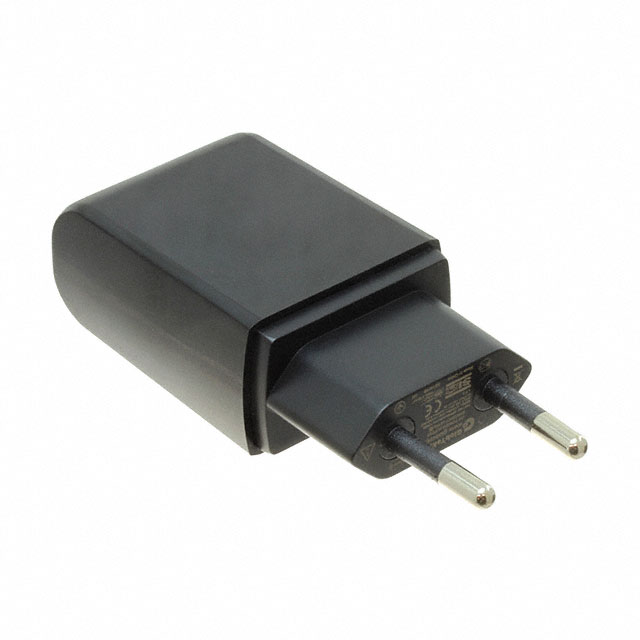

GlobTek, Inc. WR9MA2000USB-F(R6B)	CB CE EAC SIQ UkrSEPRO			5 V	2 A	50 °C	1.52 in	2.03 "	51.5 mm	0.93 in	38.5 mm	23.5 mm	USB A Receptacle	60950-1	CEE 7/16	Level VI	264 VAC	90 VAC	10 W	Wall Mount	Fixed Blade	Europe	ITE (Commercial)
GlobTek, Inc. WR9MA2000UUSB-F(R6B)	CB CE EAC LPS UkrSEPRO	60.2 in	1.53 m	5 V	2 A	50 °C	2.3 in	2.72 in	69 mm	1.13 "	58.3 mm	28.8 mm	USB Micro	60950-1	CEE 7/16	Level VI	264 VAC	90 VAC	10 W	Wall Mount	Fixed Blade	Europe	ITE (Commercial)			75 mW
GlobTek, Inc. WR9MA2000LCP-F(R6W)	CB CE EAC LPS UkrSEPRO	60.2 in	1.5 m	5 V	2 A	50 °C	3.06 in	2.72 in	69 mm	1.13 "	77.7 mm	28.8 mm	Barrel Plug		CEE 7/16	CoC Tier 2 Level VI	264 VAC	90 VAC	10 W	Wall Mount	Fixed Blade	Europe	ITE (Commercial)	2.5 mm 5.5 mm	11 mm	75 mW	Positive Center
