LM2595 Series
Manufacturer: ON Semiconductor
Beta
⌘K
IC REG MULT CONFG ADJ 1A D2PAK-5
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Package / Case | Synchronous Rectifier | Function | Voltage - Input (Min) [Min] | Voltage - Output (Max) | Number of Outputs | Topology | Current - Output | Voltage - Output (Min/Fixed) | Supplier Device Package | Mounting Type | Output Type | Output Configuration | Voltage - Output | Utilized IC / Part | Outputs and Type | Outputs and Type | Supplied Contents | Board Type | Voltage - Input [Min] | Voltage - Input [Max] | Regulator Topology | Main Purpose |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

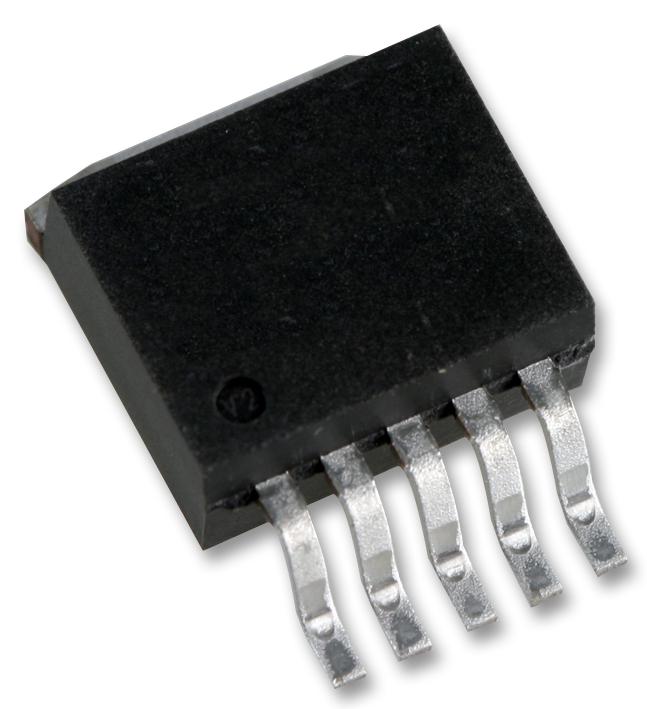

 ON Semiconductor | -40 °C | 125 ¯C | D2PAK (5 Leads + Tab) TO-263-6 TO-263BA | Step-Down Step-Up Step-Up/Step-Down | 4.5 V | 37 V | 1 | Boost Buck Buck-Boost | 1 A | 1.23 V | D2PAK-5 | Surface Mount | Adjustable | Positive or Negative | |||||||||||
 ON Semiconductor | -40 °C | 125 ¯C | D2PAK (5 Leads + Tab) TO-263-6 TO-263BA | Step-Down Step-Up Step-Up/Step-Down | 4.5 V | 37 V | 1 | Boost Buck Buck-Boost | 1 A | 1.23 V | D2PAK-5 | Surface Mount | Adjustable | Positive or Negative | |||||||||||
 ON Semiconductor | -40 °C | 125 ¯C | TO-220-5 | Step-Down Step-Up Step-Up/Step-Down | 4.5 V | 37 V | 1 | Boost Buck Buck-Boost | 1 A | 1.23 V | TO-220-5 | Through Hole | Adjustable | Positive or Negative | |||||||||||

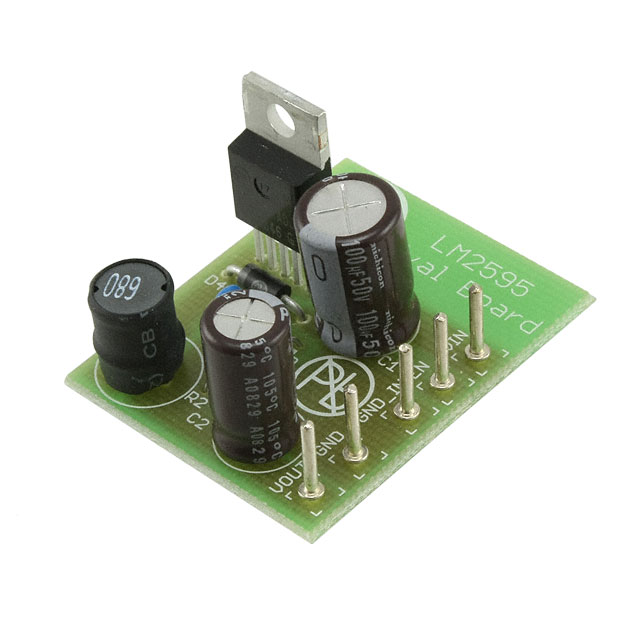

 ON Semiconductor | 1 A | 5 V | LM2595 | Non-Isolated | 1 | Board(s) | Fully Populated | 4.5 V | 40 V | Buck | DC/DC Step Down | ||||||||||||||
 ON Semiconductor | -40 °C | 125 ¯C | TO-220-5 Formed Leads | Step-Down Step-Up Step-Up/Step-Down | 4.5 V | 37 V | 1 | Boost Buck Buck-Boost | 1 A | 1.23 V | TO-220-5 | Through Hole | Adjustable | Positive or Negative |
