696302 Series

Catalog

CONN QC RCPT 14-16AWG 0.250

Part	Insulation Diameter [Max]	Insulation Diameter [Min]	Insulation Diameter [Max]	Insulation Diameter [Min]	Insulation	Termination	Contact Material	Tab Width [x]	Tab Width [x]	Mounting Type	Tab Length	Tab Length	Color	Gender	Wire Gauge [Min]	Wire Gauge [Max]	Length - Overall	Length - Overall	Tab Thickness	Tab Thickness	Contact Finish	Terminal Type
TE Connectivity AMP Connectors 696302-2	0.165 in	2.79 mm	4.19 mm	0.11 in	Non-Mating End Insulated	Crimp	Brass	6.35 mm	0.25 in	Free Hanging (In-Line)	0.301 "	7.65 mm	Blue	Female	14 AWG	16 AWG	0.864 in	21.94 mm	0.81 mm	0.032 in	Tin	Standard
TE Connectivity AMP Connectors 696302-1	0.165 in	2.79 mm	4.19 mm	0.11 in	Non-Mating End Insulated	Crimp	Brass	6.35 mm	0.25 in	Free Hanging (In-Line)	0.301 "	7.65 mm	Blue	Female	14 AWG	16 AWG	0.864 in	21.94 mm	0.81 mm	0.032 in	Tin	Standard

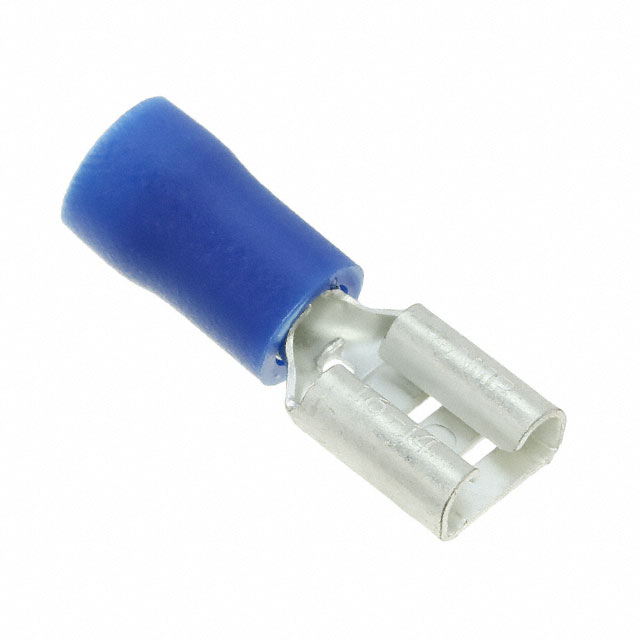

TE Connectivity AMP Connectors 8-696302-1	0.165 in	2.79 mm	4.19 mm	0.11 in	Non-Mating End Insulated	Crimp	Brass	6.35 mm	0.25 in	Free Hanging (In-Line)	0.301 "	7.65 mm	Blue	Female	14 AWG	16 AWG	0.864 in	21.94 mm	0.81 mm	0.032 in	Tin	Standard
