BU-P41 Series
Manufacturer: Mueller Electric Co
Beta
⌘K

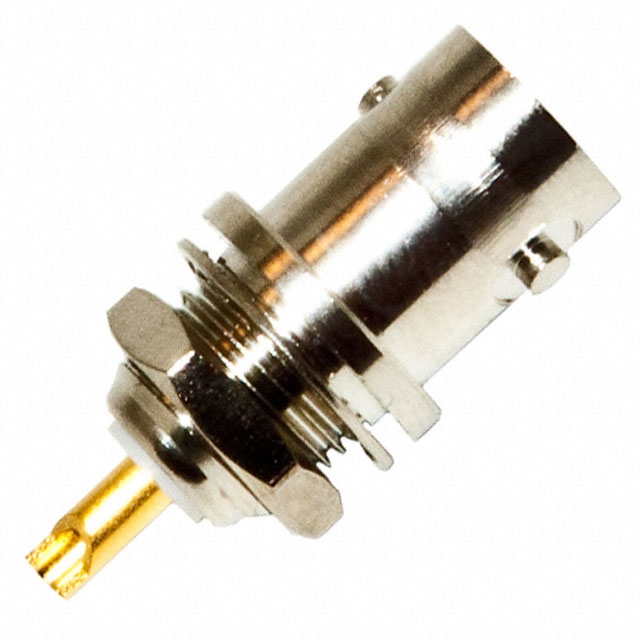

RF / COAXIAL CONNECTOR, BNC COAXIAL, STRAIGHT BULKHEAD JACK, SOLDER, 50 OHM, BERYLLIUM COPPER
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Body Material | Center Contact Plating | Voltage Rating | Includes | Shield Termination | Contact Termination | Fastening Type | Center Contact Material | Mounting Feature | Connector Style | Number of Ports | Impedance | Connector Type | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mueller Electric Co | -70 °C | 170 °C | Polytetrafluoroethylene (PTFE) | Brass | Gold | 500 V | 1 Connector 1 Lockwasher 1 Nut | Solder | Solder Cup | Bayonet Lock | Beryllium Copper | Bulkhead - Rear Side Nut | BNC | 1 | 50 Ohms | Female Socket Jack | Panel Mount |
