EYW12038012 Series
Manufacturer: YS TECH USA
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K

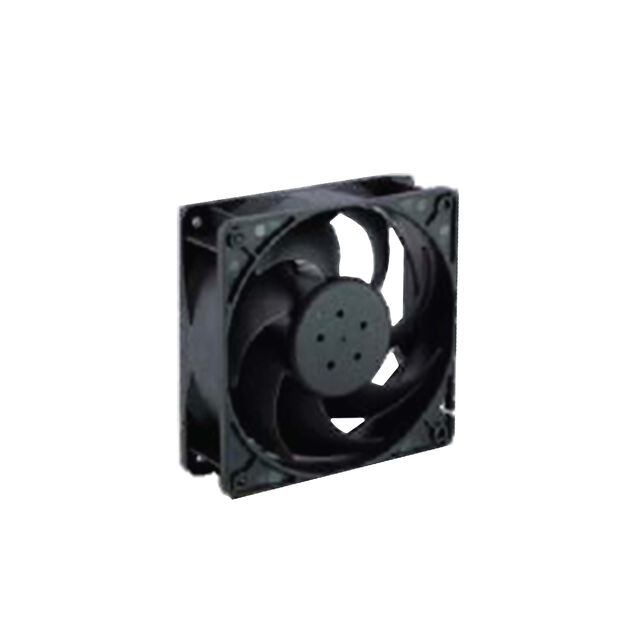

FAN AXIAL 120X38MM 12VDC WIRE
| Part | Voltage Range (Min) | Voltage Range (Max) | Material - Frame | Material - Blade | Bearing Type | Termination Leads Count | Termination Type | Termination | Fan Type | Width | Size / Dimension Height | Size / Dimension Shape | Size / Dimension Length | Voltage - Rated | Current Rating | Lifetime | Air Flow | Power (Watts) | Noise | RPM | Static Pressure |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 YS TECH USA | 7 V | 13.2 VDC | Polybutylene Terephthalate (PBT) | PBT Polybutylene Terephthalate | Ball | 2 leads | Wire Leads | 2 Wire Leads | Tubeaxial | 38 mm | 120 mm | Square | 120 mm | 12 VAC | |||||||
YS TECH USA | 7 V | 13.2 VDC | Polybutylene Terephthalate (PBT) | PBT Polybutylene Terephthalate | Ball | 2 leads | Wire Leads | 2 Wire Leads | Tubeaxial | 38 mm | 120 mm | Square | 120 mm | 12 VAC | 2.2 A | 75000 Hrs | 193.9 CFM | 26.4 W | 60.4 dB | 5000 RPM | 1.15 in H2O |
