VL-COMM Series

Catalog

SBC 1.46GHZ 1 CORE 2GB/2GB RAM

Part	Storage Interface	Power (Watts)	Number of Cores [custom]	RAM Capacity/Installed [custom]	RAM Capacity/Installed [custom]	Form Factor	Speed	USB [custom]	USB [custom]	Cooling Type	Operating Temperature [Max]	Operating Temperature [Min]	Expansion Site/Bus	Core Processor	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Video Outputs	Ethernet	RAM Capacity/Installed	USB	Number of Cores

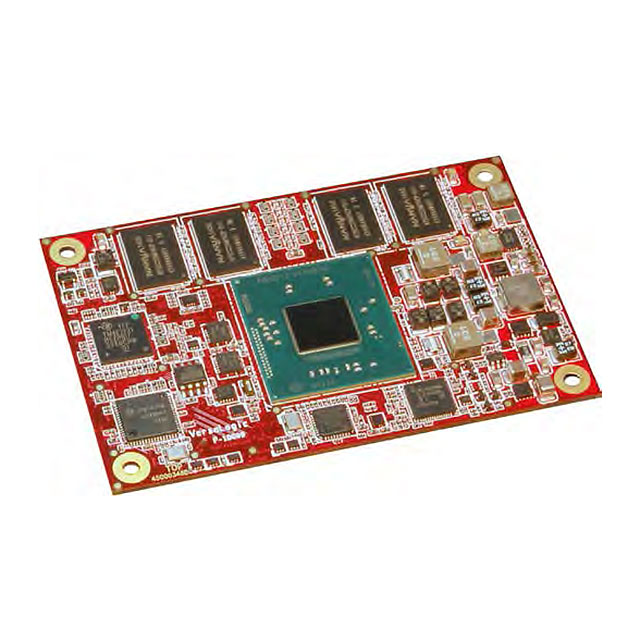

VersaLogic Corporation VL-COMM-33EA	microSD SATA 2.0 (2) SATA3 (2)	3.5 W	1	2 GB	2 GB	COM Express mini (Type 10)	1.46 GHz	USB 3.0	USB 2.0	Heat Plate	85 °C	-40 C	GPIO I2C microSD PCIe SATA SMBus SPI	Intel Atom E3815	55 mm	84 mm	2.17 "	3.31 in	DVI LVDS	10 Mbps 100 Mbps 1000 Mbps

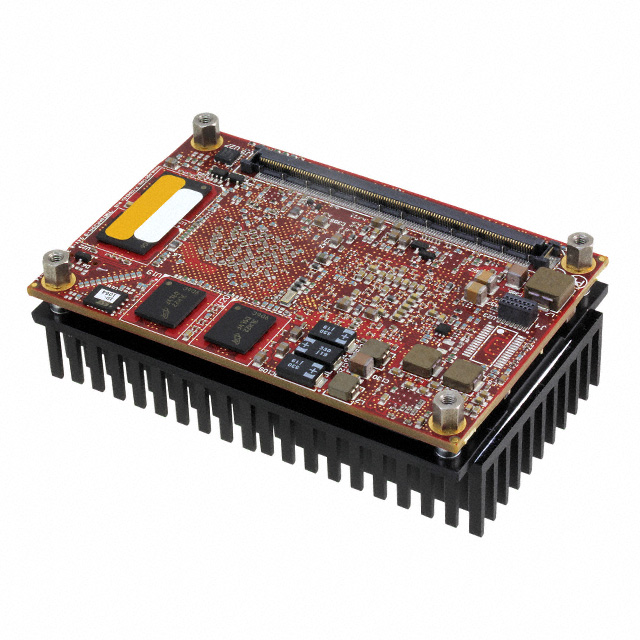

VersaLogic Corporation VL-COMM-26EBK	microSD SATA 2.0 (2) SATA3 (2)	8 W 8.7 W	1			COM Express mini (Type 10)	1 GHz			Heat Sink	85 °C	-40 C	CANbus microSD PCIe SATA SMBus		55 mm	84 mm	2.17 "	3.31 in	DVI LVDS VGA	10 Mbps 100 Mbps 1000 Mbps	1 GB	USB 2.0 (7)

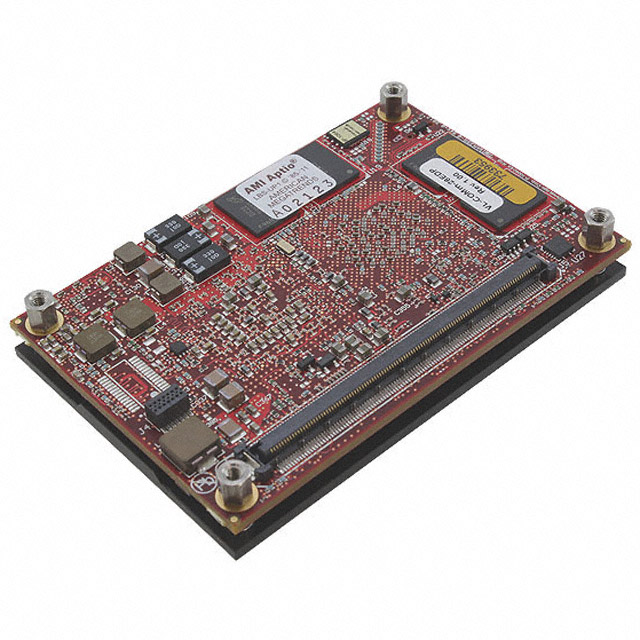

VersaLogic Corporation VL-COMM-26EDP	microSD SATA 2.0 (2) SATA3 (2)	8.4 W 9.5 W	1	2 GB	2 GB	COM Express mini (Type 10)	1.6 GHz			Heat Plate	85 °C	-40 C	CANbus microSD PCIe SATA SMBus	Intel Atom E680T	55 mm	84 mm	2.17 "	3.31 in	DVI LVDS VGA	10 Mbps 100 Mbps 1000 Mbps		USB 2.0 (7)
VersaLogic Corporation VL-COMM-33EB	microSD SATA 2.0 (2) SATA3 (2)	5.6 W		2 GB	2 GB	COM Express mini (Type 10)	1.75 GHz	USB 3.0	USB 2.0	Heat Plate	85 °C	-40 C	GPIO I2C microSD PCIe SATA SMBus SPI	Intel Atom E3827	55 mm	84 mm	2.17 "	3.31 in	DVI LVDS	10 Mbps 100 Mbps 1000 Mbps			2
VersaLogic Corporation VL-COMM-33ED	microSD SATA 2.0 (2) SATA3 (2)	7.3 W				COM Express mini (Type 10)	1.91 GHz	USB 3.0	USB 2.0	Heat Plate	85 °C	-40 C	GPIO I2C microSD PCIe SATA SMBus SPI	Intel Atom E3845	55 mm	84 mm	2.17 "	3.31 in	DVI LVDS	10 Mbps 100 Mbps 1000 Mbps			4

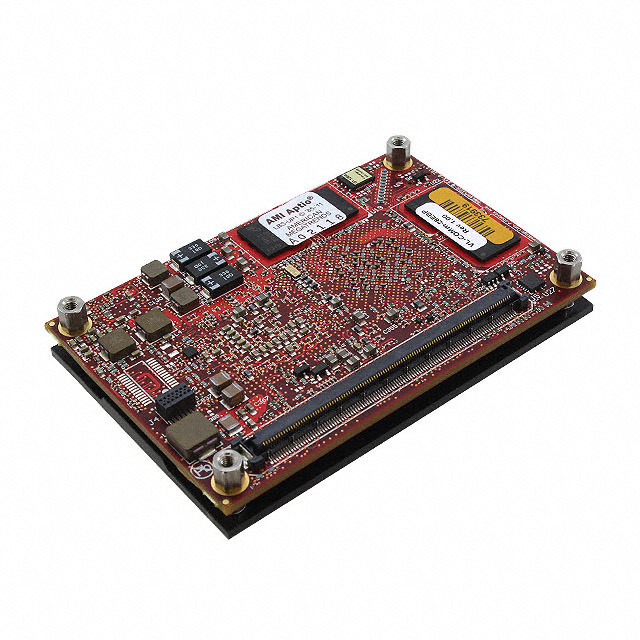

VersaLogic Corporation VL-COMM-26EBP	microSD SATA 2.0 (2) SATA3 (2)	8 W 8.7 W	1			COM Express mini (Type 10)	1 GHz			Heat Plate	85 °C	-40 C	CANbus microSD PCIe SATA SMBus		55 mm	84 mm	2.17 "	3.31 in	DVI LVDS VGA	10 Mbps 100 Mbps 1000 Mbps	1 GB	USB 2.0 (7)

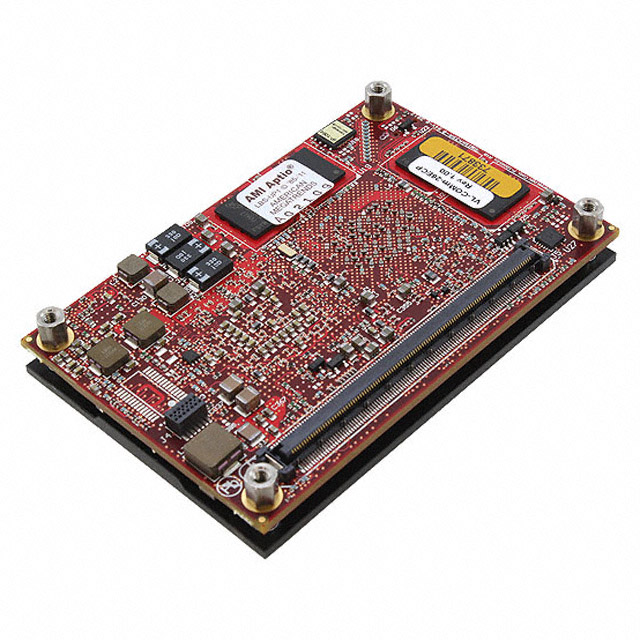

VersaLogic Corporation VL-COMM-26ECP	microSD SATA 2.0 (2) SATA3 (2)	8.4 W 9.5 W	1			COM Express mini (Type 10)	1.6 GHz			Heat Plate	85 °C	-40 C	CANbus microSD PCIe SATA SMBus	Intel Atom E680T	55 mm	84 mm	2.17 "	3.31 in	DVI LVDS VGA	10 Mbps 100 Mbps 1000 Mbps	1 GB	USB 2.0 (7)
VersaLogic Corporation VL-COMM-26EAK	microSD SATA 2.0 (2) SATA3 (2)	7.4 W 7.6 W	1			COM Express mini (Type 10)	600 MHz			Heat Sink	85 °C	-40 C	CANbus microSD PCIe SATA SMBus	Intel Atom E620T	55 mm	84 mm	2.17 "	3.31 in	DVI LVDS VGA	10 Mbps 100 Mbps 1000 Mbps	512 MB	USB 2.0 (7)
