151035 Series
Manufacturer: Molex
Beta
⌘K

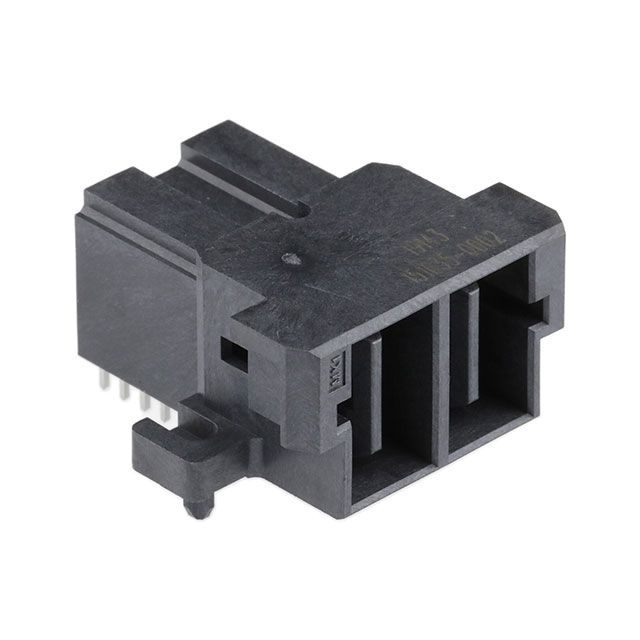

11.00MM PITCH EXTREME GUARDIAN POWER PLUG, RIGHT-ANGLE, GOLD (AU) PLATING, 3.86MM TAIL LENGTH, 6 CIRCUITS, WITH SCREW MOUNT
| Part | Color | Operating Temperature [Min] | Operating Temperature [Max] | Number of Rows | Contact Material | Features | Number of Positions | Material - Insulation | Current Rating (Amps) | Contact Finish Thickness | Contact Finish Thickness | Termination | Fastening Type | Pitch [x] | Pitch [x] | Mounting Type | Connector Type | Voltage Rating | Contact Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Molex | Black | -40 °C | 105 ░C | 1 | Copper Alloy | Board Guide | 6 | Liquid Crystal Polymer (LCP) | 80 A | 0.76 Ám | 30 Áin | Solder | Locking Ramp | 11 mm | 0.433 in | Through Hole Right Angle | Plug Male Blades | 600 V | Gold |
 Molex | Black | -40 °C | 105 ░C | 1 | Copper Alloy | Board Guide | 4 | Liquid Crystal Polymer (LCP) | 80 A | 0.76 Ám | 30 Áin | Solder | Locking Ramp | 11 mm | 0.433 in | Through Hole Right Angle | Plug Male Blades | 600 V | Gold |
Molex | Black | -40 °C | 105 ░C | 1 | Copper Alloy | Board Guide | 4 | Liquid Crystal Polymer (LCP) | 80 A | 0.76 Ám | 30 Áin | Solder | Locking Ramp | 11 mm | 0.433 in | Through Hole Right Angle | Plug Male Blades | 600 V | Gold |
Molex | Black | -40 °C | 105 ░C | 1 | Copper Alloy | Board Guide | 4 | Liquid Crystal Polymer (LCP) | 80 A | 0.76 Ám | 30 Áin | Solder | Locking Ramp | 11 mm | 0.433 in | Through Hole Right Angle | Plug Male Blades | 600 V | Gold |
Molex | Black | -40 °C | 105 ░C | 1 | Copper Alloy | Board Guide | 4 | Liquid Crystal Polymer (LCP) | 80 A | 0.76 Ám | 30 Áin | Solder | Locking Ramp | 11 mm | 0.433 in | Through Hole Right Angle | Plug Male Blades | 600 V | Gold |
 Molex | Black | -40 °C | 105 ░C | 1 | Copper Alloy | Board Guide | 2 | Liquid Crystal Polymer (LCP) | 80 A | 0.76 Ám | 30 Áin | Solder | Locking Ramp | 11 mm | 0.433 in | Through Hole Right Angle | Plug Male Blades | 600 V | Gold |
Molex | Black | -40 °C | 105 ░C | 1 | Copper Alloy | Board Guide | 4 | Liquid Crystal Polymer (LCP) | 80 A | 0.76 Ám | 30 Áin | Solder | Locking Ramp | 11 mm | 0.433 in | Through Hole Right Angle | Plug Male Blades | 600 V | Gold |
Molex | Black | -40 °C | 105 ░C | 1 | Copper Alloy | Board Guide | Liquid Crystal Polymer (LCP) | 80 A | 0.76 Ám | 30 Áin | Solder | Locking Ramp | 11 mm | 0.433 in | Through Hole Right Angle | Plug Male Blades | 600 V | Gold | |
 Molex | Black | -40 °C | 105 ░C | 1 | Copper Alloy | Board Guide | 2 | Liquid Crystal Polymer (LCP) | 80 A | 0.76 Ám | 30 Áin | Solder | Locking Ramp | 11 mm | 0.433 in | Through Hole Right Angle | Plug Male Blades | 600 V | Gold |
Molex | Black | -40 °C | 105 ░C | 1 | Copper Alloy | Board Guide | Liquid Crystal Polymer (LCP) | 80 A | 0.76 Ám | 30 Áin | Solder | Locking Ramp | 11 mm | 0.433 in | Through Hole Right Angle | Plug Male Blades | 600 V | Gold |
