7003-1572 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

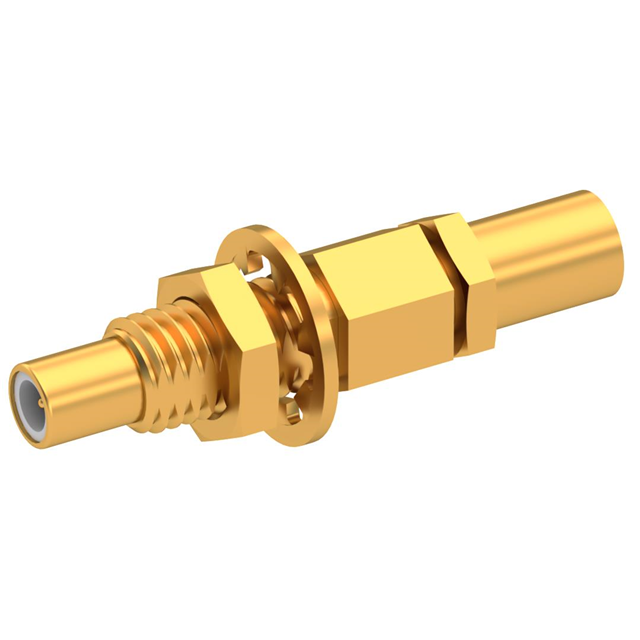

SSMC M STR BHD CR 2/50S
| Part | Dielectric Material | Center Contact Plating | Body Material | Operating Temperature [Min] | Operating Temperature [Max] | Mating Cycles | Body Finish | Voltage Rating | Includes | Housing Color | Shield Termination | Contact Termination | Fastening Type | Center Contact Material | Mounting Feature | Connector Type | Cable Group | Cable Group | Frequency - Max [Max] | Connector Style | Impedance | Number of Ports | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | Gold | Beryllium Copper | -65 ░C | 165 °C | 500 | Gold | 250 V | 1 Connector 1 Lockwasher 1 Nut | Gold | Crimp | Crimp | Snap-On | Beryllium Copper | Bulkhead - Front Side Nut | Jack Male Pin | 196 | RG-178 | 12.4 GHz | SSMC | 50 Ohms | 1 | Panel Mount |
Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | Gold | Beryllium Copper | -65 ░C | 165 °C | 500 | Gold | 250 V | Gold | Crimp | Crimp | Threaded | Beryllium Copper | Bulkhead - Front Side Nut | Jack Male Pin | RG-316 | 12.4 GHz | SSMC | 50 Ohms | 1 | Panel Mount |
