R18303 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

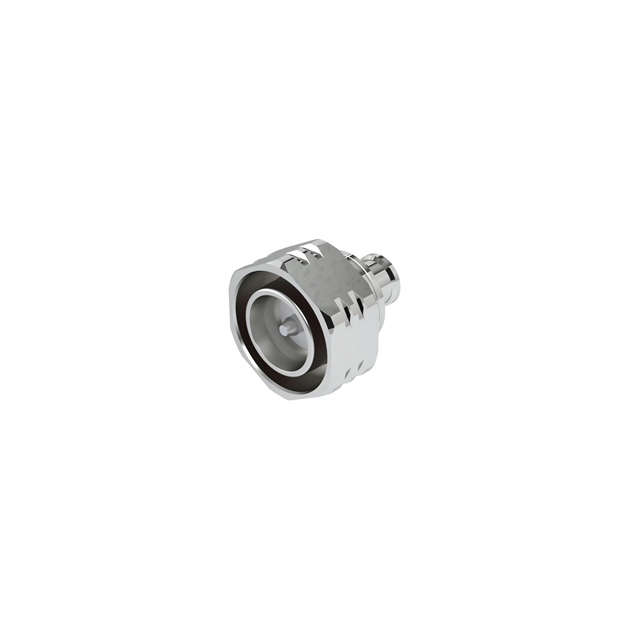

4.3-10 / STRAIGHT PLUG THREAD-IN
| Part | Dielectric Material | Center Contact Plating | Body Material | Operating Temperature [Max] | Operating Temperature [Min] | Body Finish | Voltage Rating | Connector Type | Frequency - Max [Max] | Connector Style | Contact Termination | Shield Termination | Number of Ports | Mounting Type | Housing Color | Fastening Type | Ingress Protection | Center Contact Material | Impedance | Cable Group |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | Silver | Brass | 90 °C | -55 C | White Bronze | 1000 VDC | Plug Male Pin | 6000 MHz | 4.3/10 | Solder | Solder | 1 | Free Hanging (In-Line) | Silver | Threaded | IP67 - Dust Tight Waterproof | Brass | 50 Ohms | |
 Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | Silver | Brass | 90 °C | -55 C | White Bronze | 850 V | Plug Male Pin | 6000 MHz | 4.3/10 | Solder | Solder | 1 | Free Hanging (In-Line) | Silver | Threaded | IP67 - Dust Tight Waterproof | Brass | 50 Ohms | HCF 1/4" |
