745001 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

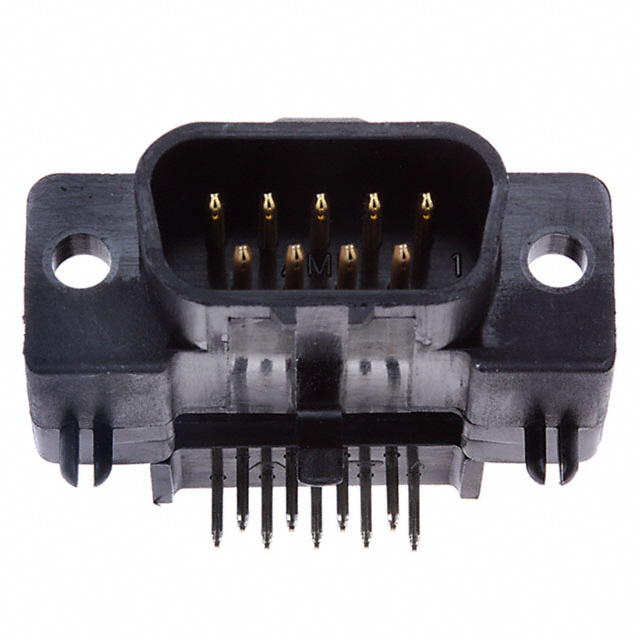

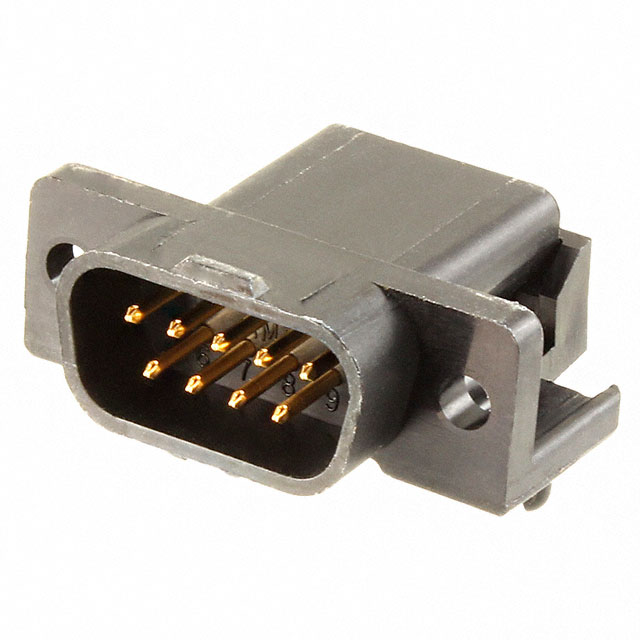

D SUB CONNECTOR, DB9, 9 CONTACTS, PLUG, SOLDER, DE, AMPLIMITE HDJ-20 SERIES, PLASTIC BODY
| Part | Color | Contact Material | Dielectric Material | Contact Finish Thickness | Termination | Connector Type | Backset Spacing | Backset Spacing | Flange Feature | Features | Contact Finish | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Contact Type | Connector Style | Number of Positions | Number of Rows [custom] | Mounting Type | Material Flammability Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Black | Brass | Polyamide (PA) Nylon | Flash | Solder | Plug Male Pins | 0.59 in | 14.99 mm | Housing/Shell (Unthreaded) | Board Lock | Gold | 1 | DE E | Signal | D-Sub | 9 | 2 | Right Angle Through Hole | UL94 V-2 |
 TE Connectivity AMP Connectors | Black | Brass | Polyamide (PA) Nylon | Solder | Plug Male Pins | 0.59 in | 14.99 mm | Housing/Shell (Unthreaded) | Board Lock | Gold | 1 | DE E | Signal | D-Sub | 9 | 2 | Right Angle Through Hole | UL94 V-2 |
