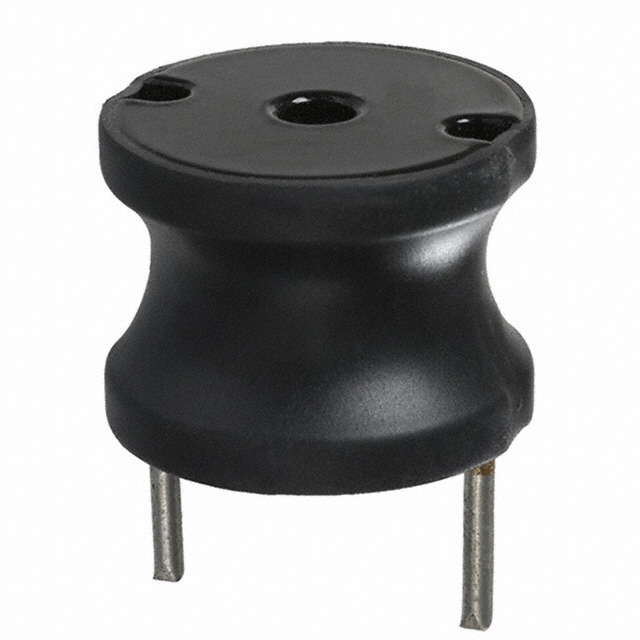

1130 Series
Manufacturer: Bourns Inc.
Beta
⌘K
FIXED IND 33UH 13.5A 17 MOHM TH
| Part | Size / Dimension [diameter] | Size / Dimension [diameter] | Type | Shielding | Inductance | Mounting Type | Material - Core | Package / Case | Inductance Frequency - Test | DC Resistance (DCR) [Max] | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Tolerance | Current Rating (Amps) | Operating Temperature [Min] | Operating Temperature [Max] | DC Resistance (DCR) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | 1.1 " | 27.94 mm | Drum Core Wirewound | Unshielded | 33 µH | Through Hole | Ferrite | Radial Vertical Cylinder | 1 kHz | 17 mOhm | 0.84 in | 21.34 mm | 10 % | 13.5 A | -55 C | 105 ░C | |
 Bourns Inc. | 1.1 " | 27.94 mm | Drum Core Wirewound | Unshielded | 330 µH | Through Hole | Ferrite | Radial | 1 kHz | 0.84 in | 21.34 mm | 10 % | 4.5 A | -55 C | 105 ░C | 122 mOhm | |
Bourns Inc. | 1.1 " | 27.94 mm | Drum Core Wirewound | Unshielded | 47 µH | Through Hole | Ferrite | Radial | 1 kHz | 0.84 in | 21.34 mm | 10 % | 9 A | -55 C | 105 ░C | 24 mOhm | |
Bourns Inc. | 1.1 " | 27.94 mm | Drum Core Wirewound | Unshielded | 1.2 µH | Through Hole | Ferrite | Radial Vertical Cylinder | 1 kHz | 0.84 in | 21.34 mm | 20 % | 21 A | -55 C | 105 ░C | 3 mOhm | |
Bourns Inc. | 1.1 " | 27.94 mm | Drum Core Wirewound | Unshielded | 18 µH | Through Hole | Ferrite | Radial | 1 kHz | 10 mOhm | 0.84 in | 21.34 mm | 10 % | 13.5 A | -55 C | 105 ░C | |
Bourns Inc. | 1.1 " | 27.94 mm | Drum Core Wirewound | Unshielded | 82 µH | Through Hole | Ferrite | Radial Vertical Cylinder | 1 kHz | 0.84 in | 21.34 mm | 10 % | 9 A | -55 C | 105 ░C | 32 mOhm | |
Bourns Inc. | 1.1 " | 27.94 mm | Drum Core Wirewound | Unshielded | Through Hole | Ferrite | Radial Vertical Cylinder | 1 kHz | 46 mOhm | 0.84 in | 21.34 mm | 10 % | 7.2 A | -55 C | 105 ░C | ||
Bourns Inc. | 1.1 " | 27.94 mm | Drum Core Wirewound | Unshielded | 47 µH | Through Hole | Ferrite | Radial Vertical Cylinder | 1 kHz | 0.84 in | 21.34 mm | 10 % | 9 A | -55 C | 105 ░C | 24 mOhm | |
Bourns Inc. | 1.1 " | 27.94 mm | Drum Core Wirewound | Unshielded | 330 µH | Through Hole | Ferrite | Radial Vertical Cylinder | 1 kHz | 0.84 in | 21.34 mm | 10 % | 4.5 A | -55 C | 105 ░C | 122 mOhm | |
Bourns Inc. | 1.1 " | 27.94 mm | Drum Core Wirewound | Unshielded | 2.7 mH | Through Hole | Ferrite | Radial Vertical Cylinder | 1 kHz | 0.84 in | 21.34 mm | 10 % | 1.3 A | -55 C | 105 ░C |
