BD77502FVM Series

EMARMOUR™, Nano Cap™, High Speed Ground Sense Excellent EMI Characteristics CMOS Operational Amplifier

Catalog

EMARMOUR™, Nano Cap™, High Speed Ground Sense Excellent EMI Characteristics CMOS Operational Amplifier

Part	Package / Case	Supplier Device Package	Slew Rate	Voltage - Input Offset	Voltage - Supply Span (Max) [Max]	Number of Circuits	Current - Output / Channel	Current - Input Bias	Amplifier Type	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Current - Supply	Voltage - Supply Span (Min) [Min]	Gain Bandwidth Product

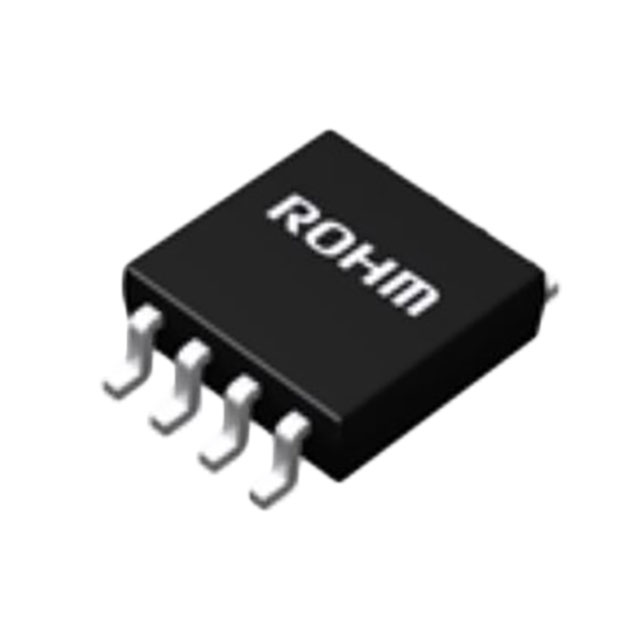

Rohm Semiconductor BD77502FVM-TR	8-MSOP 8-VSSOP	8-MSOP	10 V/çs	4 mV	15 V	2	7.5 mA	1 pA	CMOS	85 °C	-40 °C	Surface Mount	2.6 mA	7 V	8 MHz

Catalog

EMARMOUR™, Nano Cap™, High Speed Ground Sense Excellent EMI Characteristics CMOS Operational Amplifier

Key Features

• EMARMOUR™ Series, Nano Cap™ integrated OPAMP, Operating with a Single Power Supply, Input and output are operable GND sense, High Slew Rate, Wide Operating Supply Voltage Range, High Open Loop Voltage Gain

Description

BD77502FVM are dual Ground Sense CMOS operational amplifier. An operating voltage range is wide with 7V to 15V. This operational amplifier is the most suitable for various applications especially sensor amplifier and so on because it has features of high slew rate and low input bias current. Also, BD77502FVM have the advantage of EMI tolerance. It makes easier replacing with conventional products or simpler designing EMI. Furthermore, this circuit type does not oscillate even with a capacitance of several nF. Set design is possible without worrying about oscillation due to output capacitance.
