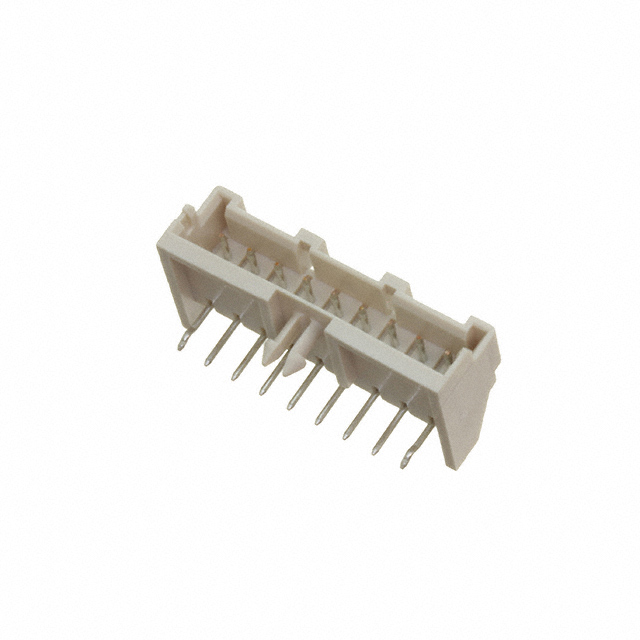

S09B-XAS Series
Manufacturer: JST Sales America Inc.
Beta
⌘K
CONN HEADER R/A 9POS 2.5MM
| Part | Insulation Material | Contact Finish - Post | Operating Temperature [Max] | Operating Temperature [Min] | Contact Material | Insulation Height [z] | Insulation Height | Material Flammability Rating | Connector Type | Pitch - Mating | Pitch - Mating | Contact Type | Termination | Number of Positions Loaded | Number of Positions | Style | Fastening Type | Contact Length - Post [x] | Contact Length - Post [x] | Insulation Color | Current Rating (Amps) | Features | Voltage Rating | Mounting Type | Number of Rows | Shrouding | Contact Shape |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | Glass Filled Nylon 6/6 Polyamide (PA66) | Tin | 85 °C | -25 °C | Copper Alloy | 0.299 " | 7.6 mm | UL94 V-0 | Header | 2.5 mm | 0.098 in | Male Pin | Press-Fit Solder | All | 9 | Board to Cable/Wire | Locking Ramp | 0.126 " | 3.2 mm | Natural | 3 A | Board Lock | 250 V | Right Angle Through Hole | 1 | Shrouded - 4 Wall | Circular |
JST Sales America Inc. | Glass Filled Nylon 6/6 Polyamide (PA66) | Tin | 85 °C | -25 °C | Copper Alloy | 0.299 " | 7.6 mm | UL94 V-0 | Header | 2.5 mm | 0.098 in | Male Pin | Solder | All | 9 | Board to Cable/Wire | Locking Ramp | 0.126 " | 3.2 mm | Natural | 3 A | 250 V | Right Angle Through Hole | 1 | Shrouded - 4 Wall | Circular |
