58328 Series
Manufacturer: Littelfuse/Commercial Vehicle Products
Beta
⌘K
SWITCH ROCKER SPST 25A 12V
| Part | Ingress Protection | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Current Rating (Amps) | Actuator Type | Switch Function | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Termination Style | Color - Actuator/Cap | Mounting Type | Circuit | Voltage Rating - DC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

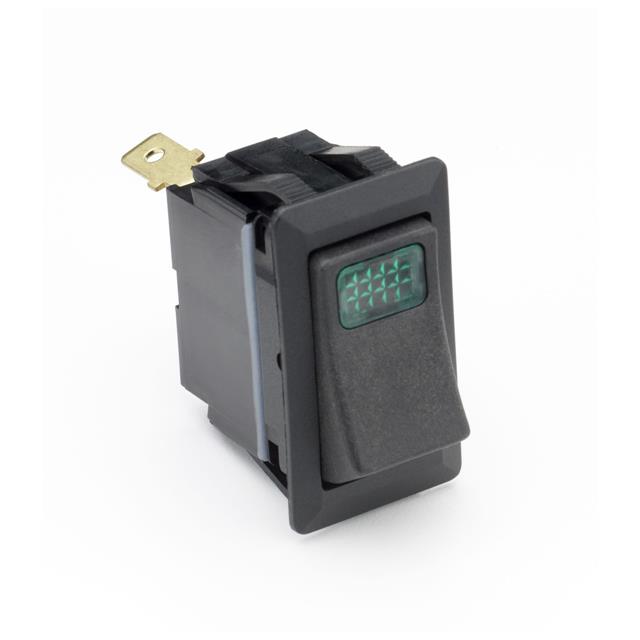

 Littelfuse/Commercial Vehicle Products | IP66 | No Marking | Green Incandescent | 12 VDC | 25 A | Concave (Curved) - Illuminated | On-Off | 21.08 mm | 36.83 mm | Quick Connect - 0.250" (6.3mm) | Black | Panel Mount Snap-In | SPST | 12 V |

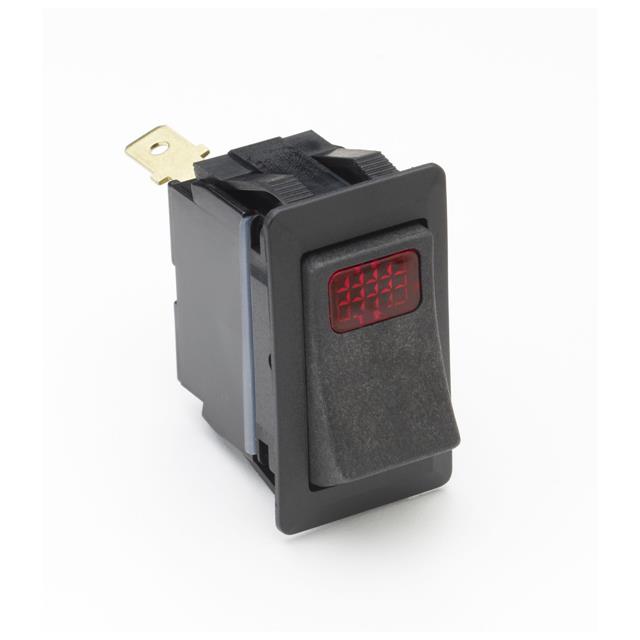

 Littelfuse/Commercial Vehicle Products | IP66 | No Marking | Incandescent Red | 12 VDC | 25 A | Concave (Curved) - Illuminated | On-Off | 21.08 mm | 36.83 mm | Quick Connect - 0.250" (6.3mm) | Black | Panel Mount Snap-In | SPST | 12 V |

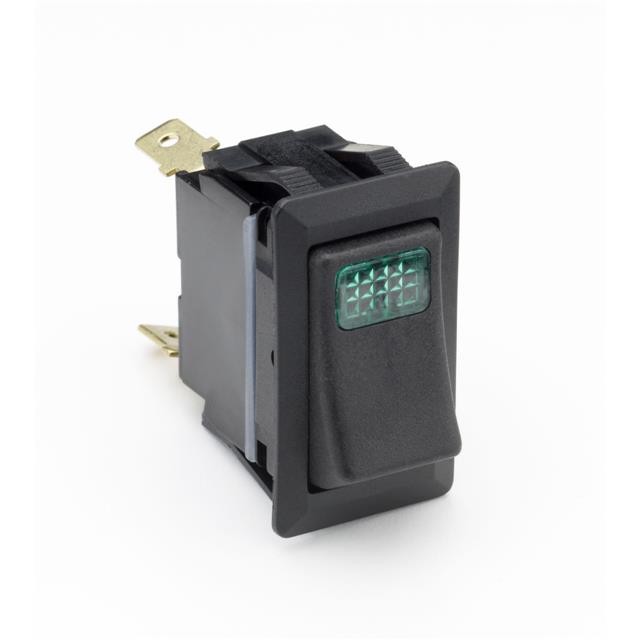

 Littelfuse/Commercial Vehicle Products | IP66 | No Marking | Green Incandescent | 12 VDC | 25 A | Concave (Curved) - Illuminated | On-Off | 21.08 mm | 36.83 mm | Quick Connect - 0.250" (6.3mm) | Black | Panel Mount Snap-In | SPST | 12 V |
