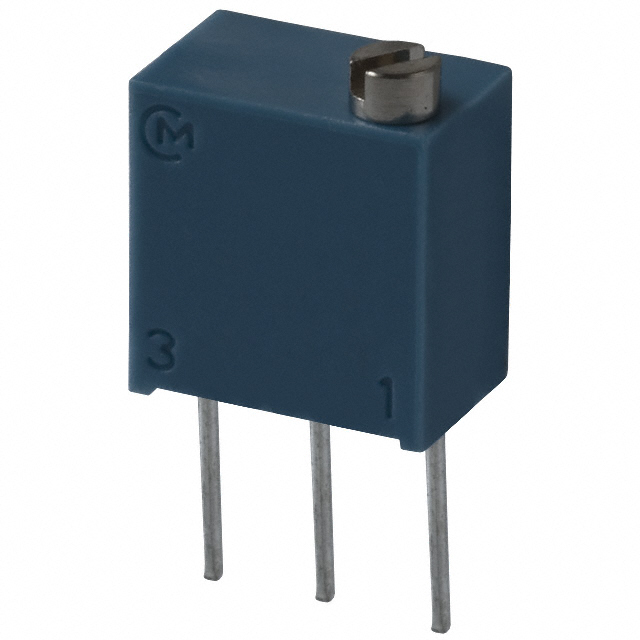

PV37Y Series

Catalog

TRIMMER 1K OHM 0.25W PC PIN TOP

Part	Resistive Material	Resistance	Termination Style	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Temperature Coefficient	Power (Watts)	Power (Watts)	Number of Turns	Tolerance	Adjustment Type	Mounting Type
Bourns Inc. PV37Y102A01B00	Cermet	1000 Ohms	PC Pins	4 mm	0.157 "	6.4 mm	0.252 in	150 ppm/°C	0.25 W	0.25 W	12	10 %	Top Adjustment	Through Hole
Bourns Inc. PV37Y500A01B00	Cermet	50 Ohms	PC Pins	4 mm	0.157 "	6.4 mm	0.252 in	150 ppm/°C	0.25 W	0.25 W	12	10 %	Top Adjustment	Through Hole
Bourns Inc. PV37Y502C01B00	Cermet	5 kOhms	PC Pins	4 mm	0.157 "	6.4 mm	0.252 in	150 ppm/°C	0.25 W	0.25 W	12	10 %	Top Adjustment	Through Hole
Bourns Inc. PV37Y201A01B00	Cermet	200 Ohms	PC Pins	4 mm	0.157 "	6.4 mm	0.252 in	150 ppm/°C	0.25 W	0.25 W	12	10 %	Top Adjustment	Through Hole
Bourns Inc. PV37Y254A01B00	Cermet	250000 Ohms	PC Pins	4 mm	0.157 "	6.4 mm	0.252 in	150 ppm/°C	0.25 W	0.25 W	12	10 %	Top Adjustment	Through Hole
Bourns Inc. PV37Y202C01B00	Cermet	2 kOhms	PC Pins	4 mm	0.157 "	6.4 mm	0.252 in	150 ppm/°C	0.25 W	0.25 W	12	10 %	Top Adjustment	Through Hole
Bourns Inc. PV37Y502A01B00	Cermet	5 kOhms	PC Pins	4 mm	0.157 "	6.4 mm	0.252 in	150 ppm/°C	0.25 W	0.25 W	12	10 %	Top Adjustment	Through Hole
Bourns Inc. PV37Y103C01B00	Cermet	10000 Ohms	PC Pins	4 mm	0.157 "	6.4 mm	0.252 in	150 ppm/°C	0.25 W	0.25 W	12	10 %	Top Adjustment	Through Hole
Bourns Inc. PV37Y103A01B00	Cermet	10000 Ohms	PC Pins	4 mm	0.157 "	6.4 mm	0.252 in	150 ppm/°C	0.25 W	0.25 W	12	10 %	Top Adjustment	Through Hole
Bourns Inc. PV37Y200A01B00	Cermet	20 Ohms	PC Pins	4 mm	0.157 "	6.4 mm	0.252 in	150 ppm/°C	0.25 W	0.25 W	12	10 %	Top Adjustment	Through Hole
