171090 Series

EXTreme Ten60Power Right-Angle Receptacle with Guides, 5 Split Power Circuits, 15 Signal Circuits, Press Fit Tail

Manufacturer: Molex

Catalog

EXTreme Ten60Power Right-Angle Receptacle with Guides, 5 Split Power Circuits, 15 Signal Circuits, Press Fit Tail

Part	Contact Layout, Typical [custom]	Contact Layout, Typical [custom]	Contact Finish Thickness	Contact Finish Thickness	Number of Positions Loaded	Material Flammability Rating	Contact Finish	Color	Mounting Type	Current Rating (Amps)	Connector Style	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Features	Number of Positions	Connector Type	Voltage Rating	Number of Positions

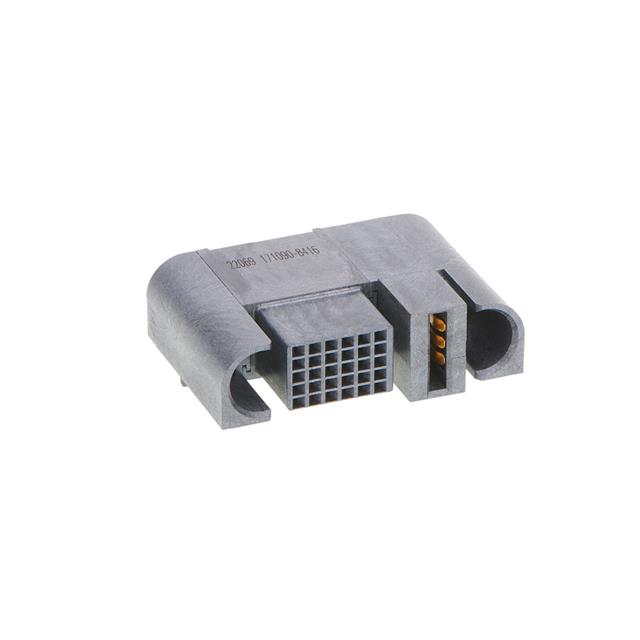

Molex 1710908416	30	1	0.76 Ám	30 Áin	All	UL94 V-0	Gold	Black	Through Hole Right Angle	2.5 A 30 A	EXTreme Ten60Power	-40 °C	105 ░C	Press-Fit	Board Guide Mating Guide	31	Blade Sockets Female Sockets Receptacle	600 V

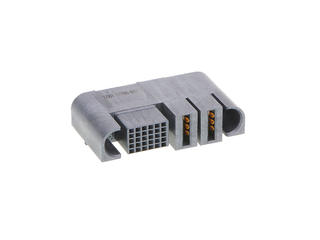

Molex 1710908417	30	2	0.76 Ám	30 Áin	All	UL94 V-0	Gold	Black	Through Hole Right Angle	2.5 A 30 A	EXTreme Ten60Power	-40 °C	105 ░C	Press-Fit	Board Guide Mating Guide		Blade Sockets Female Sockets Receptacle	600 V

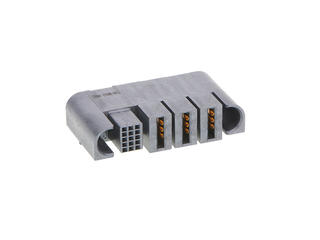

Molex 1710908413	15	3	0.76 Ám	30 Áin	All	UL94 V-0	Gold	Black	Through Hole Right Angle	2.5 A 30 A	EXTreme Ten60Power	-40 °C	105 ░C	Press-Fit	Board Guide Mating Guide	18	Blade Sockets Female Sockets Receptacle	600 V

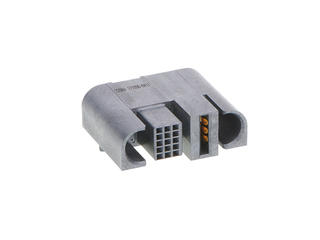

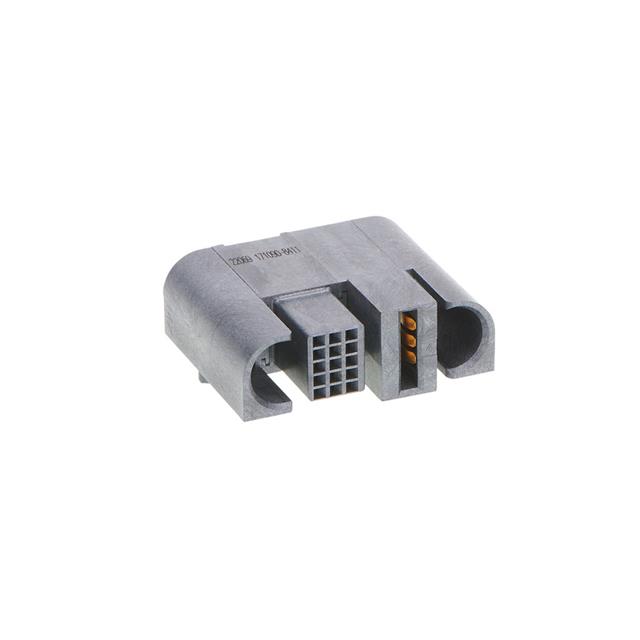

Molex 1710908411	15	1	0.76 Ám	30 Áin	All	UL94 V-0	Gold	Black	Through Hole Right Angle	2.5 A 30 A	EXTreme Ten60Power	-40 °C	105 ░C	Press-Fit	Board Guide Mating Guide		Blade Sockets Female Sockets Receptacle	600 V	16

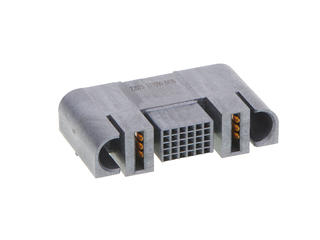

Molex 1710908426	30	2	0.76 Ám	30 Áin	All	UL94 V-0	Gold	Black	Through Hole Right Angle	2.5 A 30 A	EXTreme Ten60Power	-40 °C	105 ░C	Press-Fit	Board Guide Mating Guide	31	Blade Sockets Female Sockets Receptacle	600 V
Molex 1710908418	30	3	0.76 Ám	30 Áin	All	UL94 V-0	Gold	Black	Through Hole Right Angle	2.5 A 30 A	EXTreme Ten60Power	-40 °C	105 ░C	Press-Fit	Board Guide Mating Guide	33	Blade Sockets Female Sockets Receptacle	600 V
Molex 1710908421	15	2	0.76 Ám	30 Áin	All	UL94 V-0	Gold	Black	Through Hole Right Angle	2.5 A 30 A	EXTreme Ten60Power	-40 °C	105 ░C	Press-Fit	Board Guide Mating Guide		Blade Sockets Female Sockets Receptacle	600 V	16

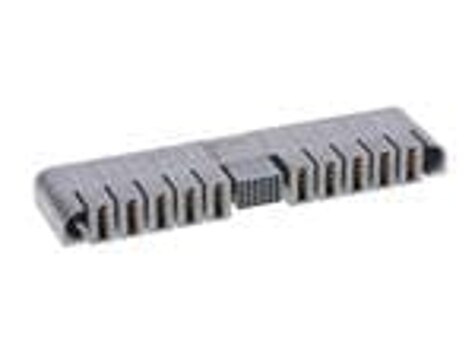

Molex 1710908430	30	10	0.76 Ám	30 Áin	All	UL94 V-0	Gold	Black	Through Hole Right Angle	2.5 A 30 A	EXTreme Ten60Power	-40 °C	105 ░C	Press-Fit	Board Guide Mating Guide	35	Blade Sockets Female Sockets Receptacle	600 V

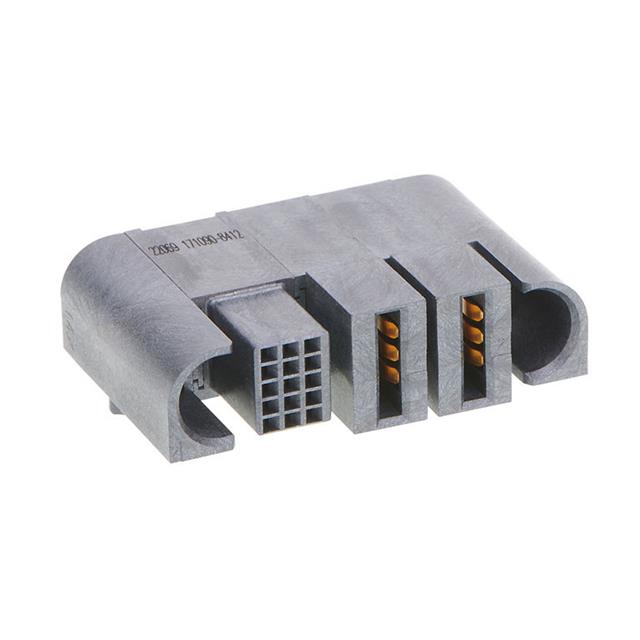

Molex 1710908412	15	2	0.76 Ám	30 Áin	All	UL94 V-0	Gold	Black	Through Hole Right Angle	2.5 A 30 A	EXTreme Ten60Power	-40 °C	105 ░C	Press-Fit	Board Guide Mating Guide		Blade Sockets Female Sockets Receptacle	600 V

Catalog

EXTreme Ten60Power Right-Angle Receptacle with Guides, 5 Split Power Circuits, 15 Signal Circuits, Press Fit Tail
