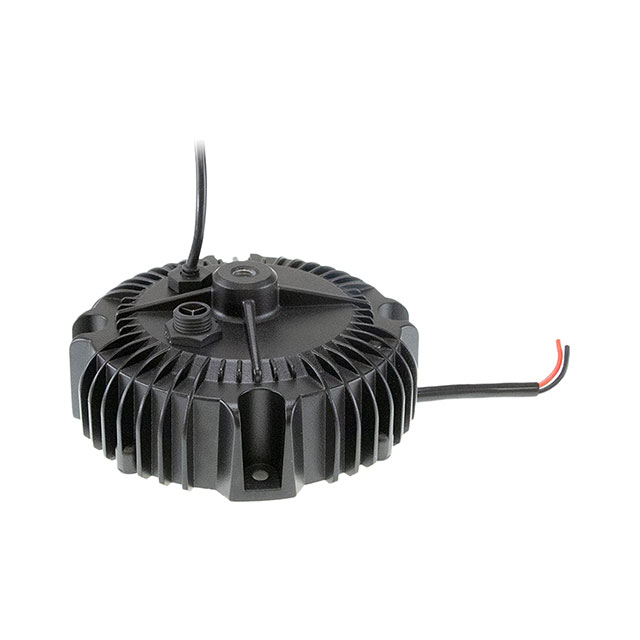

XBG-160 Series

Catalog

O/P +34~56V3.3A

Part	Mounting Type	Type	Approval Agency	Voltage - Output [Min]	Voltage - Output [Max]	Voltage - Isolation	Operating Temperature [Max]	Operating Temperature [Min]	Number of Outputs	Topology	Current - Output (Max) [Max]	Size / Dimension [z]	Size / Dimension [diameter]	Size / Dimension [diameter]	Size / Dimension [z]	Ratings	Power (Watts)	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]	Termination Style	Features	Efficiency	Dimming
MEAN WELL USA Inc. XBG-160-A	Chassis Mount	Constant Current	CB CCC CE cURus ENEC	34 V	56 V	3750 VDC	90 °C	-40 C	1	AC DC Converter	3.3 A	2.36 in	5.96 in	151.5 mm	60 mm	IP67	160 W	305 VAC	90 VAC	Wire Leads	OCP OTP OVP SCP	93 %
MEAN WELL USA Inc. XBG-160-AB-C	Chassis Mount	Constant Current	CB CCC CE cURus ENEC	34 V	56 V	3750 VDC	90 °C	-40 C	1	AC DC Converter	3.3 A	2.36 in	5.96 in	151.5 mm	60 mm	IP67	160 W	305 VAC	90 VAC	Wire Leads	OCP OTP OVP SCP	93 %	Analog PWM
MEAN WELL USA Inc. XBG-160-A-C	Chassis Mount	Constant Current	CB CCC CE cURus ENEC	34 V	56 V	3750 VDC	90 °C	-40 C	1	AC DC Converter	3.3 A	2.36 in	5.96 in	151.5 mm	60 mm	IP67	160 W	305 VAC	90 VAC	Wire Leads	OCP OTP OVP SCP	93 %
MEAN WELL USA Inc. XBG-160-AB	Chassis Mount	Constant Current	CB CCC CE cURus ENEC	34 V	56 V	3750 VDC	90 °C	-40 C	1	AC DC Converter	3.3 A	2.36 in	5.96 in	151.5 mm	60 mm	IP67	160 W	305 VAC	90 VAC	Wire Leads	OCP OTP OVP SCP	93 %	Analog PWM
