WM022 Series

Manufacturer: Serpac

Catalog

BOX ABS ALMOND 4.1"L X 2.6"W

Part	Weight	Weight	Container Type	Design	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Material Flammability Rating	Material	Ratings	Thickness	Thickness	Features	Area (L x W)	Area (L x W)	Height [z]	Height [z]	Color

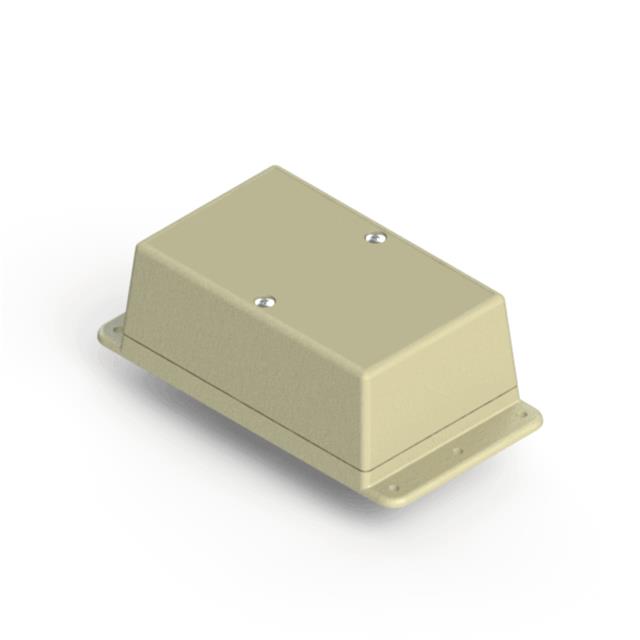

Serpac WM022RI,AL	70.31 g	0.155 lb	Box	Cover Included	2.6 in	104.14 mm	4.1 "	66.04 mm	UL94 HB	ABS Plastic	IP40 NEMA 1	2.54 mm	0.1 in	Front Access Mounting Flange PCB Supports Wall Mount	69 cm²	10.7 in²	1.6 "	40.64 mm	Almond

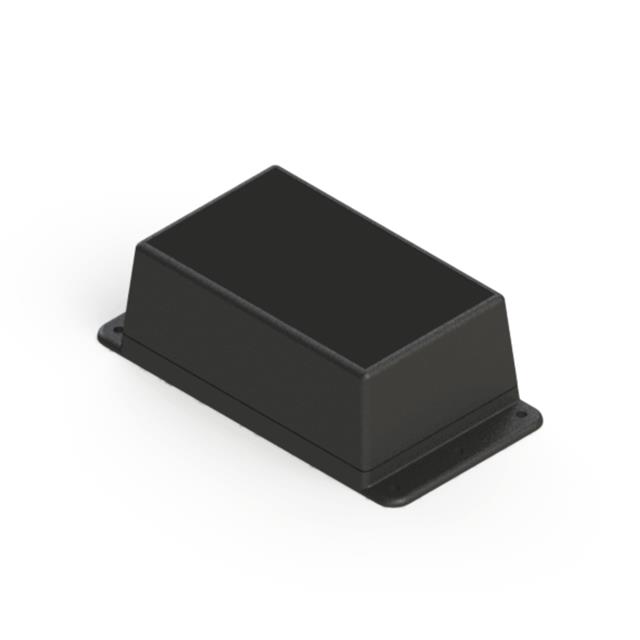

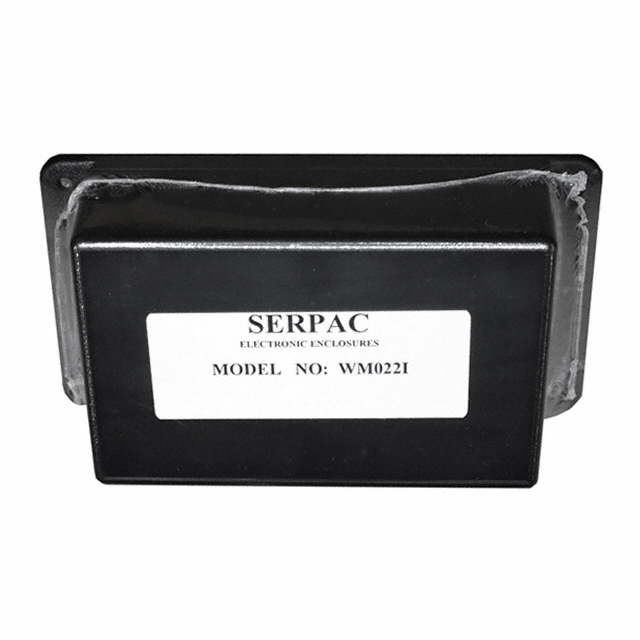

Serpac WM022I,BK	70.31 g	0.155 lb	Box	Cover Included	2.6 in	104.14 mm	4.1 "	66.04 mm	UL94 HB	ABS Plastic	IP40 NEMA 1	2.54 mm	0.1 in	Mounting Flange PCB Supports Wall Mount	69 cm²	10.7 in²	1.6 "	40.64 mm	Black

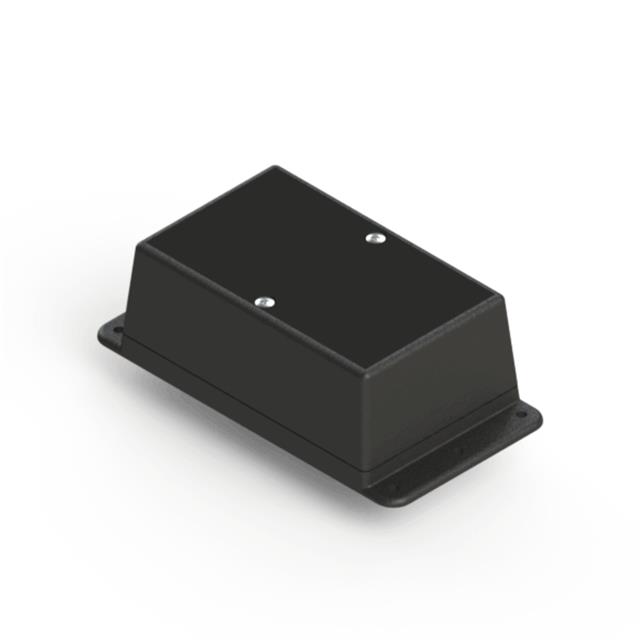

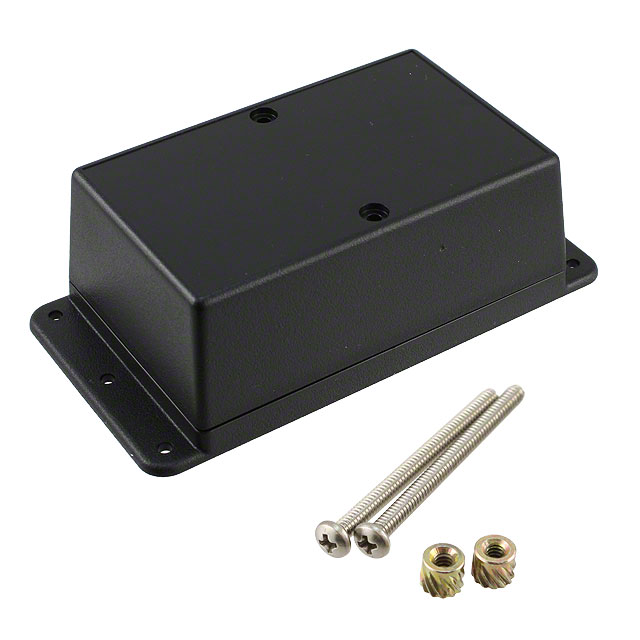

Serpac WM022RI,BK	70.31 g	0.155 lb	Box	Cover Included	2.6 in	104.14 mm	4.1 "	66.04 mm	UL94 HB	ABS Plastic	IP40 NEMA 1	2.54 mm	0.1 in	Front Access Mounting Flange PCB Supports Wall Mount	69 cm²	10.7 in²	1.6 "	40.64 mm	Black
Serpac WM022I,GY	70.31 g	0.155 lb	Box	Cover Included	2.6 in	104.14 mm	4.1 "	66.04 mm	UL94 HB	ABS Plastic	IP40 NEMA 1	2.54 mm	0.1 in	Mounting Flange PCB Supports Wall Mount	69 cm²	10.7 in²	1.6 "	40.64 mm	Gray

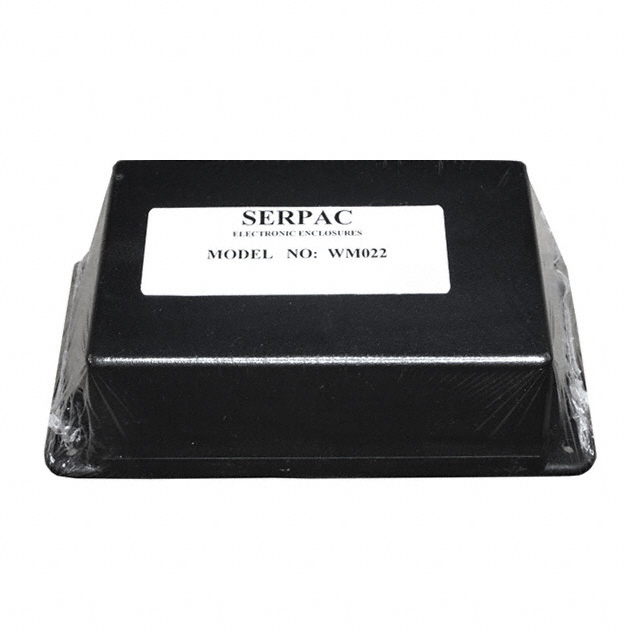

Serpac WM022,BK	70.31 g	0.155 lb	Box	Cover Included	2.6 in	104.14 mm	4.1 "	66.04 mm	UL94 HB	ABS Plastic	IP40 NEMA 1	2.54 mm	0.1 in	Mounting Flange PCB Supports Wall Mount	69 cm²	10.7 in²	1.6 "	40.64 mm	Black

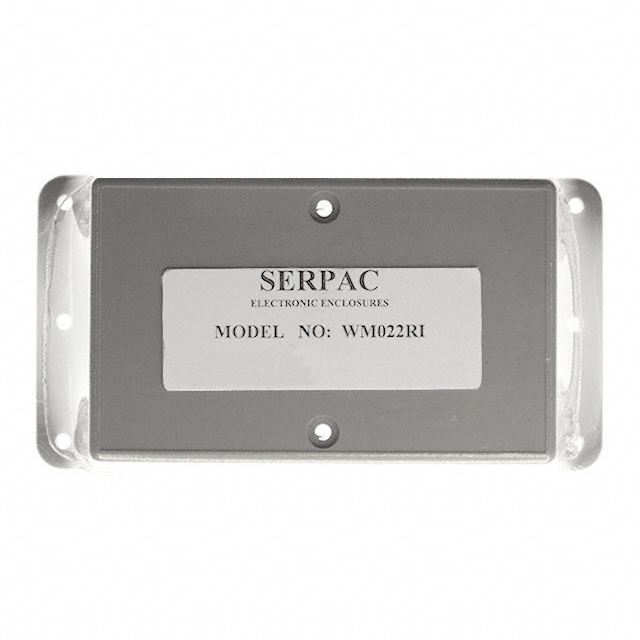

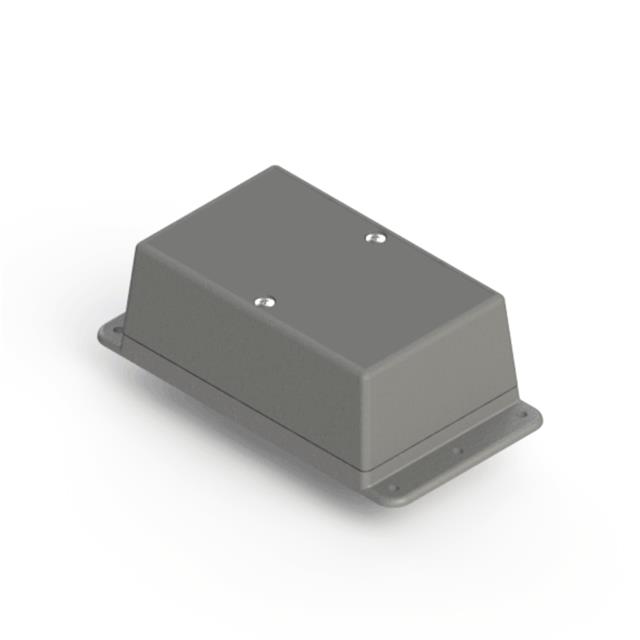

Serpac WM022RI,GY	70.31 g	0.155 lb	Box	Cover Included	2.6 in	104.14 mm	4.1 "	66.04 mm	UL94 HB	ABS Plastic	IP40 NEMA 1	2.54 mm	0.1 in	Front Access Mounting Flange PCB Supports Wall Mount	69 cm²	10.7 in²	1.6 "	40.64 mm	Gray

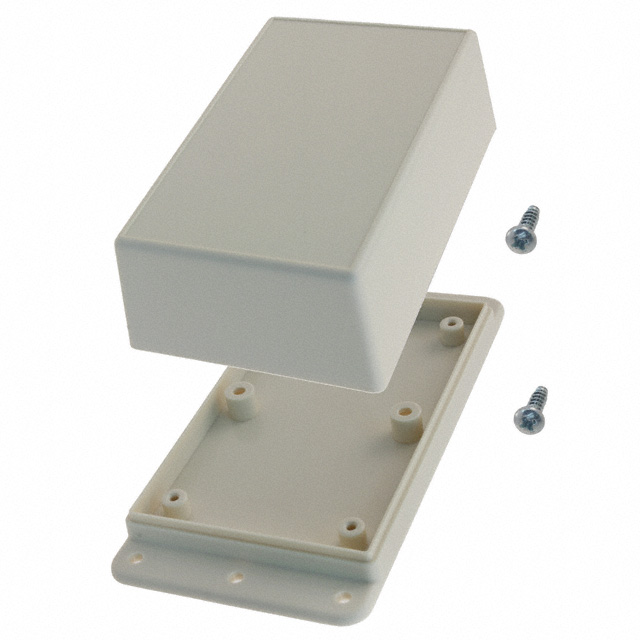

Serpac WM022I,AL	70.31 g	0.155 lb	Box	Cover Included	2.6 in	104.14 mm	4.1 "	66.04 mm	UL94 HB	ABS Plastic	IP40 NEMA 1	2.54 mm	0.1 in	Mounting Flange PCB Supports Wall Mount	69 cm²	10.7 in²	1.6 "	40.64 mm	Almond

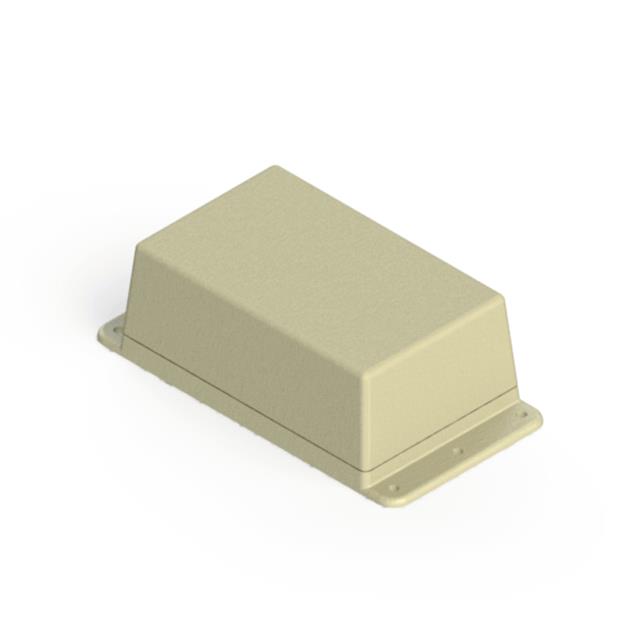

Serpac WM022,AL	70.31 g	0.155 lb	Box	Cover Included	2.6 in	104.14 mm	4.1 "	66.04 mm	UL94 HB	ABS Plastic	IP40 NEMA 1	2.54 mm	0.1 in	Mounting Flange PCB Supports Wall Mount	69 cm²	10.7 in²	1.6 "	40.64 mm	Almond

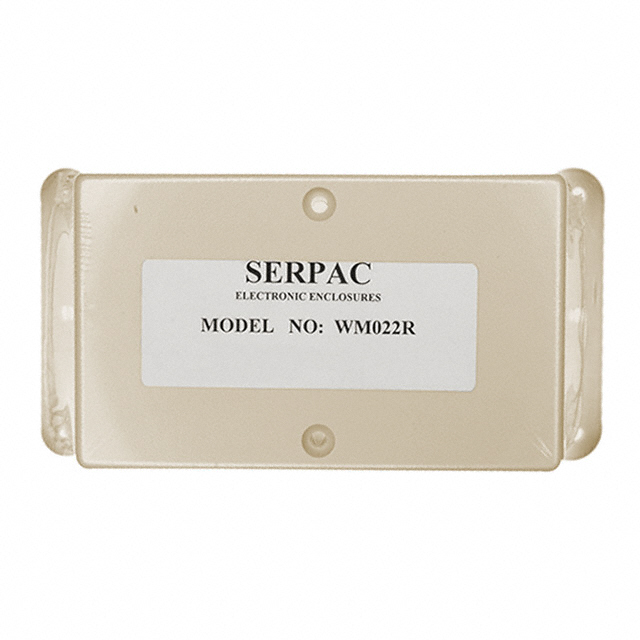

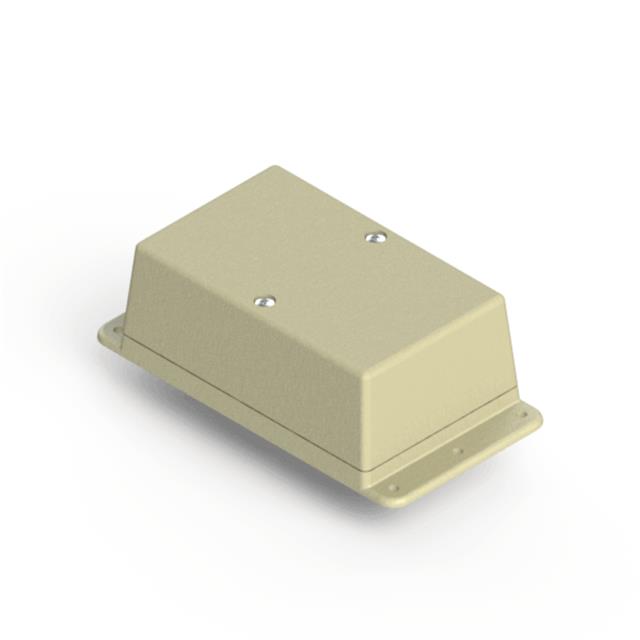

Serpac WM022R,AL	70.31 g	0.155 lb	Box	Cover Included	2.6 in	104.14 mm	4.1 "	66.04 mm	UL94 HB	ABS Plastic	IP40 NEMA 1	2.54 mm	0.1 in	Front Access Mounting Flange PCB Supports Wall Mount	69 cm²	10.7 in²	1.6 "	40.64 mm	Almond

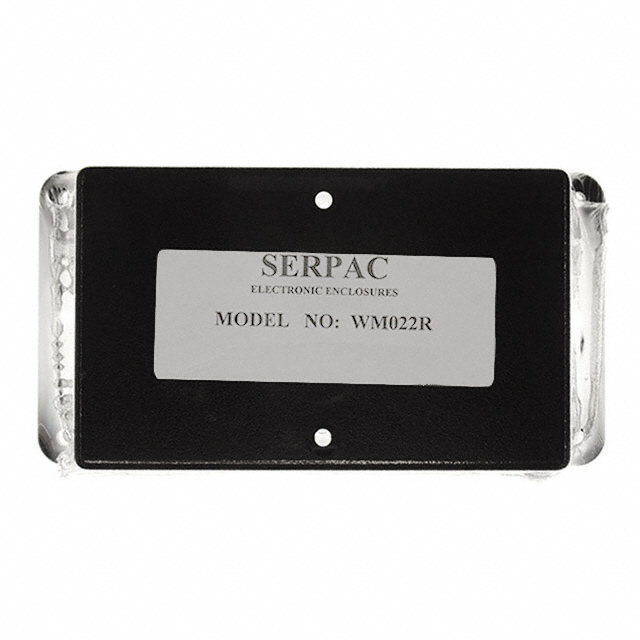

Serpac WM022R,BK	70.31 g	0.155 lb	Box	Cover Included	2.6 in	104.14 mm	4.1 "	66.04 mm	UL94 HB	ABS Plastic	IP40 NEMA 1	2.54 mm	0.1 in	Front Access Mounting Flange PCB Supports Wall Mount	69 cm²	10.7 in²	1.6 "	40.64 mm	Black
