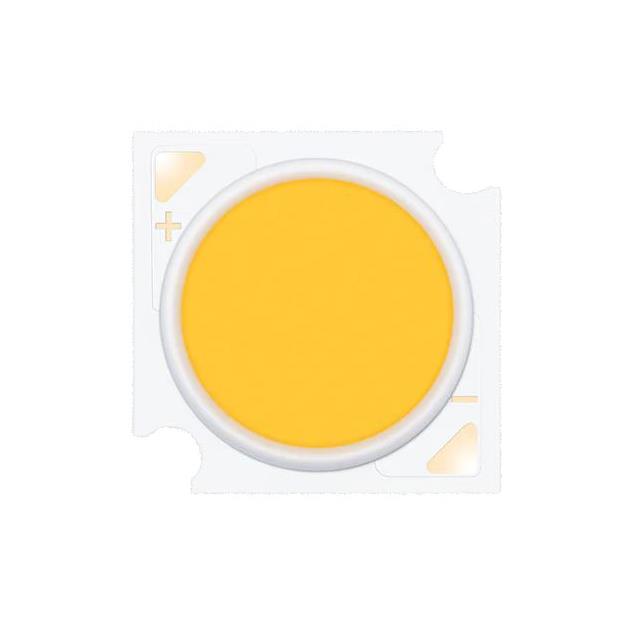

SPHWHAHDNH25 Series

Manufacturer: Samsung Semiconductor, Inc.

Catalog

LED COB C-SER GEN2 WHT SQ 4000K

Part	Viewing Angle	Light Emitting Surface (LES) [diameter]	CRI (Color Rendering Index)	Lumens/Watt @ Current - Test	Configuration	Current - Max [Max]	Lens Type	Size / Dimension [y]	Size / Dimension [x]	Height [z]	Current - Test	Luminous Flux @ Current/Temperature	Color	Voltage - Forward (Vf) (Typ)	Temperature - Test	CCT (K)	CCT (K)	Type
Samsung Semiconductor, Inc. SPHWHAHDNH25YZT3C2	115 °	11.5 mm	80	132 lm/W	Square	1.38 A	Flat	19 mm	19 mm	1.5 mm	900 mA	4154 lm	Neutral White	35 V	85 °C	4000 K	3-Step MacAdam Ellipse	Chip On Board (COB)
Samsung Semiconductor, Inc. SPHWHAHDNH25YZT3DC	115 °	14.5 mm	80	170 lm/W	Square	1.8 A	Flat	19 mm	19 mm	1.5 mm	900 mA	5150 lm	Neutral White	33.7 V	85 °C	4000 K	3-Step MacAdam Ellipse	Chip On Board (COB)
Samsung Semiconductor, Inc. SPHWHAHDNH25YZW3C2	115 °	11.5 mm	80	120 lm/W	Square	1.38 A	Flat	19 mm	19 mm	1.5 mm	900 mA	3765 lm	Warm White	35 V	85 °C	2700 K	3-Step MacAdam Ellipse	Chip On Board (COB)
Samsung Semiconductor, Inc. SPHWHAHDNH25YZV3DC	115 °	14.5 mm	80	161 lm/W	Square	1.8 A	Flat	19 mm	19 mm	1.5 mm	900 mA	4875 lm	Warm White	33.7 V	85 °C	3000 K	3-Step MacAdam Ellipse	Chip On Board (COB)
Samsung Semiconductor, Inc. SPHWHAHDNH25YZU3D3	115 °	14.5 mm	80	163 lm/W	Square	2.3 A	Flat	19 mm	19 mm	1.5 mm	900 mA	4989 lm	Warm White	34 V	85 °C	3500 K	3-Step MacAdam Ellipse	Chip On Board (COB)
Samsung Semiconductor, Inc. SPHWHAHDNH25YZV3D4	115 °	14.5 mm	80	167 lm/W	Square	2.3 A	Flat	19 mm	19 mm	1.7 mm	900 mA	5044 lm	Warm White	33.6 V	85 °C	3000 K	3-Step MacAdam Ellipse	Chip On Board (COB)
Samsung Semiconductor, Inc. SPHWHAHDNH25YZQ3D3	115 °	14.5 mm	80	168 lm/W	Square	2.3 A	Flat	19 mm	19 mm	1.5 mm	900 mA	5132 lm	Cool White	34 V	85 °C	5700 K	3-Step MacAdam Ellipse	Chip On Board (COB)
Samsung Semiconductor, Inc. SPHWHAHDNH25YZV3C2	115 °	11.5 mm	80	126 lm/W	Square	1.38 A	Flat	19 mm	19 mm	1.5 mm	900 mA	3956 lm	Warm White	35 V	85 °C	3000 K	3-Step MacAdam Ellipse	Chip On Board (COB)
Samsung Semiconductor, Inc. SPHWHAHDNH25YZU3DB	115 °	14.5 mm	80	156 lm/W	Square	1.8 A	Flat	19 mm	19 mm	1.5 mm	900 mA	4779 lm	Warm White	34 V	85 °C	3500 K	3-Step MacAdam Ellipse	Chip On Board (COB)
Samsung Semiconductor, Inc. SPHWHAHDNH25YZW2D2	115 °	14.5 mm	80	142 lm/W	Square	2.3 A	Flat	19 mm	19 mm	1.5 mm	900 mA	4418 lm	Warm White	34.6 V	85 °C	2700 K	2-Step MacAdam Ellipse	Chip On Board (COB)
