B3M Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K

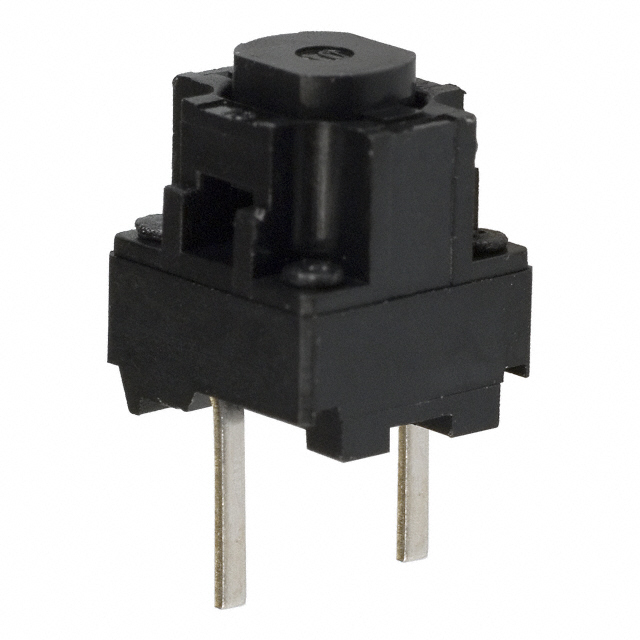

SWITCH TACTILE SPST-NO 0.05A 12V
| Part | Mechanical Life | Switch Travel | Circuit | Switch Function | Actuator Orientation | Termination Style | Actuator Type | Operating Temperature [Min] | Operating Temperature [Max] | Actuator Height off PCB, Vertical [z] | Contact Rating @ Voltage | Illumination | Operating Force | Mounting Type | Outline [x] | Outline [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Electronics Inc-EMC Div | 2000000 Cycles | 0.5 mm | SPST-NO | Off-Mom | Top Actuated | PC Pin | Standard | -25 °C | 70 °C | 7.3 mm | 0.05 A 12 VDC | Non-Illuminated | 70 gf | Through Hole | 6 mm | 6 mm |
