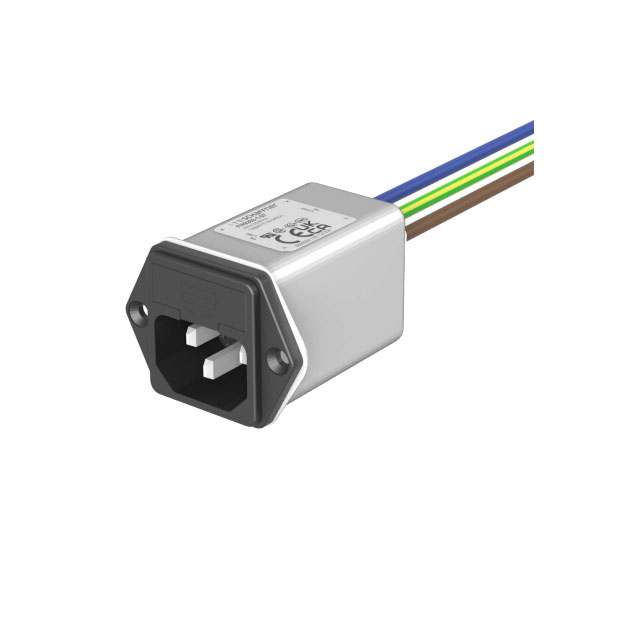

Schaffner FN9262 Series

AC Power Entry Modules 4A 7mH 250VAC SnapIn SafetyVersion

Manufacturer: TE Connectivity AMP Connectors

Catalog

AC Power Entry Modules 4A 7mH 250VAC SnapIn SafetyVersion

Catalog

AC Power Entry Modules 4A 7mH 250VAC SnapIn SafetyVersion

...

Part	Fuse Holder, Drawer	Accomodates a Fuse	Ingress Protection	Approval Agency	Termination	Termination	Termination	Filter Type	Current Rating - Filter	Connector Style	Material Flammability Rating	Mounting Type	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Connector Type	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Max]	Panel Thickness [Min]	Features
TE Connectivity AMP Connectors FN9262-1-06	Twin Fused		IP40	CE CQC CSA ENEC UL	6.3 mm	Quick Connect	0.25 "	Filtered (EMI RFI) - Commercial	1 A	IEC 320-C14	UL94 V-0	Flange Panel Mount	33 mm	29 mm	Receptacle Male Blades - Module
TE Connectivity AMP Connectors FN9262SA-4-06	Twin Fused		IP40	CE CQC CSA ENEC UL	6.3 mm	Quick Connect	0.25 "	Filtered (EMI RFI) - Commercial	4 A	IEC 320-C14	UL94 V-0	Panel Mount Snap-In	33 mm	29.5 mm	Receptacle Male Blades - Module	1.5 mm	0.6 mm	0.059 in	0.024 in	Safety Version
TE Connectivity AMP Connectors FN9262SA-4-06	Twin Fused		IP40	CE CQC CSA ENEC UL	6.3 mm	Quick Connect	0.25 "	Filtered (EMI RFI) - Commercial	4 A	IEC 320-C14	UL94 V-0	Panel Mount Snap-In	33 mm	29.5 mm	Receptacle Male Blades - Module	1.5 mm	0.6 mm	0.059 in	0.024 in	Safety Version
TE Connectivity AMP Connectors FN9262SB-6-07	Twin Fused		IP40	CQC CSA ENEC UL		Wire Leads		Filtered (EMI RFI) - Commercial Medical	6 A	IEC 320-C14	UL94 V-0	Panel Mount Snap-In	33 mm	29.5 mm	Receptacle Male Blades - Module	1.5 mm	0.6 mm	0.059 in	0.024 in
TE Connectivity AMP Connectors FN9262S-6-06	Twin Fused		IP40	CE CQC CSA ENEC UL	6.3 mm	Quick Connect	0.25 "	Filtered (EMI RFI) - Commercial	6 A	IEC 320-C14	UL94 V-0	Panel Mount Snap-In	33 mm	29.5 mm	Receptacle Male Blades - Module	1.5 mm	0.6 mm	0.059 in	0.024 in
TE Connectivity AMP Connectors FN9262A-1-07	Twin Fused		IP40	CE CQC CSA ENEC UL		Wire Leads		Filtered (EMI RFI) - Commercial	1 A	IEC 320-C14	UL94 V-0	Flange Panel Mount	33 mm	29 mm	Receptacle Male Blades - Module

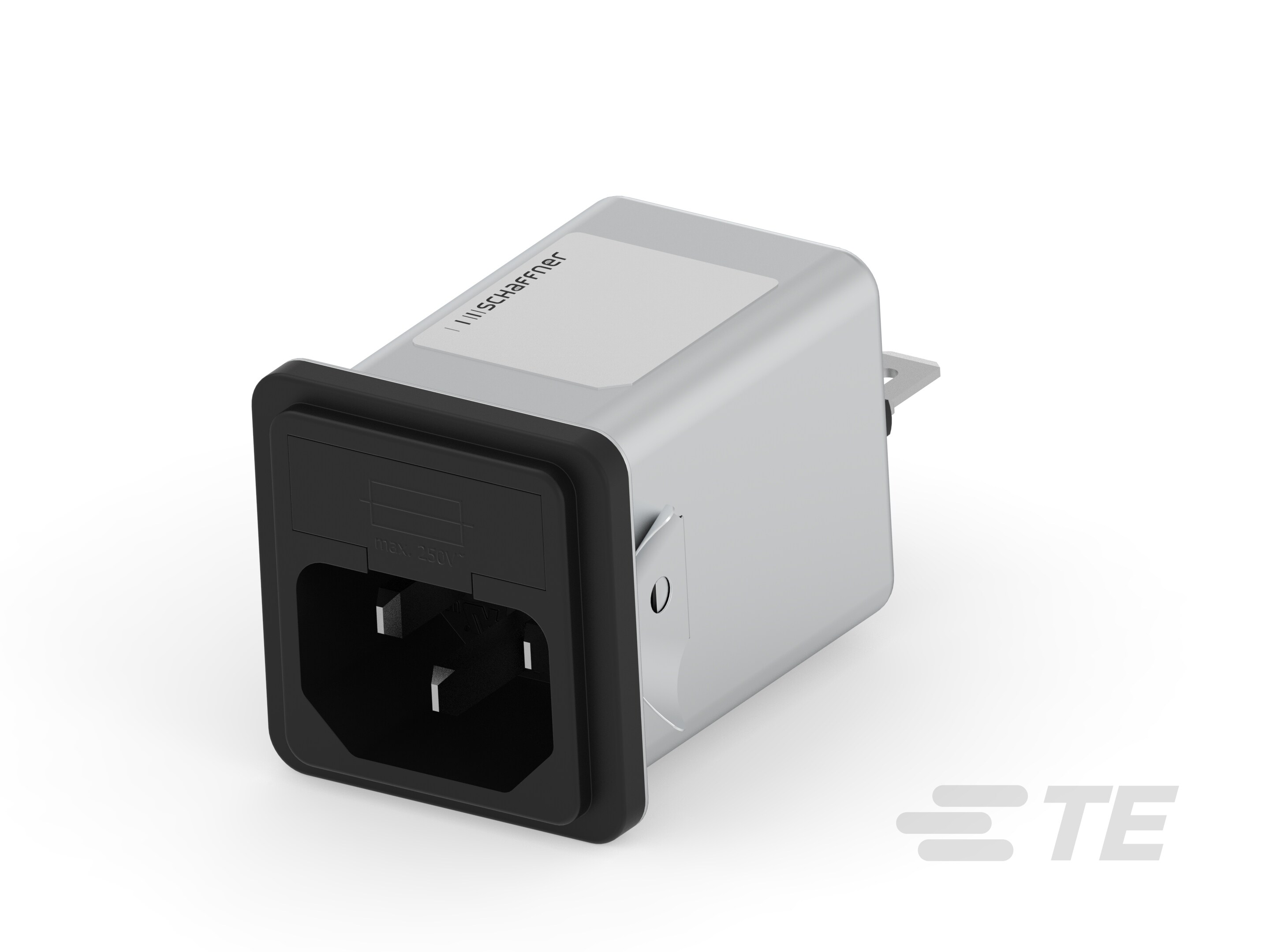

TE Connectivity AMP Connectors FN9262SA-1-06	Twin Fused		IP40	CE CQC CSA ENEC UL	6.3 mm	Quick Connect	0.25 "	Filtered (EMI RFI) - Commercial	1 A	IEC 320-C14	UL94 V-0	Panel Mount Snap-In	33 mm	29.5 mm	Receptacle Male Blades - Module	1.5 mm	0.6 mm	0.059 in	0.024 in	Safety Version
TE Connectivity AMP Connectors FN9262-2-07	Twin Fused		IP40	CQC CSA ENEC UL		Wire Leads		Filtered (EMI RFI) - Commercial	2 A	IEC 320-C14	UL94 V-0	Flange Panel Mount	33 mm	29 mm	Receptacle Male Blades - Module
TE Connectivity AMP Connectors FN9262S-1-06	Twin Fused		IP40	CE CQC CSA ENEC UL	6.3 mm	Quick Connect	0.25 "	Filtered (EMI RFI) - Commercial	1 A	IEC 320-C14	UL94 V-0	Panel Mount Snap-In	33 mm	29.5 mm	Receptacle Male Blades - Module	1.5 mm	0.6 mm	0.059 in	0.024 in
TE Connectivity AMP Connectors FN9262A-4-06	Twin Fused		IP40	CE CQC CSA ENEC UL	6.3 mm	Quick Connect	0.25 "	Filtered (EMI RFI) - Commercial	4 A	IEC 320-C14	UL94 V-0	Flange Panel Mount	33 mm	29 mm	Receptacle Male Blades - Module					Safety Version
