845-102 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE DUAL FML 102POS 0.100

...

Part	Material - Insulation	Termination Rows [custom]	Number of Rows [custom]	Termination	Card Type	Card Thickness [Max]	Card Thickness [Min]	Pitch	Pitch	Operating Temperature [Max]	Operating Temperature [Min]	Contact Type	Read Out	Color	Contact Material	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Flange Feature [diameter]	Flange Feature [diameter]	Number of Positions/Bay/Row [custom]	Contact Finish	Mounting Type	Gender	Features	Flange Feature

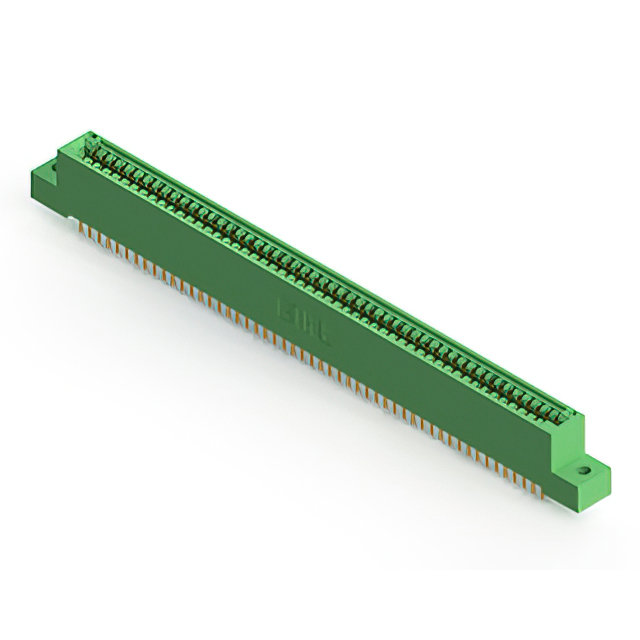

EDAC Inc. 845-102-525-202	Diallyl Phthalate (DAP)	2	2	Solder	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	125 °C	-40 C	Cantilever	Dual	Green	Copper Alloy	102	0.25 Ám	10 Áin	3.25 mm	0.128 "	51	Gold	Through Hole	Female
EDAC Inc. 845-102-559-802	Diallyl Phthalate (DAP)	2	2	Solder	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	125 °C	-40 C	Cantilever	Dual	Green	Copper Alloy	102	0.25 Ám	10 Áin	3.25 mm	0.128 "	51	Gold	Right Angle Through Hole	Female
EDAC Inc. 845-102-524-802	Diallyl Phthalate (DAP)	2	2	Solder	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	125 °C	-40 C	Cantilever	Dual	Green	Copper Alloy	102	0.25 Ám	10 Áin	3.25 mm	0.128 "	51	Gold	Through Hole	Female
EDAC Inc. 845-102-556-807	Diallyl Phthalate (DAP)	2	2	Solder	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	125 °C	-40 C	Cantilever	Dual	Green	Copper Alloy	102	0.25 Ám	10 Áin			51	Gold	Board Edge Straddle Mount	Female	Card Extender	M3 Threaded Insert Top Mount Opening
EDAC Inc. 845-102-542-203	Diallyl Phthalate (DAP)	2	2	Wire Wrap	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	125 °C	-40 C	Cantilever	Dual	Green	Copper Alloy	102	0.25 Ám	10 Áin	2.95 mm	0.116 "	51	Gold	Through Hole	Female		Floating Bobbin Flush Mount
EDAC Inc. 845-102-523-802	Diallyl Phthalate (DAP)	2	2	Solder	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	125 °C	-40 C	Cantilever	Dual	Green	Copper Alloy	102	0.25 Ám	10 Áin	3.25 mm	0.128 "	51	Gold	Through Hole	Female
EDAC Inc. 845-102-541-508	Diallyl Phthalate (DAP)	2	2	Wire Wrap	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	125 °C	-40 C	Cantilever	Dual	Green	Copper Alloy	102	0.25 Ám	10 Áin			51	Gold	Through Hole	Female		4-40 Threaded Insert Top Mount Opening
EDAC Inc. 845-102-500-802	Diallyl Phthalate (DAP)	2	2	Solder Eyelet(s)	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	125 °C	-40 C	Cantilever	Dual	Green	Copper Alloy	102	0.25 Ám	10 Áin	3.25 mm	0.128 "	51	Gold	Through Hole	Female
EDAC Inc. 845-102-500-812	Diallyl Phthalate (DAP)	2	2	Solder Eyelet(s)	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	125 °C	-40 C	Cantilever	Dual	Green	Copper Alloy	102	0.25 Ám	10 Áin	3.25 mm	0.128 "	51	Gold	Through Hole	Female		Side Mount Opening Unthreaded
EDAC Inc. 845-102-559-504	Diallyl Phthalate (DAP)	2	2	Solder	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	125 °C	-40 C	Cantilever	Dual	Green	Copper Alloy	102	0.25 Ám	10 Áin	3.96 mm	0.156 "	51	Gold	Right Angle Through Hole	Female
