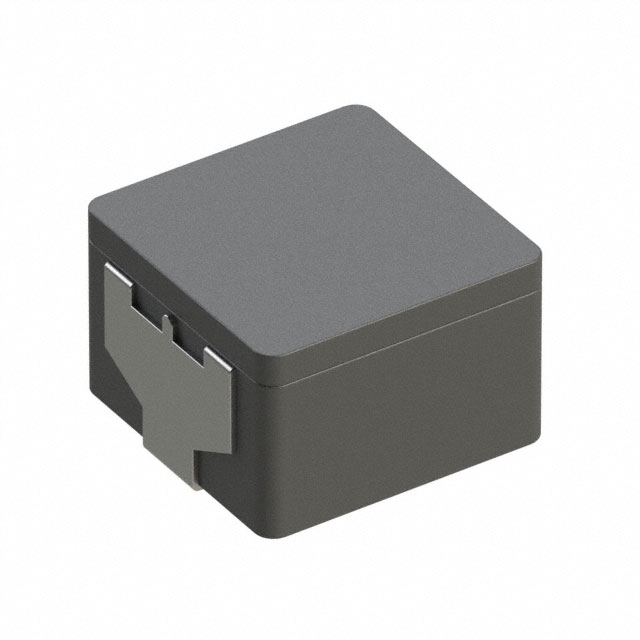

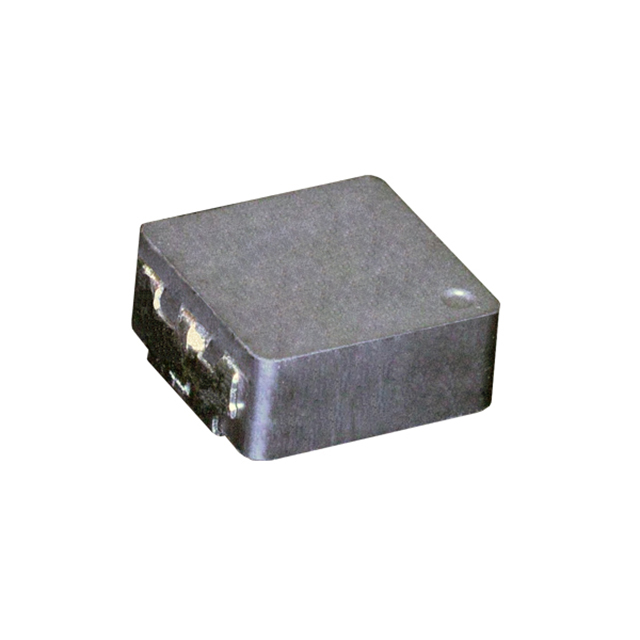

ETQ-P4 Series

Manufacturer: Panasonic Industrial Automation Sales

Catalog

FIXED IND 15UH 4.2A 70.18MOHM SM

Part	Material - Core	Inductance	Tolerance	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Mounting Type	Package / Case	Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Current - Saturation (Isat)	Ratings	DC Resistance (DCR) [Max]	Current Rating (Amps)	Shielding	Inductance Frequency - Test	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	DC Resistance (DCR)	Size / Dimension [y]	Size / Dimension [x]	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [y]	Size / Dimension [x]
Panasonic Industrial Automation Sales ETQ-P4M150KFN	Metal Composite	15 µH	20 %	0.236 "	0.252 "	6 mm	6.4 mm	Surface Mount	2-SMD J-Lead	Drum Core Wirewound	0.189 "	4.8 mm	6.7 A	AEC-Q200	70.18 mOhm	4.2 A	Shielded	100 kHz
Panasonic Industrial Automation Sales ETQ-P4LR36AFC	Metal Composite	360 nH	20 %			10 mm	11.5 mm	Surface Mount	2-SMD J-Lead	Drum Core Wirewound						30 A	Shielded	100 kHz	0.157 in	4 mm	0.76 mOhm	0.394 in	0.453 "
Panasonic Industrial Automation Sales ETQ-P4M220KFM	Metal Composite	22 µH	20 %			7 mm	7.4 mm	Surface Mount	2-SMD J-Lead	Drum Core Wirewound	0.189 "	4.8 mm	4.6 A	AEC-Q200		3.9 A	Shielded	100 kHz			92.51 mOhm	0.276 in	0.291 "
Panasonic Industrial Automation Sales ETQ-P4LR36AFM	Metal Composite	360 nH	20 %			7 mm	8.7 mm	Surface Mount	2-SMD J-Lead	Drum Core Wirewound						20 A	Shielded	100 kHz	0.157 in	4 mm	1.35 mOhm	0.276 in	0.343 in
Panasonic Industrial Automation Sales ETQ-P4M4R7KFN	Metal Composite	4.7 ÁH	20 %	0.236 "	0.252 "	6 mm	6.4 mm	Surface Mount	2-SMD J-Lead	Drum Core Wirewound	0.189 "	4.8 mm	9.3 A	AEC-Q200		7.3 A	Shielded	100 kHz
Panasonic Industrial Automation Sales ETQ-P4LR42AFM	Metal Composite	420 nH	20 %			7 mm	8.7 mm	Surface Mount	2-SMD J-Lead	Drum Core Wirewound						17 A	Shielded	100 kHz	0.157 in	4 mm	1.5 mOhm	0.276 in	0.343 in
Panasonic Industrial Automation Sales ETQ-P4M3R3KVC	Metal Composite	3.3 µH	20 %			10 mm	10.7 mm	Surface Mount	2-SMD J-Lead	Drum Core Wirewound			17.1 A	AEC-Q200	10.34 mOhm	12.6 A	Shielded	100 kHz	0.157 in	4 mm		0.394 in	0.421 in	155 °C	-55 °C
Panasonic Industrial Automation Sales ETQ-P4M100KVK	Metal Composite	10 µH	20 %			0.315 in	0.335 in	Surface Mount	2-SMD J-Lead	Drum Core Wirewound			9.1 A	AEC-Q200	45.76 mOhm	5.2 A	Shielded	100 kHz	0.157 in	4 mm				155 °C	-55 °C	8 mm	8.5 mm
Panasonic Industrial Automation Sales ETQ-P4M4R7YFP	Metal Composite	4.7 ÁH	20 %			5 mm	5.5 mm	Surface Mount	2-SMD J-Lead	Drum Core Wirewound			7.7 A	AEC-Q200	39.6 mOhm	4.8 A	Shielded	100 kHz	0.157 in	4 mm		0.197 "	0.217 "
Panasonic Industrial Automation Sales ETQ-P4LR19WFC	Metal Composite	190 nH	20 %			10 mm	11.5 mm	Surface Mount	2-SMD J-Lead	Drum Core Wirewound						28 A	Shielded	100 kHz	0.157 in	4 mm	0.7 mOhm	0.394 in	0.453 "
