9003-1213 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

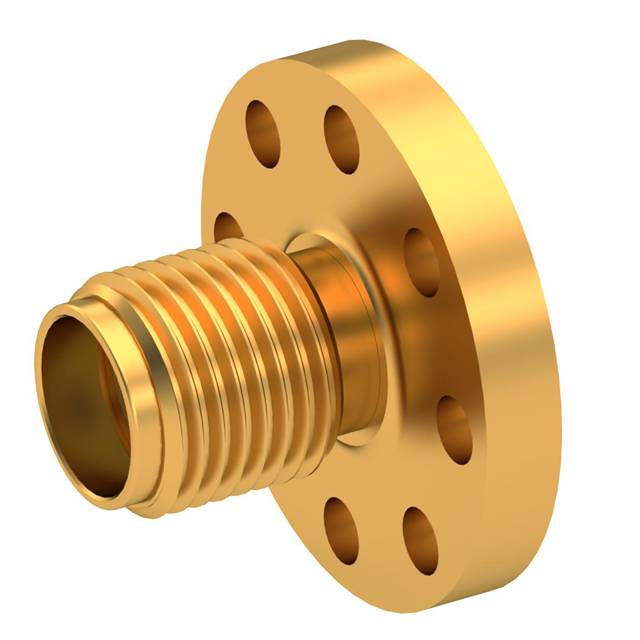

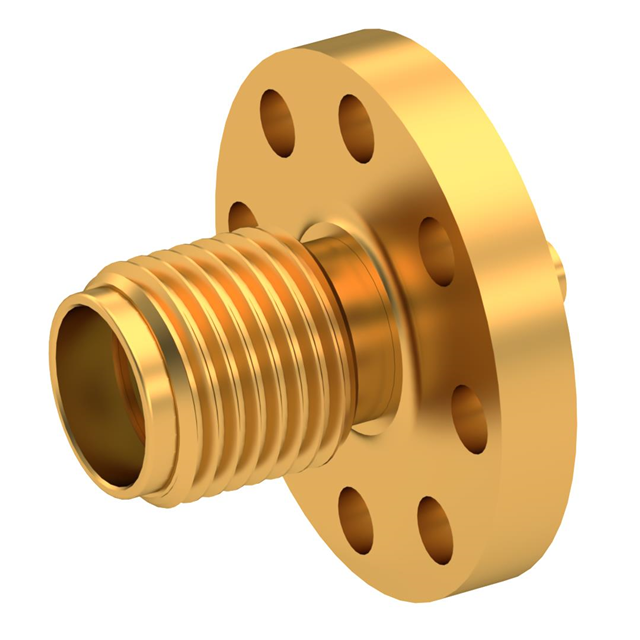

SMA / STRAIGHT JACK RECEPTACLE F
| Part | Mating Cycles | Body Finish | Operating Temperature [Min] | Operating Temperature [Max] | Body Material | Center Contact Plating | Dielectric Material | Frequency - Max [Max] | Contact Termination | Mounting Type | Impedance | Connector Type | Housing Color | Center Contact Material | Connector Style | Mounting Feature | Fastening Type | Number of Ports | Shield Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | 500 | Gold | -65 ░C | 165 °C | Stainless Steel | Gold | Polytetrafluoroethylene (PTFE) | 18 GHz | Solder | Panel Mount | 50 Ohms | Female Socket Jack | Gold | Beryllium Copper | SMA | Flange | Threaded | 1 | Screw |
 Radiall USA, Inc. | 500 | Gold | -65 ░C | 165 °C | Stainless Steel | Gold | Polytetrafluoroethylene (PTFE) | 18 GHz | Solder | Panel Mount | 50 Ohms | Female Socket Jack | Gold | Beryllium Copper | SMA | Flange | Threaded | 1 | Screw |
