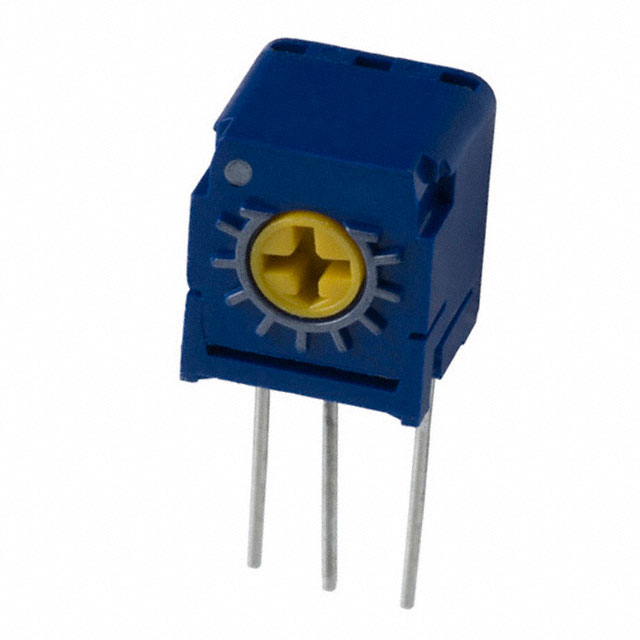

CT6ETH Series

Manufacturer: Nidec Components Corporation

Catalog

TRIMMER 1K OHM 0.5W PC PIN SIDE

Part	Resistive Material	Temperature Coefficient	Mounting Type	Adjustment Type	Number of Turns	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Termination Style	Power (Watts)	Power (Watts)	Resistance	Tolerance
Nidec Components Corporation CT-6ETH102	Cermet	100 ppm/°C	Through Hole	Side Adjustment	1	0.323 in	7 mm	8.2 mm	0.276 in	PC Pins	0.5 W	0.5 W	1000 Ohms	10 %
Nidec Components Corporation CT-6ETH201	Cermet	100 ppm/°C	Through Hole	Side Adjustment	1	0.323 in	7 mm	8.2 mm	0.276 in	PC Pins	0.5 W	0.5 W	200 Ohms	10 %
Nidec Components Corporation CT-6ETH205	Cermet	100 ppm/°C	Through Hole	Side Adjustment	1	0.323 in	7 mm	8.2 mm	0.276 in	PC Pins	0.5 W	0.5 W	2 MOhms	10 %
Nidec Components Corporation CT-6ETH502	Cermet	100 ppm/°C	Through Hole	Side Adjustment	1	0.323 in	7 mm	8.2 mm	0.276 in	PC Pins	0.5 W	0.5 W	5 kOhms	10 %
Nidec Components Corporation CT-6ETH203	Cermet	100 ppm/°C	Through Hole	Side Adjustment	1	0.323 in	7 mm	8.2 mm	0.276 in	PC Pins	0.5 W	0.5 W	20 kOhms	10 %
Nidec Components Corporation CT-6ETH200	Cermet	250 ppm/°C	Through Hole	Side Adjustment	1	0.323 in	7 mm	8.2 mm	0.276 in	PC Pins	0.5 W	0.5 W	20 Ohms	10 %
Nidec Components Corporation CT-6ETH500	Cermet	100 ppm/°C	Through Hole	Side Adjustment	1	0.323 in	7 mm	8.2 mm	0.276 in	PC Pins	0.5 W	0.5 W	50 Ohms	10 %
Nidec Components Corporation CT-6ETH101	Cermet	100 ppm/°C	Through Hole	Side Adjustment	1	0.323 in	7 mm	8.2 mm	0.276 in	PC Pins	0.5 W	0.5 W	100 Ohms	10 %
Nidec Components Corporation CT-6ETH105	Cermet	100 ppm/°C	Through Hole	Side Adjustment	1	0.323 in	7 mm	8.2 mm	0.276 in	PC Pins	0.5 W	0.5 W	1 MOhms	10 %
Nidec Components Corporation CT-6ETH204	Cermet	100 ppm/°C	Through Hole	Side Adjustment	1	0.323 in	7 mm	8.2 mm	0.276 in	PC Pins	0.5 W	0.5 W	200000 Ohms	10 %
