EDS03 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

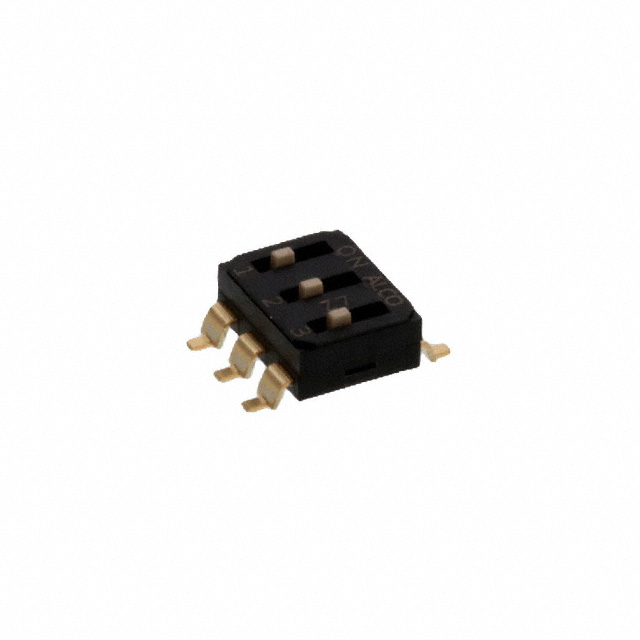

SWITCH SLIDE DIP SPST 0.025A 24V
| Part | Body Material | Mechanical Life | Length [x] | Length [x] | Electrical Life | Height Above Board | Height Above Board | Contact Finish | Circuit | Voltage Rating | Actuator Level | Pitch | Pitch | Current Rating (Amps) | Termination Style | Actuator Type | Contact Material | Washable | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Polyamide (PA) Nylon | 2000 Cycles | 7.52 mm | 0.296 in | 2000 Steps | 3.8 mm | 0.15 in | Gold | SPST | 24 VDC | Raised | 2.54 mm | 0.1 " | 25 mA | Gull Wing | Slide (Standard) | Copper Alloy | Surface Mount | 85 °C | -20 ░C |
