ERA.3S Series

Manufacturer: LEMO

Catalog

CONN CIRC RCPT 18P GOLD SLDR CUP

Part	Connector Type	Insert Material	Color	Shielding	Fastening Type	Shell Material	Orientation	Number of Positions	Mounting Feature	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Mounting Type	Shell Size - Insert	Contact Finish - Mating	Ingress Protection	Current Rating (Amps)	Material Flammability Rating	Primary Material	Shell Finish	Shell Size - Insert [custom]	Shell Size - Insert [custom]	Body Material	Includes	Body Finish	Dielectric Material	Mating Cycles	Center Contact Plating	Center Contact Material	Housing Color	Contact Termination	Number of Ports	Shield Termination	Cable Group	Connector Style	Impedance
LEMO ERA.3S.318.CLL	Receptacle Female Sockets and Male Pins	Polyetheretherketone (PEEK)	Silver	Shielded	Push-Pull	Brass	Keyed	18	Bulkhead - Rear Side Nut	-55 C	250 °C	Brass Bronze	Panel Mount	318	Gold	IP50 - Dust Protected	6 A	UL94 V-0	Metal	Chrome
LEMO ERA.3S.304.CLL	Receptacle Female Sockets and Male Pins	Polyetheretherketone (PEEK)	Silver	Shielded	Push-Pull	Brass	Keyed	4	Bulkhead - Rear Side Nut	-55 C	250 °C	Brass Bronze	Panel Mount	304	Gold	IP50 - Dust Protected	18 A	UL94 V-0	Metal	Chrome
LEMO ERA.3S.302.CLL	Receptacle Female Sockets and Male Pins	Polyetheretherketone (PEEK)	Silver	Shielded	Push-Pull	Brass	Keyed	2	Bulkhead - Rear Side Nut	-55 C	250 °C	Brass Bronze	Panel Mount	302	Gold	IP50 - Dust Protected	23 A	UL94 V-0	Metal	Chrome
LEMO ERA.3S.405.CTL	Receptacle Female Sockets	Polytetrafluoroethylene (PTFE)	Silver	Shielded	Push-Pull	Brass	Keyed	1	Bulkhead - Rear Side Nut	-55 C	250 °C	Bronze	Panel Mount	405	Gold	IP50 - Dust Protected	8 A		Metal	Chrome
LEMO ERA.3S.312.CLL	Receptacle Female Sockets and Male Pins	Polyetheretherketone (PEEK)	Silver	Shielded	Push-Pull	Brass	Keyed	12	Bulkhead - Rear Side Nut	-55 C	250 °C	Brass Bronze	Panel Mount	312	Gold	IP50 - Dust Protected	8 A	UL94 V-0	Metal	Chrome
LEMO ERA.3S.306.CLL	Receptacle Female Sockets and Male Pins	Polyetheretherketone (PEEK)	Silver	Shielded	Push-Pull	Brass	Keyed	6	Bulkhead - Rear Side Nut	-55 C	250 °C	Brass Bronze	Panel Mount	306	Gold	IP50 - Dust Protected	14 A 18 A	UL94 V-0	Metal	Chrome

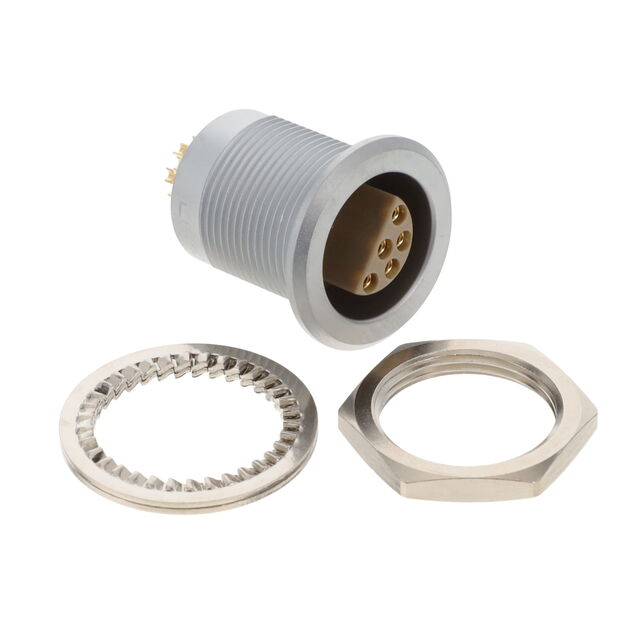

LEMO ERA.3S.310.CLL	Receptacle Female Sockets and Male Pins	Polyetheretherketone (PEEK)	Silver	Shielded	Push-Pull	Brass	Keyed	10	Bulkhead - Rear Side Nut	-55 C	250 °C	Brass Bronze	Panel Mount	310	Gold	IP50 - Dust Protected	9 A	UL94 V-0	Metal	Chrome
LEMO ERA.3S.307.CLL	Receptacle Female Sockets and Male Pins	Polyetheretherketone (PEEK)	Silver	Shielded	Push-Pull	Brass	Keyed	7	Bulkhead - Rear Side Nut	-55 C	250 °C	Brass Bronze	Panel Mount		Gold	IP50 - Dust Protected	12 Amps	UL94 V-0	Metal	Chrome	307
LEMO ERA.3S.316.CLL	Receptacle Female Sockets and Male Pins	Polyetheretherketone (PEEK)	Silver	Shielded	Push-Pull	Brass	Keyed	16	Bulkhead - Rear Side Nut	-55 C	250 °C	Brass Bronze	Panel Mount		Gold	IP50 - Dust Protected	7 A	UL94 V-0	Metal	Chrome		316
LEMO ERA.3S.650.CTL	Receptacle Female Socket				Push-Pull				Bulkhead - Rear Side Nut	-55 C	250 °C		Panel Mount			IP50 - Dust Protected							Brass	1 Connector 1 Lockwasher 1 Nut	Chrome	Polytetrafluoroethylene (PTFE)	1000	Gold	Brass	Silver	Solder Cup	1	Solder	8232A 9222 9267 Belden 8215	Triaxial	50 Ohms
