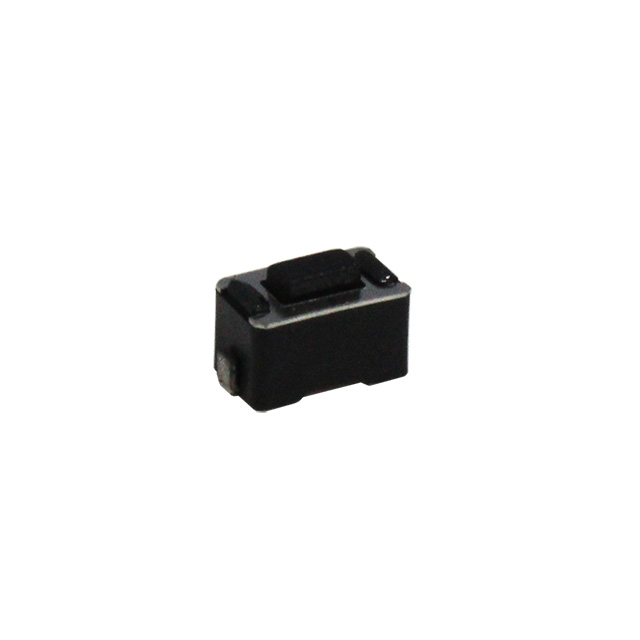

CS11014 Series

Catalog

SWITCH TACTILE SPST-NO 0.05A 50V

Part	Actuator Material	Switch Travel	Mounting Type	Actuator Type	Termination Style	Actuator Height off PCB, Vertical [z]	Operating Temperature [Max]	Operating Temperature [Min]	Outline [x]	Outline [y]	Circuit	Switch Function	Actuator Orientation	Contact Rating @ Voltage	Operating Force	Illumination
CIT Relay and Switch CS11014.3F260	Polyamide (PA6T) Nylon 6T	0.25 mm	Surface Mount	Rectangular Button	Gull Wing	4.3 mm	85 °C	-40 C	6.05 mm	3.5 mm	SPST-NO	Off-Mom	Top Actuated	0.05 A 50 VDC	260 gf	Non-Illuminated
CIT Relay and Switch CS11014.3F260J	Polyamide (PA6T) Nylon 6T	0.25 mm	Surface Mount	Rectangular Button	J Lead	4.3 mm	85 °C	-40 C	6.05 mm	3.5 mm	SPST-NO	Off-Mom	Top Actuated	0.05 A 50 VDC	260 gf	Non-Illuminated
CIT Relay and Switch CS11014.3F160	Polyamide (PA6T) Nylon 6T	0.25 mm	Surface Mount	Rectangular Button	Gull Wing	4.3 mm	85 °C	-40 C	6.05 mm	3.5 mm	SPST-NO	Off-Mom	Top Actuated	0.05 A 50 VDC	160 gf	Non-Illuminated
CIT Relay and Switch CS11014.3F160J	Polyamide (PA6T) Nylon 6T	0.25 mm	Surface Mount	Rectangular Button	J Lead	4.3 mm	85 °C	-40 C	6.05 mm	3.5 mm	SPST-NO	Off-Mom	Top Actuated	0.05 A 50 VDC	160 gf	Non-Illuminated
