076150 Series

Manufacturer: Molex

Catalog

BOARD-TO-BOARD AND BACKPLANE CONNECTOR ROHS

Part	Connector Type	Material Flammability Rating	Color	Voltage Rating	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Connector Style	Number of Positions Loaded	Contact Finish	Number of Positions	Number of Columns	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Number of Rows [custom]	Contact Layout, Typical	Contact Layout, Typical	Pitch [x]	Pitch [x]
Molex 0761501024	Receptacle Female Sockets	UL94 V-0	Black	30 VDC	Board Edge Right Angle Through Hole	0.76 Ám	30 Áin	Impact	All	Gold	252	14	Press-Fit	85 °C	-55 °C	18	84 Differential Pairs
Molex 0761504016	Receptacle Female Sockets	UL94 V-0	Black	30 VDC	Board Edge Right Angle Through Hole	0.76 Ám	30 Áin		All	Gold	288	16	Press-Fit	85 °C	-55 °C	18		96 Differential Pairs
Molex 0761505024	Receptacle Female Sockets	UL94 V-0	Black	30 VDC	Board Edge Right Angle Through Hole	0.76 Ám	30 Áin		All	Gold	252	14	Press-Fit	85 °C	-55 °C	18	84 Differential Pairs		0.053 in	1.35 mm
Molex 0761505326	Receptacle Female Sockets	UL94 V-0	Black	30 VDC	Board Edge Right Angle Through Hole	0.76 Ám	30 Áin		All	Gold	288	16	Press-Fit	85 °C	-55 °C	18		96 Differential Pairs	0.053 in	1.35 mm
Molex 0761500016	Receptacle Female Sockets	UL94 V-0	Black	30 VDC	Board Edge Right Angle Through Hole	0.76 Ám	30 Áin	Impact	All	Gold	288	16	Press-Fit	85 °C	-55 °C	18		96 Differential Pairs
Molex 0761503116	Receptacle Female Sockets	UL94 V-0	Black	30 VDC	Board Edge Right Angle Through Hole	0.76 Ám	30 Áin	Guide Left Impact	All	Gold	288	16	Press-Fit	85 °C	-55 °C	18		96 Differential Pairs	0.053 in	1.35 mm

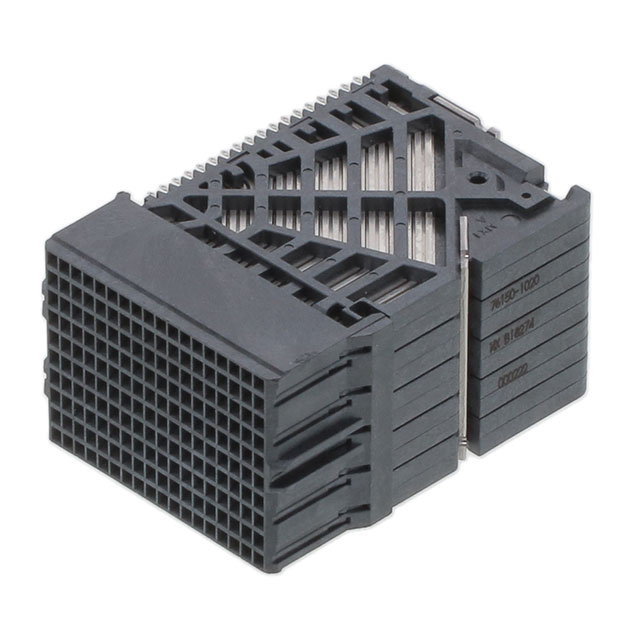

Molex 0761501020	Receptacle Female Sockets	UL94 V-0	Black	30 VDC	Board Edge Right Angle Through Hole	0.76 Ám	30 Áin	Impact	All	Gold	180	10	Press-Fit	85 °C	-55 °C	18		60 Ground
Molex 0761504020	Receptacle Female Sockets	UL94 V-0	Black	30 VDC	Board Edge Right Angle Through Hole	0.76 Ám	30 Áin		All	Gold	180	10	Press-Fit	85 °C	-55 °C	18		60 Ground

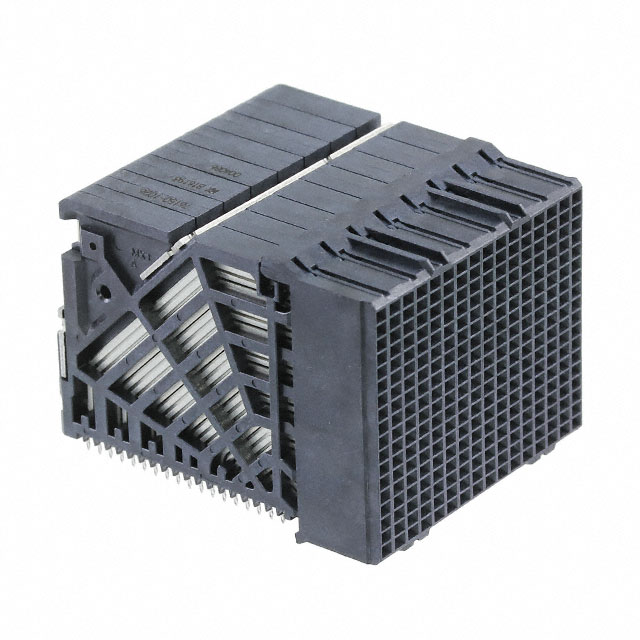

Molex 0761501026	Receptacle Female Sockets	UL94 V-0	Black	30 VDC	Board Edge Right Angle Through Hole	0.76 Ám	30 Áin	Impact	All	Gold	288	16	Press-Fit	85 °C	-55 °C	18		96 Differential Pairs
Molex 0761504026	Receptacle Female Sockets	UL94 V-0	Black	30 VDC	Board Edge Right Angle Through Hole	0.76 Ám	30 Áin		All	Gold	288	16	Press-Fit	85 °C	-55 °C	18		96 Differential Pairs
