CAR3012 Series
Manufacturer: OmniOn Power™
Beta
⌘K

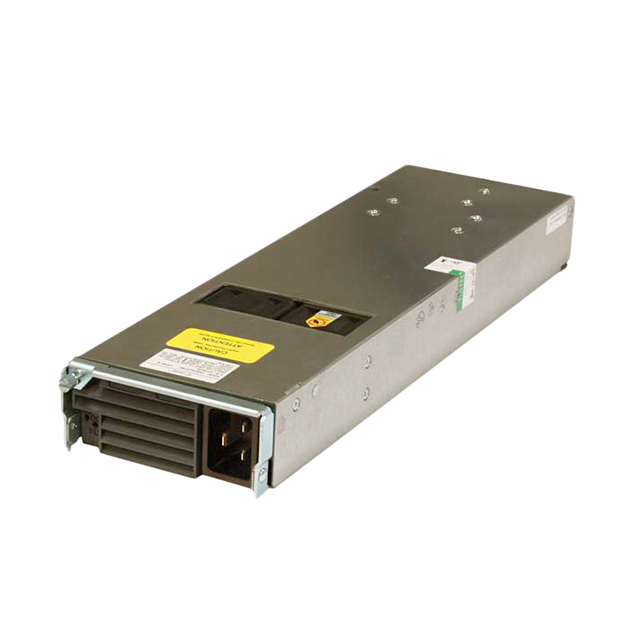

AC/DC CONVERTER 12V 3000W
| Part | Approval Agency | Voltage - Isolation | Voltage - Output 1 | Applications | Number of Outputs | Power (Watts) | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Type | Features | Current - Output 1 | Minimum Load Required | Efficiency | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 OmniOn Power™ | CE | 3000 V | 12 V | ITE (Commercial) | 1 | 3000 W | 40.9 mm | 4 " | 101.6 mm | 401.8 mm | 15.82 " | 1.61 " | Front End | Hot Swappable I2C Interface Load Sharing PFC PMBus™ Remote On/Off Remote Sense Standby Output Universal Input | 250 A | 93 % | 70 °C | -10 °C | Rack Mount | |
OmniOn Power™ | CE | 3000 V | 12 V | ITE (Commercial) | 1 | 3000 W | 40.9 mm | 4 " | 101.6 mm | 401.8 mm | 15.82 " | 1.61 " | Front End | Hot Swappable I2C Interface Load Sharing PFC PMBus™ Remote On/Off Remote Sense Standby Output Universal Input | 250 A | 93 % | 70 °C | -10 °C | Rack Mount |
