8325 Series
Manufacturer: Belden Inc.
Beta
⌘K

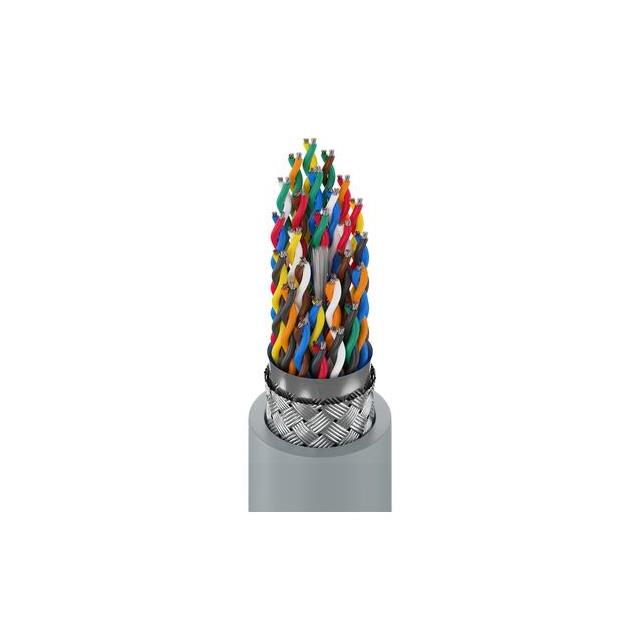

MULTI-PAIR 50COND 22AWG
| Part | Shield Material | Shield Coverage | Number of Conductors | Cable Type | Length | Length | Conductor Strand [custom] | Conductor Strand [custom] | Ratings | Conductor Insulation | Wire Gauge | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness [custom] | Conductor Material | Usage | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket Color | Jacket (Insulation) Material | Voltage | Operating Temperature [Max] | Operating Temperature [Min] | Shield Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum Copper Tinned | 65 % 100 % | 50 | Multi-Pair | 304.8 m | 1000 ft | 30 AWG | 7 | UL Style 2464 | Poly-Vinyl Chloride (PVC) | 22 AWG | 1.143 mm | 0.045 in | Copper Tinned | Computer | 15.75 mm | 0.62 in | Chrome | Poly-Vinyl Chloride (PVC) | 300 VDC | 80 °C | -30 ░C | Braid Foil |
