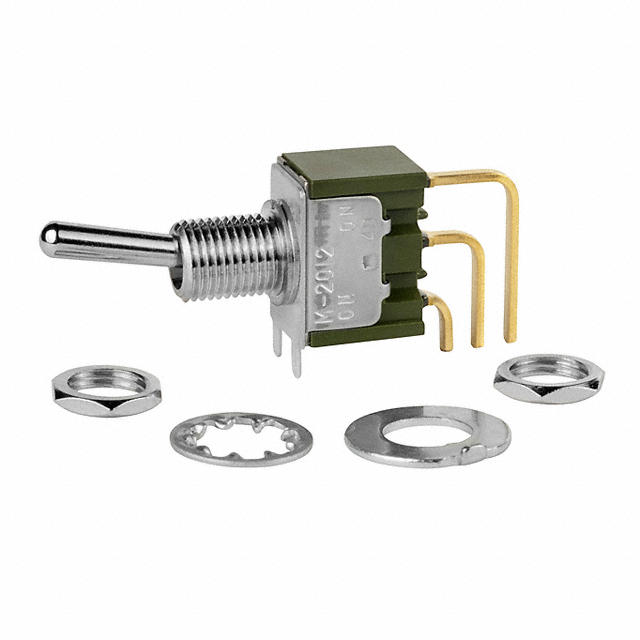

M2012SA Series

Catalog

SWITCH TOGGLE SPDT 6A 125V

Part	Electrical Life	Actuator Material	Voltage Rating - DC	Actuator Type	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Length [x]	Circuit	Current Rating (Amps)	Bushing Thread	Switch Function	Illumination	Mounting Type	Features	Panel Cutout Dimensions [diameter]	Termination Style	Voltage Rating - AC

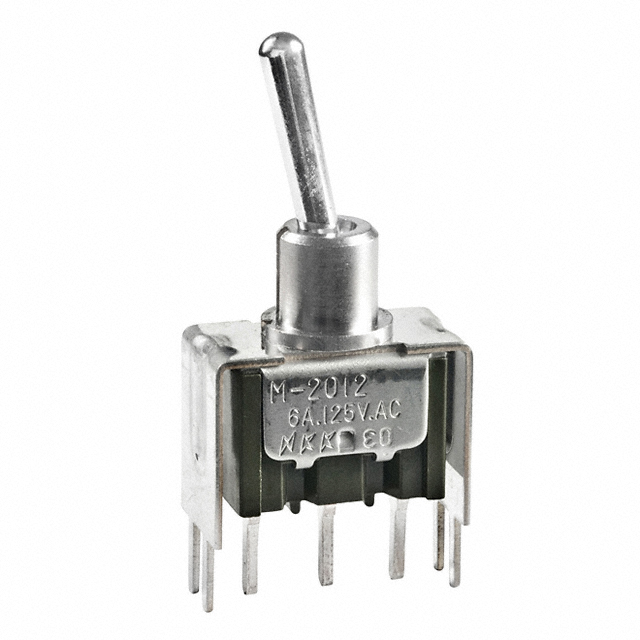

NKK Switches M2012SA2W13	25000 Steps	Brass Chrome Plated	30 V	Standard Round	85 °C	-30 ░C	12.28 mm	SPDT	4 A 6 A	Unthreaded	On-On	Non-Illuminated	Through Hole	Epoxy Sealed Terminals	6.5 mm	PC Pin	125 V
NKK Switches M2012SA2W40	25000 Steps	Brass Chrome Plated	30 V	Standard Round	85 °C	-30 ░C	12.28 mm	SPDT	4 A 6 A	Unthreaded	On-On	Non-Illuminated	Right Angle Through Hole Vertical	Epoxy Sealed Terminals	6.5 mm	PC Pin	125 V
NKK Switches M2012SA1W13-BA	25000 Steps	Brass Chrome Plated	30 V	Standard Round with Cap	85 °C	-30 ░C	13.5 mm	SPDT	4 A 6 A	1/4-40	On-On	Non-Illuminated	Panel Mount	Black Cap	6.5 mm	PC Pin	125 V

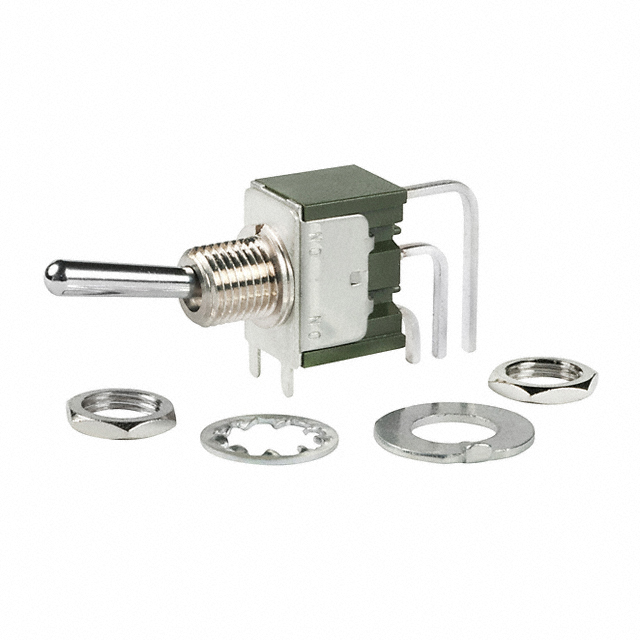

NKK Switches M2012SA1W45	25000 Steps	Brass Chrome Plated	30 V	Standard Round	85 °C	-30 ░C	12.28 mm	SPDT	4 A 6 A	1/4-40	On-On	Non-Illuminated	Panel Mount Right Angle Vertical	Epoxy Sealed Terminals	6.5 mm	PC Pin	125 V

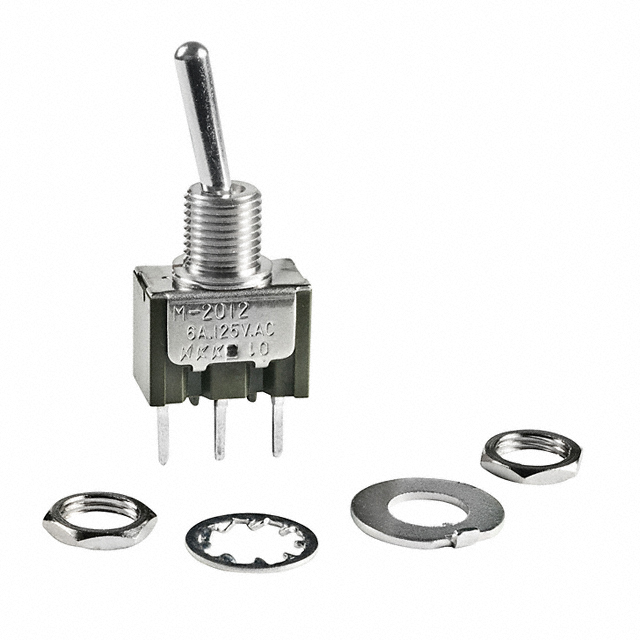

NKK Switches M2012SA1W03	25000 Steps	Brass Chrome Plated	30 V	Standard Round	85 °C	-30 ░C	12.28 mm	SPDT	4 A 6 A	1/4-40	On-On	Non-Illuminated	Panel Mount	Epoxy Sealed Terminals	6.5 mm	PC Pin	125 V
NKK Switches M2012SA1G15	50000 Cycles	Brass Chrome Plated	28 V	Standard Round	85 °C	-30 ░C	12.28 mm	SPDT	0.4 VA	1/4-40	On-On	Non-Illuminated	Panel Mount	Epoxy Sealed Terminals	6.5 mm	PC Pin	28 V
NKK Switches M2012SA2W13-BC	25000 Steps	Brass Chrome Plated	30 V	Standard Round with Cap	85 °C	-30 ░C	12.28 mm	SPDT	4 A 6 A	Unthreaded	On-On	Non-Illuminated	Through Hole	Red Cap	6.5 mm	PC Pin	125 V

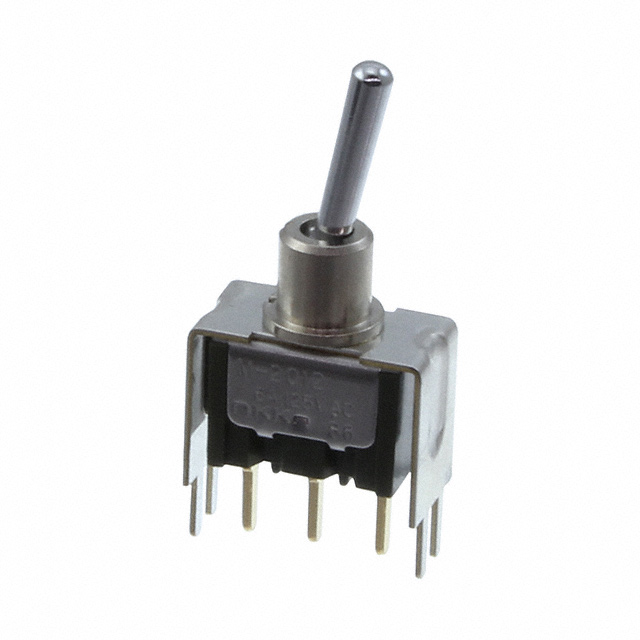

NKK Switches M2012SA2A13	25000 Steps	Brass Chrome Plated	30 V	Standard Round	85 °C	-30 ░C	12.28 mm	SPDT	4 A 6 A	Unthreaded	On-On	Non-Illuminated	Through Hole	Epoxy Sealed Terminals	6.5 mm	PC Pin	125 V

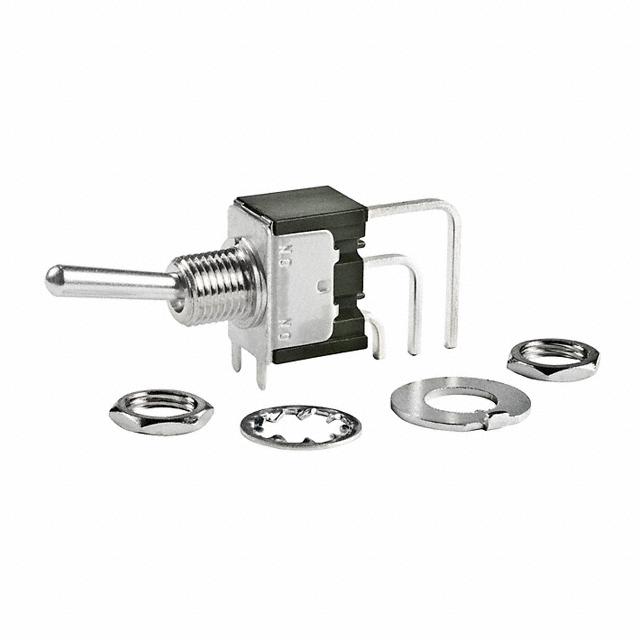

NKK Switches M2012SA1W40	25000 Steps	Brass Chrome Plated	30 V	Standard Round	85 °C	-30 ░C	12.28 mm	SPDT	4 A 6 A	1/4-40	On-On	Non-Illuminated	Panel Mount Right Angle Vertical	Epoxy Sealed Terminals	6.5 mm	PC Pin	125 V
NKK Switches M2012SA1W05
