1744382 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

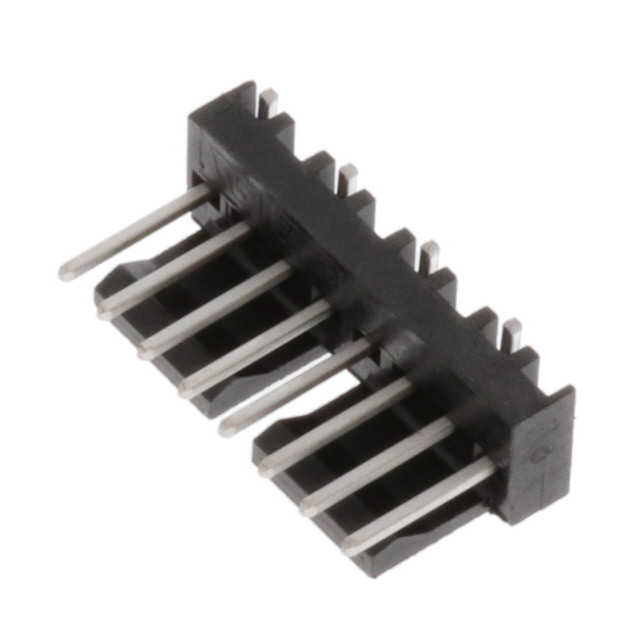

08P MTA100 HDR ASSY,SM,SN, LF
| Part | Mounting Type | Contact Finish - Post | Shrouding | Contact Material | Material Flammability Rating | Number of Rows | Fastening Type | Insulation Height | Insulation Height | Style | Termination | Number of Positions | Contact Length - Mating | Contact Length - Mating | Insulation Material | Insulation Color | Connector Type | Features | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating | Pitch - Mating | Pitch - Mating | Contact Type | Contact Shape | Current Rating (Amps) | Number of Positions Loaded |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Surface Mount | Tin | Shrouded - 1 Wall | Copper Alloy | UL94 V-0 | 1 | Friction Lock | 0.347 in | 8.81 mm | Board to Cable/Wire | Solder | 8 | 7.49 mm | 0.295 in | Nylon Polyamide (PA) | Black | Header | Pick and Place | 105 ░C | -55 °C | 250 VDC | 0.1 in | 2.54 mm | Male Pin | Square | 5 A | All |
