MPM38111 Series
Manufacturer: Monolithic Power Systems Inc.
Beta
⌘K

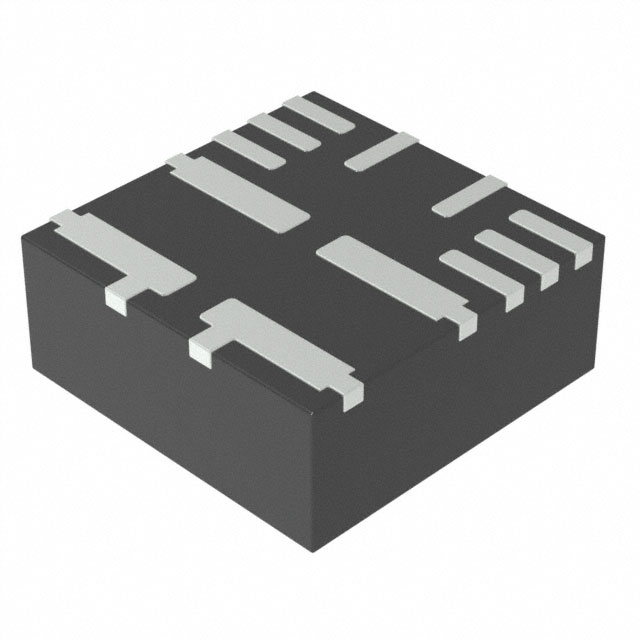

DC/DC POL CONVERTER, ADJUSTABLE, SYNCHRONOUS BUCK, 1MHZ, 2.7V TO 6V IN, 0.608V TO 6V/1A OUT, QFN-14
| Part | Voltage - Input (Min) [Min] | Type | Voltage - Output 1 | Current - Output (Max) | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Voltage - Output 2 | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Voltage - Input (Max) [Max] | Package / Case | Number of Outputs | Applications | Supplier Device Package | Efficiency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Monolithic Power Systems Inc. | 2.7 V | Non-Isolated PoL Module | 1.8 V | 1 A | 125 °C | -40 C | Surface Mount | 1.2 V | 0.16 in | 0.06 in | 4.1 mm | 4.1 mm | 0.16 in | 1.5 mm | 6 V | 14-PowerLFQFN Module | 2 | ITE (Commercial) | 14-QFN (4x4) | 93 % |
 Monolithic Power Systems Inc. | 2.7 V | Non-Isolated PoL Module | 1.8 V | 1 A | 125 °C | -40 C | Surface Mount | 1.2 V | 0.16 in | 0.06 in | 4.1 mm | 4.1 mm | 0.16 in | 1.5 mm | 6 V | 14-PowerLFQFN Module | 2 | ITE (Commercial) | 14-QFN (4x4) | 93 % |
