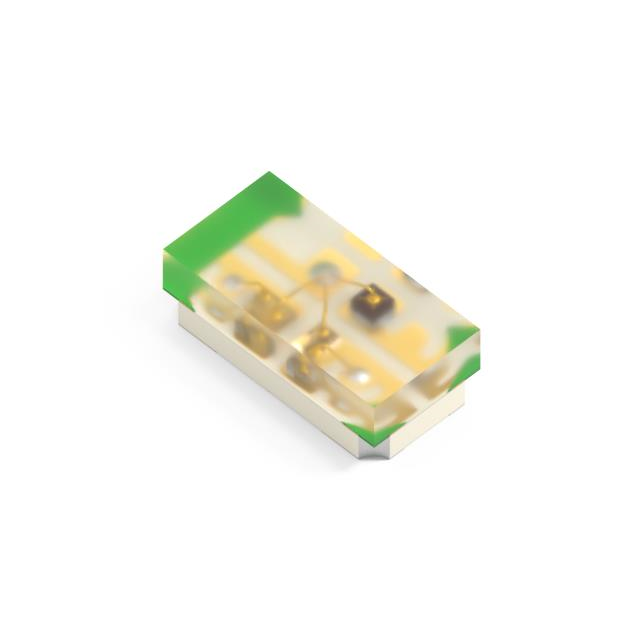

XZCMECBDDGK53 Series
Manufacturer: SunLED
Beta
⌘K
LED RGB CLEAR 4SMD
| Part | Configuration | Height (Max) [z] | Size / Dimension [x] | Size / Dimension [y] | Wavelength - Dominant | Millicandela Rating [custom] | Millicandela Rating [custom] | Millicandela Rating [custom] | Color | Current - Test [custom] | Current - Test [custom] | Current - Test [custom] | Lens Color | Voltage - Forward (Vf) (Typ) [custom] | Voltage - Forward (Vf) (Typ) [custom] | Voltage - Forward (Vf) (Typ) [custom] | Lens Size [y] | Lens Size [x] | Package / Case | Package / Case | Supplier Device Package | Viewing Angle | Wavelength - Peak | Lens Transparency | Lens Style | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SunLED | Common Anode | 0.65 mm | 1.6 mm | 0.8 mm | 465 nm 525 nm 621 nm | 9 mcd | 14 mcd | 69 mcd | Blue Green Red | 2 mA | 2 mA | 2 mA | Colorless | 1.8 V | 2.65 V | 2.65 V | 0.8 mm | 1.6 mm | 1608 Metric | 0603 | 4-SMD | 140 ° | 460 nm 515 nm 630 nm | Clear | Rectangle with Flat Top | Surface Mount |
